We consider fuses and relays in the Renault Kaptur car – 2016, 2017, 2018, 2019, 2020, 2021.
Fuses and relays under the hood of Renault Kaptur

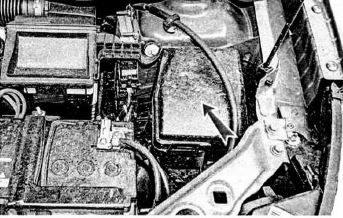

The mounting block under the hood of the car is located on the left side near the pillar and wing.

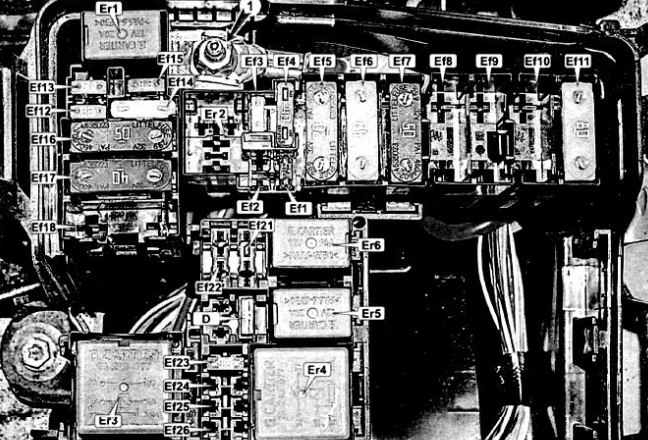

Renault Kaptur fuse box and relay diagram under the hood
Description
| No. | Current, A | Transcript |
| Fuses | ||
| Ef1 | 7.5 | Electrical equipment control unit, battery current sensor |
| Ef2 | Reserve | |
| Ef3 | 25 | ABS/ESP Electronic Stability Program Control Unit |
| Ef4 | 40 | Rear window defogger, exterior mirror defoggers, fuse circuits F38 and F47 |
| Ef5 | 70 | Fuses and relays in the passenger compartment, fuse circuits F5/F23/F24/F25/F26/F27/F42/F44 |
| Ef6 | 80 | Fuses and relays in the passenger compartment |
| Ef7 | 50 | ABS/ESP Electronic Stability Program Control Unit |
| Ef8 | Reserve | |
| Ef9 | 80 | Additional heater*1 |
| Ef10 | 40 | Heated windshield, right side”1 |
| Ef11 | 40 | Heated windshield, left side”1 |
| Ef12 | 30 | Starter*3 |
| 15 | Automatic transmission control unit*2 | |
| Ef13 | 15 | Automatic transmission control unit*3 |
| 30 | Starter *2 | |
| Ef14 | 25 | Electronic engine management system, fuel pump |
| Ef15 | 15 | A/C Compressor Clutch Relay, A/C Compressor Clutch |
| Ef16 | 50 | Cooling system fan |
| Ef17 | 40 | Electric fan for cooling the working fluid of the automatic transmission*3 |
| Ef18 | 80 | Electric power steering pump |
| Ef19-Ef22 | Reserve | |
| Ef23 | 15 | Engine management system |
| Ef24-Ef26 | Reserve | |
| *1 Depending on the configuration. *2 With 1.6N4M engine. *3 With 2.0 F4R engine. | ||
| Relay | ||
| Er1 | 20 | Starter relay*2 |
| Er1 | 20 | Reverse Light Relay”1 |
| Er2 | 20 | Alarm Siren Relay’3 |
| Er3 | 20»1/35’2 | Starter relay»1, electric fan relay for cooling the working fluid*2 |
| Er4 | 35 | Engine Management System Main Relay |
| Er5 | 20 | Air conditioning compressor electromagnetic clutch relay |
| Er6 | 20 | Fuel pump relay Kaptur |
| *1 With 1.6 H4M engine. *2 With 2.0 F4R engine. *3 Depending on the configuration. | ||
1 — +AKB; Ef1 — Ef3, Ef12 — Ef14, Ef23 — Ef26 — MINI type; Ef4, Ef15, Ef21, Ef22 — MIDI type; Ef5 — Ef11, Ef 16 — Ef18 — MAXI type; Er1 — Er9 — relay; D — diode of the electromagnetic clutch of the air conditioner compressor
Fuses and relays in the Renault Kaptur cabin

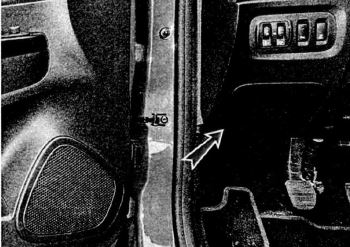

The mounting block in the car’s interior is located on the driver’s side at the bottom of the control panel. To access it, you need to remove the protective cover.

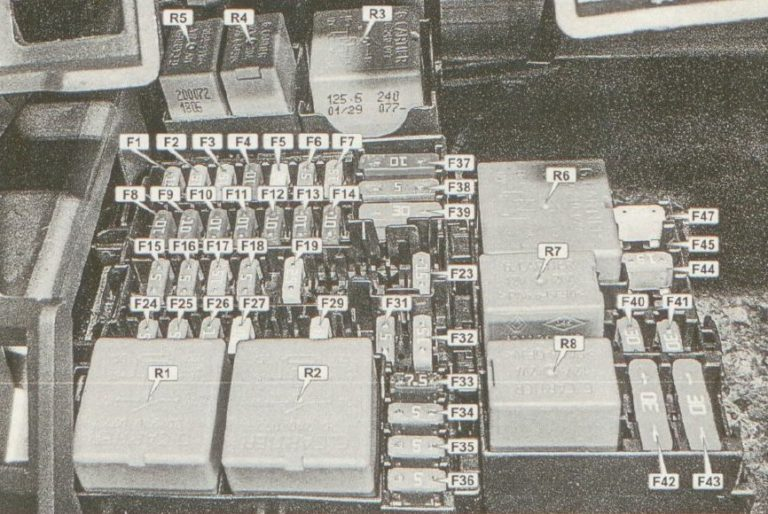

Renault Kaptur interior fuse box and relay diagram
Description
| No. | Current, A | Description |
| Fuses | ||
| F1 | 15 | Cruise control, rear window heating relay, seat belt sensor, electric headlight range control, additional airbag heater |
| F2 | 15 | Front and rear windscreen washers, rear windscreen wiper |
| F3 | 15 | Heated front seats, audio system |
| F4 | 10 | Daytime running lights |
| F5 | 5/20* | Low beam headlights |
| F6 | 5 | Engine start button, rear window lock relay, light/rain sensor |
| F7 | 15 | Sound signal |
| F8 | 10 | High beam (left headlight)* |
| F9 | 10 | High beam (right headlight)* |
| F10 | 10* | Low beam (right headlight)* |
| 25* | Fog lights/daytime running lights* | |
| F11 | 10 | Low beam (left headlight)* |
| F12 | 10 | Front dimensions* |
| F13 | 10 | Rear lights, number plate lights, instrument lighting |
| F14 | 10 | Brake lights |
| F15 | 5 | Engine control unit (ECU), fuel pump relay (winding), starter relay (winding), additional electrical equipment control unit* |
| F16 | 5 | Airbag control unit |
| F17 | 15 | Automatic transmission control unit, reversing lights, 4WD control unit |
| F18 | 5 | Power steering pump |
| F19 | 25 | High beam headlights, side direction indicators, horn |
| F20 | 25 | Additional electrical control unit*, fog lights/daytime running lights*, rear lights’ |
| F21 | 25 | Instrument lighting, number plate lights, additional electrical equipment control unit |
| F22 | 30 | Additional electrical control unit*, front windscreen wiper* |
| F23 | 15 | Radio, navigation control unit, diagnostic connector |
| F24 | 15 | Electrical equipment control unit, fuse circuits f6, f34, f36 |
| F25 | 15 | Steering wheel lock, additional electrical equipment control unit |
| F26 | 15 | Turn signals, electrical equipment control unit |
| F27 | 20 | Door locks |
| F28 | 15 | additional electrical equipment control unit*, unloading relay* |
| F29 | 20 | Additional socket |
| F30 | 15 | additional electrical equipment control unit*, sound signal* |
| F31 | 5 | Instrument panel |
| F32 | 15 | Cigarette lighter fuse Renault Kaptur |
| F33 | 7.5 | Rear fog lights |
| F34 | 5 | Electrically adjustable exterior mirrors |
| F35 | 5 | Heated exterior mirrors |
| F36 | 5 | ABS, Electronic Stability Program (ESP) |
| F37 | 10 | Interior light, glove compartment light, luggage compartment light, auxiliary equipment relay, climate control unit |
| F38 | 5 | 4WD control unit |
| F39 | 30 | Front windshield wiper |
| F40 | 30 | Rear windows |
| F41 | 30 | Front passenger door window lifter |
| F42 | 30 | Air conditioning fan |
| F43 | 30 | Driver’s window lifter |
| F44 | Reserve | |
| F45 | 15 | Audio system |
| F46 | Reserve | |
| F47 | 20 | Rear window heating |
| * Depends on the configuration. | ||
| Relay | ||
| R1 | 35 | Unloading relay 2 |
| R2 | 35 | Air conditioning fan relay |
| R3 | 35 | Door and front passenger window lift relay |
| R4 | 20 | Additional equipment relay |
| R5 | 20 | Unloading relay 1 |
| R6 | 35 | Rear window lifter lock relay |
| R7 | 20 | Driver’s window relay |
| R8 | 20 | Rear window heating relay |
| F1-F36, F40-F48 — Mini type, F37-F39 — Maxi type, R1-R5 — electrical equipment switching relay. | ||
Renault Kaptur fuses and relays. Renault Kaptur fuse diagram.
