We consider fuses and relays in the Renault Clio 4th generation car – 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019.
Fuses in the passenger compartment of Renault Clio 4

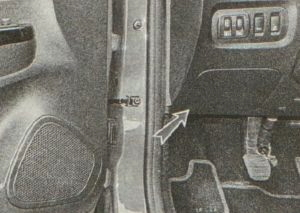

The fuse box in the passenger compartment is located in the lower left part of the control panel. The box is covered with a protective cover.

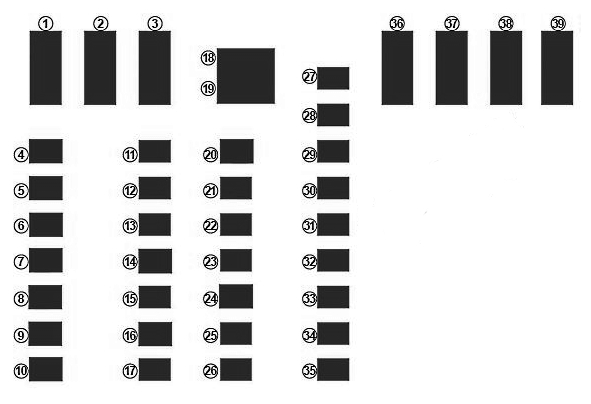

Renault Clio 4 Interior Fuse Box Diagram
Description
| 1 | Windscreen wiper, steering column switches |
| 2 | Front left daytime running lights, right side lights, left high beam headlight, right low beam headlight, front fog lights |
| 3 | Interior lighting, number plate lighting, fog lights |
| 4 | Right side lights, rear side lights |
| 5 | Left side lights, front side lights |
| 6 | Low beam, front right daytime running light, left side lights, right high beam |
| 7 | Low beam headlight |
| 8 | Right high beam headlight |
| 9 | Left high beam headlight, steering |
| 10 | Steering column controls, speed limiter/cruise control, interior rearview mirror, seat belt warning module, parking sensor, auxiliary heating, headlight range adjustment, rear window defroster |
| 11 | Central door lock, rain and light sensor, steering wheel angle sensor, car start button, electric rear windows |
| 12 | Interior light, trunk light, air conditioning, electric windows |
| 13 | ABS-ESC, brake switch |
| 14 | Steering column controls, brake switch |
| 15 | Beep |
| 16 | Rear fog lights |
| 17 | Cigarette lighter fuse |
| 18 | Radio and multimedia, diagnostic connector |
| 19 | Power steering |
| 20 | GPL |
| 21 | Airbag, electric steering column lock |
| 22 | Injection, start, fuel module (fuel pump fuse Renault Clio 4) |
| 23 | Brake switch, rear window wiper, interior ECU |
| 24 | Daytime running lights |
| 25 | Electric headlight adjustment, rear window, heating, parking sensor, cruise control, car radio, heated seats, seat belt warning |
| 26 | Automatic transmission |
| 27 | Reversing light, rear wiper, interior ECU, automatic transmission |
| 28 | Dashboard |
| 29 | Steering Column Controls, Alarm |
| 30 | Air conditioning, steering column controls, energy ECU |
| 31 | Windscreen wipers, rear reversing lights, energy control unit |
| 32 | Central locking of opening elements |
| 33 | Direction indicators |
| 34 | Interior ECU, hands-free access |
| 35 | interior lighting, electric windows, air conditioning, electric rear view mirrors, brake lights, ABS system, ECU |
| 36 | Towbar connector – depends on the configuration |
| 37 | Heated seats – depends on the configuration |
| 38 | Rear window heating – depends on the configuration |
| 39 | Electric rear view mirrors – depends on the configuration |
Fuses and relays under the hood of Renault Clio 4

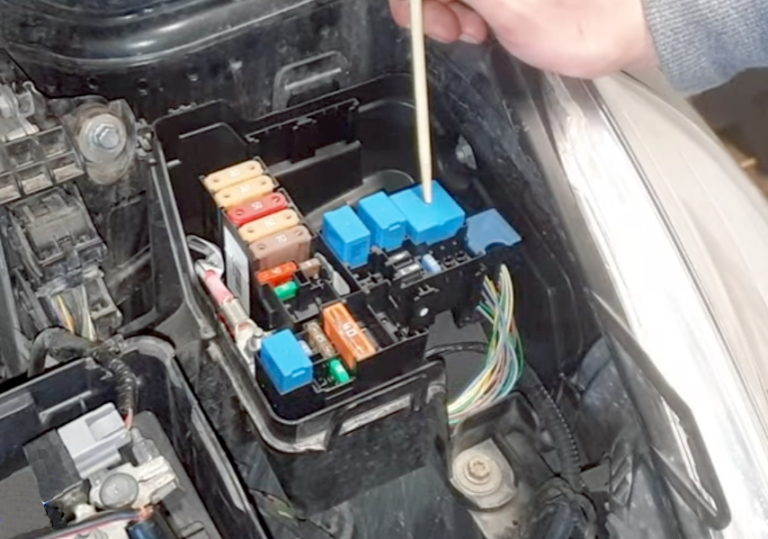

The fuse and relay mounting block in the engine compartment is located on the left side between the battery and the car wing. The block is covered with a protective cover.

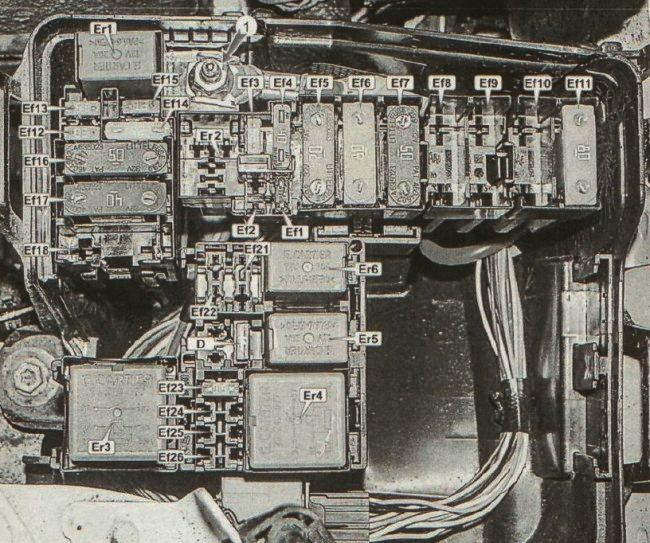

Fuse and relay box diagram under the hood of Renault Clio 4
Description
| Ef1 | 5A Washer nozzle heating 7.5A Electrical equipment control unit |
| Ef2 | Reserve |
| Ef3 | 25/30A ABS/ESP Electronic Stability Program Control Unit |
| Ef4 | 40A Rear Window Defogger, Exterior Mirror Defoggers, Fuse Circuits F38 and F47 |
| Ef5 | 20A/70A Passenger compartment fuse and relay box, fuse circuits F5/ F23/ F24/ F25/ F26/ F27/ F42/ F44 |
| Ef6 | 80A Passenger compartment fuse and relay box, Heater heating element relay |
| Ef7 | 50A ABS/ESP stability control unit / 50A Power supply for fuse F7, F9 in the passenger compartment unit |
| Ef8 | Reserve |
| Ef9 | 80A Additional heater |
| Ef10 | 40A Heated windscreen, right side |
| Ef11 | 40A Heated windscreen, left side |
| Ef12 | 30A Starter |
| Ef13 | 15A Automatic transmission control unit |
| Ef14 | 25A Injection ECU and engine circuit protection, power supply for fuse F5, engine injectors, fuel gauge, fuel pump, ignition coils |
| Ef15 | 15A A/C Compressor Clutch Relay, A/C Compressor Clutch |
| Ef16 | 50A Electric cooling fan |
| Ef17 | 40A Electric fan for cooling the working fluid of automatic transmission |
| Ef18 | 80A Electric Power Steering Pump |
| Ef19 | Reserve |
| Ef20 | Reserve |
| Ef21 | Reserve |
| Ef22 | Reserve |
| Ef23 | 15A Engine Management System, Fan Control Unit, A/C Compressor Relay Control. |
| Ef24 | Reserve |
| Ef25 | Reserve |
| Ef26 | Reserve |
| D | AC Compressor Clutch Diode |
Relay
| Er1 | Starter relay |
| Er1 | Reverse light relay |
| Er2 | Security alarm siren relay |
| Er3 | Starter relay |
| Er3 | Cooling Fan Relay |
| Er3 | Reverse light relay |
| Er4 | Engine Management System Main Relay |
| Er5 | Air conditioning compressor electromagnetic clutch relay |
| Er6 | Fuel pump relay |
