We consider fuses and relays in the Renault Dokker car – 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 years of manufacture.

Fuses and relays in the Renault Dokker cabin

The fuse box in the passenger compartment is located in the lower left part of the control panel. The box is covered with a protective cover.

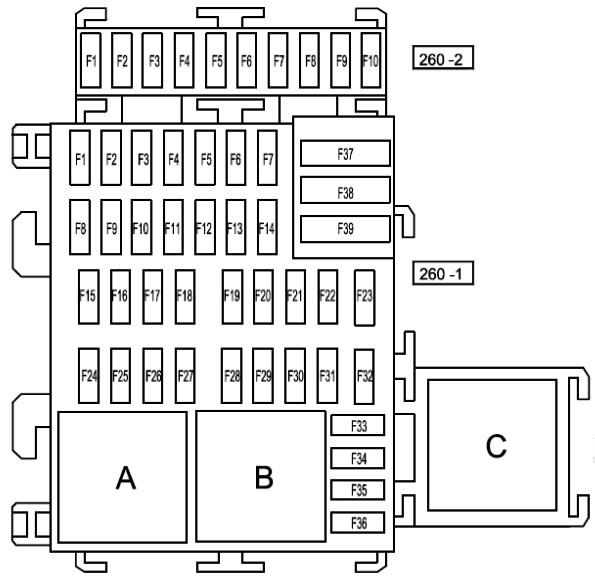

Interior fuse box and relay diagram

Description

260-1

F115A Water Pump
F27.5A Left high beam headlight
F37.5A Right high beam headlight
F47.5A Left low beam headlight
F57.5A Right low beam headlight
F65A Side lights
F75A Cruise control and speed limiter switch (1081), Electronic stability control switch (1106), Central locking/hazard warning lights switch (1391), Economy mode switch (1629), Number plate light (166) —
F815A Rear auxiliary connector
F97.5A Rear Fog Light
F1010/15A Sound signal and sound warnings
F1120A Central locking, door locks
F125A Electronic Stability Control (ESC) and ABS
F1310A Interior Lighting
F147.5A Automatic transmission ECU, Parking control system ECU, Rear light
F1515A Windscreen wipers and washers
F1615A Audio system, heated seats
F177.5A Daytime Running Lights (Low Beam)
F187.5A Stop lights
F195A injection ECU, fuel pump relay, starter relay
F205A Airbags
F215A Speed ​​limiter and speed controller switch (1081), parking control system control unit (1222), seat belt reminder unit (1601), rear window heating relay control (235)
F225A Power Steering
F2320A Trailer
F2415A Power Supply Circuits Fuse (F12-F13)
F25Reserve
F2615A Direction indicators and hazard warning lights
F2720A Steering column switches
F28Reserve
F2925A Fog lights
F30Reserve
F315A Instrument cluster
F327.5A Car interior ventilation
F3315A Cigarette Lighter
F3415A Diagnostic connector (225), audio system (261)
F355A Electric Mirrors
F3610A Fog lights
F3730A Starter
F3830A Windscreen wipers and washers
F3940A Air conditioning system

260-2

F130A Window Lifters
F25A Electric mirrors
F330A Window lifters
F45A BCM
F5Reserve
F6Reserve
F7Reserve
F825A Window lifters
F920A Air conditioning system
F1015A Additional socket

Relay

  • A – Cold air supply fan relay (233)
  • B – Rear window heating relay (235)
  • C – electric rear windows

Fuses and relays under the hood of Renault Dokker

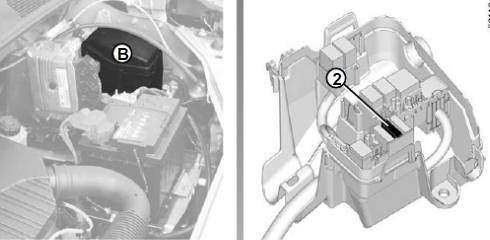

The fuse and relay box in the engine compartment is located on the left side, next to the battery. The box is covered with a protective cover, which has a diagram of the box.

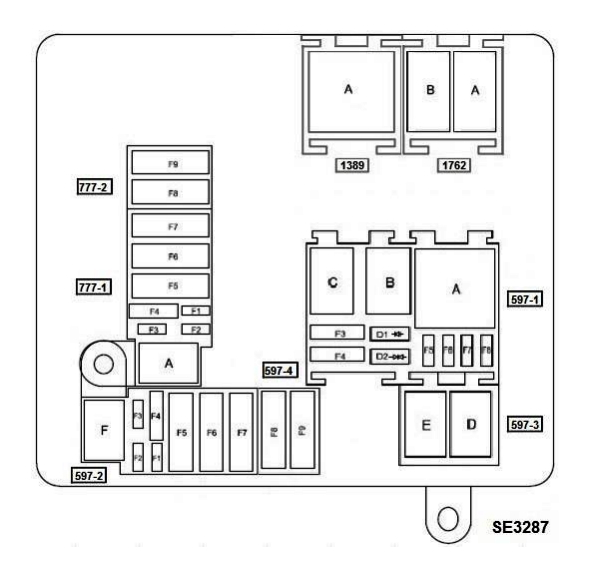

Under hood fuse and relay box diagram

Description

777
F1Spare
F27.5A Battery Current Sensor (928)
F330A Rear window heating
F425A ABS/ESP ECU (1094)
F570A Power supply circuits of fuses (F11-F23-F24-F25-F26-F27-F34-F39) in the passenger compartment
F660A Power supply circuits of fuses (F1-F14-F15-F16-F17-F18-F19-F20-F21-F22-F32-F33-F37-F38), window lifters
F750A ABS/ESP ECU (1094)
F840/60A Power supply circuits of fuses (F9-F10) in the passenger compartment
F980A Additional cabin heater
ABackup relay
597-1
D1air conditioner electromagnetic clutch diode (171)
D2diode: electric fan of the engine cooling system (188)
F320A Fuel Pump
F4Spare
F515/20A Engine Circuit Protection, Starter, Air Conditioner Compressor
F6Spare
F7Spare
F8Spare
AFuel injection system control unit power supply relay
BAir conditioning compressor or 1st speed relay of the electric fan
CFuel pump relay
597-2
F130A Starter
F215A Automatic transmission control unit
F315A Air Conditioning Compressor Clutch 25A Electric Fan
F425A Fuel pump and fuel injection
F550A Engine Cooling System Electric Fan Control Relay
F620A Power Supply Engine/Injection System Wiring Connector (R24)
F780A Power Steering Pump Assy (186)
ABackup relay
EStarter relay
DFuel pump cut-off relay
FStarter relay
