We consider fuses and relays in the Opel Mokka (Buick Encore) car – 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022.
Fuses and relays under the hood of the Opel Mokka
The mounting block in the engine compartment is located on the left side near the battery. The block is covered with a protective cover, on the inside of which there is a diagram of the block.

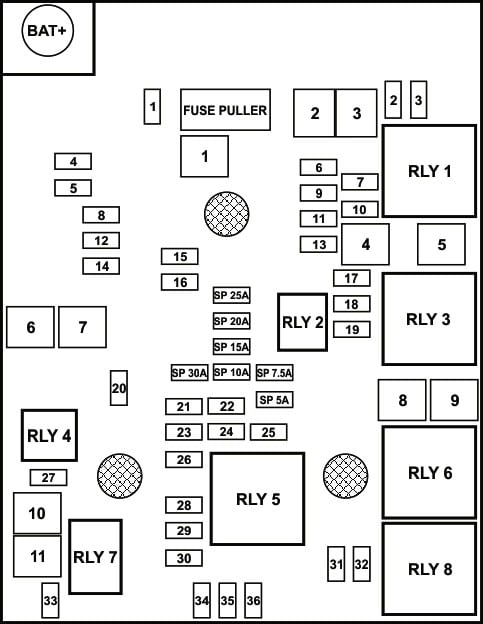

Opel Mokka underhood fuse box diagram
Description
1 Sunroof
2 Outside Rearview Mirror Switch
3 Air Vent Solenoid
4 Reserve
5 Electronic Valve Brake Control Module
6 2013-2015: Not Used
2016: Intelligent Battery Sensor
7 Reserve
8 Transmission Control Module Battery
9 2013-2015: BCM Adjustable Voltage Control
2016: Not Used
10 R/C Fuel System Control Module / Headlamp Leveling
11 Rear Wiper
12 Rear Window Defogger
13 Reserve
14 Outside Heated Rearview Mirror
15 Fuel System Control Module Battery
16 Heated Seat Module / Memory Module
17 R/C Transmission Control Module
18 R/C Engine Control Module
19 Fuel Pump
20 Reserve
21 Blower Relay (Auxiliary Fuse Block)
22 Reserve
23 Ignition Coil / Injector
24 Washer Pump
25 Spare
26 Canister Purge Solenoid / Water Valve Solenoid / Oxygen Sensors – Pre & Post / Turbo Solenoid (1.4L) / Turbo Solenoid (1.4L)
27 2013-2015: Not Used
2016: Auxiliary Heater Pump
28 2013-2015: Not Used
2016: Engine Control Module, Ignition Power Case 1
29 Engine Control Module Ignition Power Case 2
30 Mass Air Flow Sensor
31 Left High Beam
32 Right High Beam
33 Engine Control Module Battery
34 Horn
35 A/C Compressor Clutch
36 Front Fog Lights
J-Case Fuses
1 Pump Brake Electronic Control Module
2 Front Wipe
3 Blower Motor
4 IEC RC
5 Not Used Used
6 Not Used
7 2013-2015: Not Used
2016: Starter Solenoid (Automatic Transmission), Not Used (Manual Transmission)
8 Cooling Fan Low/Med
9 High Fan
10 EVP
11 2013-2015: Starter Solenoid
2016: Pinion Starter Solenoid (Automatic Transmission), Starter Solenoid (Manual Transmission)
Relays
1. Spare
2. Fuel Pump Relay
3. Cooling Fan Relay
4. Starter Relay
5. Power Train Relay
6. Cooling Fan Relay
7. Starter Relay
8. Cooling system fan relay
Fuses and relays in the cabin of the Opel Mokka

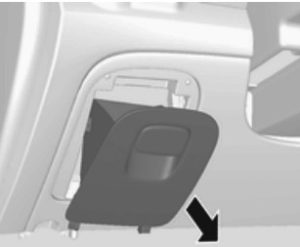

In the car’s interior, the mounting block is located on the driver’s side. To access it, you need to remove the storage box.

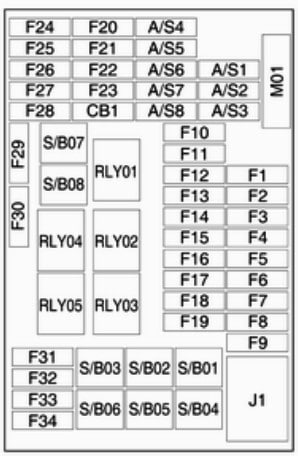

Opel Mokka interior fuse box and relay diagram
Description
F1 Body control unit 1
F2 Body control unit 2
F3 Body control unit 3
F4 Body control unit 4
F5 Body control unit 5
F6 Body control unit 6
F7 Body control unit 7
F8 Body control unit 8
F9 Ignition switch
F10 Safety diagnostic module
F11 Data port, door locks
F12 Heater, ventilation and air conditioning MDL/ICS
F13 Rear doors
F14 Parking assist
F15 Lane departure warning, interior mirror
F16 Adaptive front lighting module
F17 Electric window, driver’s side
F18 Rain sensor
F19 Body control unit
F20 Illumination of steering wheel switch
F21 Gearbox control unit
F22 Fuse for cigarette lighter / sockets
F23 Reserve
F24 Reserve
F25 Reserve
F26 Automatic occupant detection display
F27 Instrument cluster
F28 Headlight switch / AFL / DC converter
F29 Reserve
F30 Reserve
since 2016: Transmission control module battery
F31 IPC battery, instrument cluster
F32 Radio / Telephone / Aux Jack
F33 Display, infotainment system
F34 OnStar / UHP / DAB
M01 PTC
S/B01 Reserve
S/B02 Reserve
S/B03 Front window motor
S/B04 Rear window motor
S/B05 Logistics mode relay
S/B06 Reserve
S/B07 Reserve
S/B08 Reserve
CB1 Reserve
Relay
RLY01 Auxiliary instruments relay
RLY02 Doors
RLY03 Spare
RLY04 Spare
RLY05 Logistics mode
Fuses and relays in the trunk of the Opel Mokka

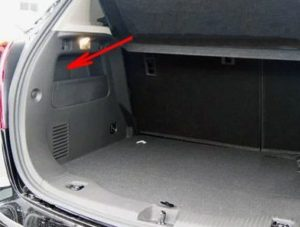

The fuse and relay mounting block in the luggage compartment is located on the left side behind the protective cover.

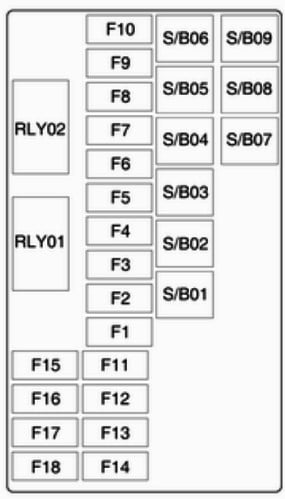

Opel Mokka fuse box and relay diagram
Description
1 Driver seat lumbar support
2 Passenger seat lumbar support 3
Power amplifier
4 Trailer harness connector
5 Permanent 4WD system
6 Display
7 Reserve
8 Trailer
9 Reserve
10 Reserve
11 Trailer
12 Navigation system
13 Heated steering wheel
14 Trailer harness connector
15 Steering wheel
16 Water in fuel sensor
17 Interior mirror
18 Reserve
S/B01 Driver seat electric adjustment / memory module
S/B02 Passenger seat electric adjustment
S/B03 Trailer module
S/B04 Inverter / Voltage converter
S/B05 Battery
S/B06 Headlamp washer
S/B07 Reserve
S/B08 Reserve
S/B09 Reserve
RLY01 Ignition relay
RLY02 Start relay
