Ford Focus 4 (2018 – 2025) fuses and relays. Ford Focus 4 (2018 – 2025) fuse diagram.

Ford Focus 4th generation was produced in 2018, 2019, 2020, 2021, 2022, 2023, 2024. During this time, the model has been updated. In this post you can find a description of the Ford Focus 4 fuses with block diagrams and their locations. Let’s highlight the fuse responsible for the cigarette lighter.

The purpose of fuses and relays may differ from that presented and depends on the year of manufacture and equipment level of your vehicle.

Cabin block

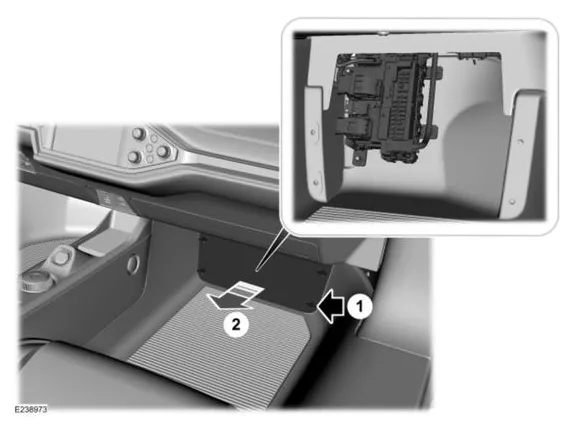

Inside the car, the fuse and relay block is located under the glove compartment. To access it, you must remove the protective cover.

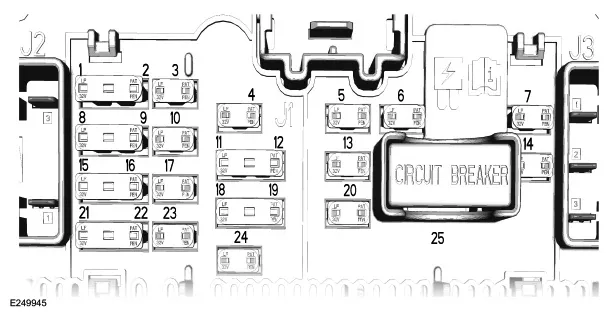

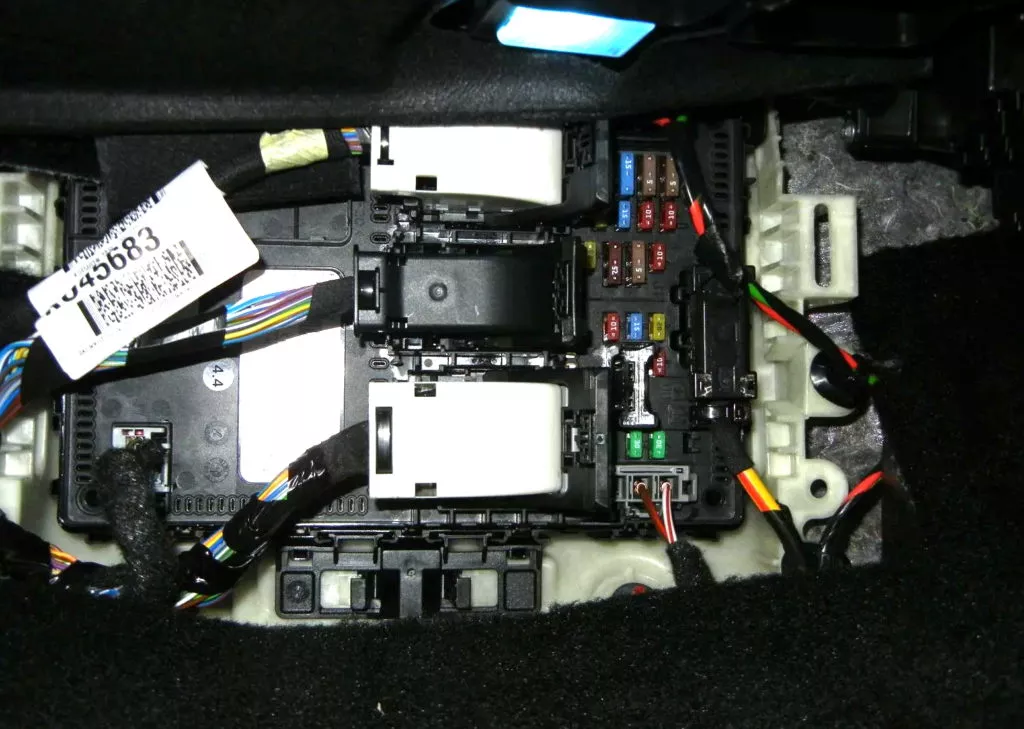

The block itself will look something like this.

№	A	Description
1	5A	Airbag control module.
2	5A	Car temperature and humidity sensor.
3	10A	Parking assistance system control module.
4	10A	Ignition switch. Push-button ignition switch.
5	20A	Central lock.
6	10A	Luke.
7	30A	Right mirror switch. Right front power windows.
8	5A	Headlight control module.
9	5A	Passenger airbag deactivation indicator. Auto-dimming interior mirror. Front parking assist camera.
10	10A	Projection display module. Wireless charging module for accessories.
11	5A	Telematics modem.
12	5A	Central security module.
13	15A	Child safety locks. Fuel filler flap. Central locking.
14	30A	Left mirror switch. Left front power windows.
15	15A	Keram wheel module.
16	15A	Adaptive damping module.
17	15A	Voice control. Audio unit.
18	7.5A	Electric tailgate. Hands-free liftgate control module.
19	7.5A	Rechargeable sound alarm.
20	10A	Anti-theft alarm sound.
21	7.5A	Climate control. Electronic gearshift module.
22	7.5A	Steering wheel module. Instrument panel. Transmission channel connector.
23	20A	Audio block.
24	20A	Not used (spare).
25	30A	Not used (spare).

Block under the hood

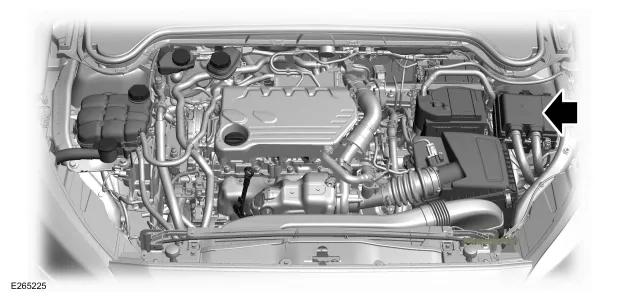

Under the hood, in the engine compartment, the fuse box is located next to the pillar.

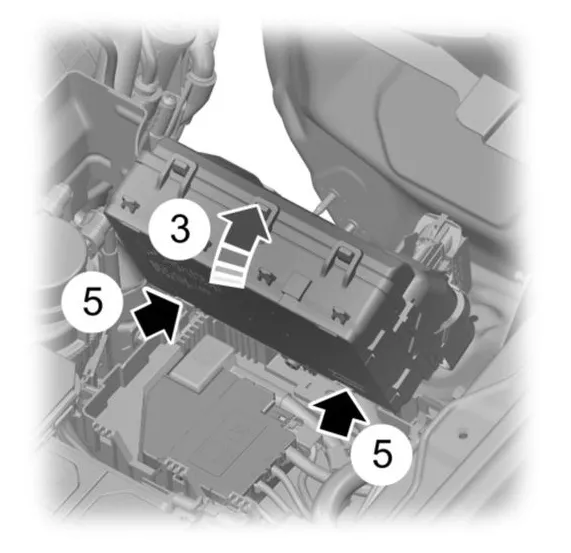

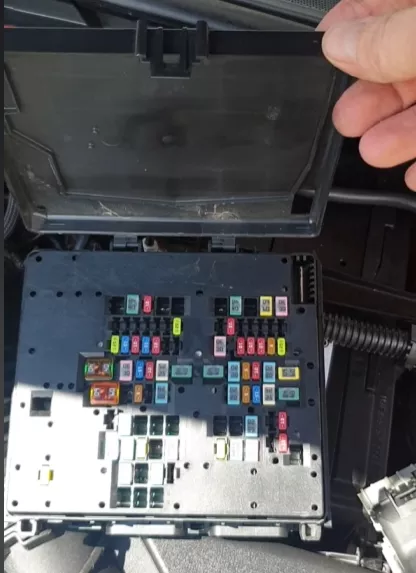

To access it, pull the two tank latches towards you and remove the fuse box. Turn it over and open the central latch that holds the cover.

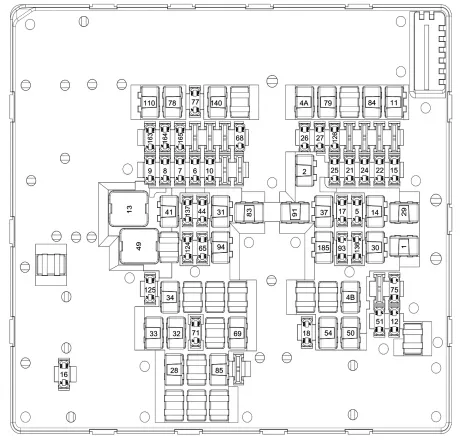

№	A	Marking
1	40A	Body equipment control module.
2	30A	Body equipment control module.
4A	20A	Fuel pump – diesel.
4B	20A	Fuel pump – gasoline.
5	10A	Transmission channel connector.
6	15A	Powertrain control module – gasoline.
	20A	Powertrain control module – diesel.
7	10A	Powertrain control module.
8	15A	Powertrain control module.
9	20A	Powertrain control module.
10	10A	Powertrain control module – gasoline.
11	30A	Starter.
12	10A	Air conditioner clutch.
13	40A	Fan motor.
14	20A	Auxiliary heater control module.
15	20A	Horn.
16	20A	Rear window washer pump.
17	5A	Lumbar region.
18	20A	Headlight washer pump.
21	10A	Headlight adjustment.
22	5A	Electronic power steering.
24	10A	Powertrain control module.
25	10A	Front parking assist camera. Rear view camera. Blind spot information system. Reverse.
26	15A	Transmission control module – diesel.
27	10A	Electronic stabilization system.
28	40A	Electronic stabilization valve.
29	60A	Electronic stabilization system pump
30	25A	Electric driver’s seat.
31	25A	Electric passenger seat.
32	25A	Auxiliary socket.
33	20A	Auxiliary socket.
34	20A	Auxiliary socket.
37	20A	Luke.
41	30A	Electric rear door.
44	10A	Brake light switch.
49	60A	Cooling fan.
50	30A	Heated lighting.
54	20A	Electronic limited-slip differential – gasoline.
65	20A	Transmission control module – diesel.
68	20A	Steering column lock.
69	30A	Wipers.
71	20A	Rear window wiper.
75	10A	Mass air flow and intake air temperature sensor – gasoline.
77	10A	Heated windshield washer nozzles. Windshield heating relay.
78	40A	Left windshield heating element.
79	40A	Windshield heating element, right.
83	40A	Additional heater.
84	60A	Additional heater.
85	40A	Additional heater.
91	40A	Modular trailer trailer.
93	5A	Headlights.
94	20A	Seat heating.
110	30A	Water in fuel sensor – diesel. Diesel fuel heater.
124	5A	Rain sensor.
126	5A	Dosing control unit – diesel.
136	15A	Amplifier.
137	15A	Amplifier.
140	60A	Glow plugs are diesel.
163	15A	Reducing agent dosing control module.
164	10A	Interior door controls – diesel.
165	15A	Tank heater – diesel.
185	20A	Power windows. Sunroof.

In 5-door models and station wagons, a 15A fuse can be installed in the luggage compartment on the right side, which is responsible for the ignition system.
