Fuse box diagram (fuse location), location and purpose of fuses MINI Hatch – Cooper, Cooper S, John Cooper Works (JCW), One & One First (F55, F56, F57; 2013, 2014, 2015, 2016, 2017, 2018).
Checking and replacing fuses
The electrical wiring in the car is protected from short circuits by fuses. This significantly reduces the likelihood of damage caused by electrical problems.
To check a fuse, look at the silver strip inside the fuse. If the strip is broken or melted, replace the fuse. Plastic tweezers and information about fuse types and locations are stored in the fuse box in the glove compartment.
Note
- Before replacing a fuse, make sure the key is removed from the ignition and all services are turned off and/or disconnected.
- Incorrect and repaired fuses can overload electrical lines and components. There is a risk of fire. Never attempt to repair a blown fuse. Do not replace a faulty fuse with a fuse of a different color or amperage rating.
- The vehicle manufacturer recommends that you contact your dealer or other qualified service center or repair shop to have the fuses replaced.
- If the fuse blows again, contact a qualified service center.

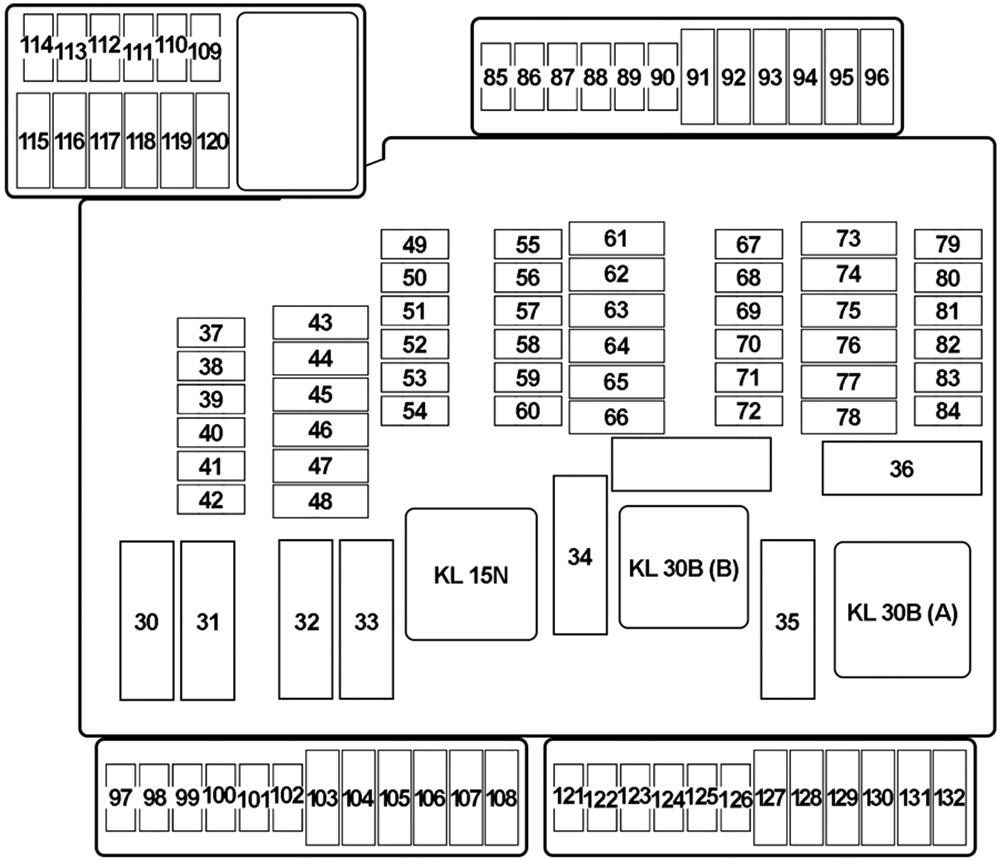

Car interior fuse box diagram
The fuses are located in the passenger seat floor area under the instrument panel.
- To open, loosen the screws, arrow 1;
- Fold back the fuse holder, arrow 2.
| No. | Amps | Protected component |
|---|---|---|
| 30 | — | — |
| 31 | 50 | Windshield heating relay |
| 32 | 40 | Body Domain Controller |
| 33 | — | — |
| 34 | 40 | Fan output stage |
| 35 | 50 | Body Domain Controller |
| 37 | 5 | Parking brake button |
| 38 | 5 | Siren with tilt sensor, driver door microwave sensor, passenger door microwave sensor, rear left microwave sensor, rear right microwave sensor |
| 39 | 5 | Roof Function Center |
| 40 | 5 | Dynamic Stability Control (DSC) |
| 41 | 5 | Instrument cluster control unit |
| 42 | 5 | Remote control receiver |
| 43 | 30 | Roof Function Center |
| 44 | 20 | 2016-2018: Right headlight |
| 45 | 30 | Dynamic Stability Control (DSC) |
| 46 | 5 | Natural Vacuum Leak Detection |
| 47 | 30 | 2013-2016: Longitudinal Torque Distribution |
| 20 | 2016-2018: Left headlight | |
| 48 | 30 | Selective Catalytic Reduction (SCR) Control Unit |
| 49 | 5 | Electric Exhaust Damper, Control Electronics for Electric Auxiliary Heater #2 |
| 50 | 5 | Radiator shutter actuator, air catalytic converter sensor |
| 51 | 5 | Base plate fan |
| 52 | 5 | Electrochromic interior rear view mirror |
| 53 | 5 | Automatic Air Recirculation Control (AUC) Sensor |
| 54 | 5 | Electromechanical power steering |
| 55 | 4 | Rear view camera, camera-based driver assistance system (2013-2015), parking assistant |
| 56 | 5 | Car Sound Generator |
| 57 | — | — |
| 58 | 10 | Steering column switch block |
| 59 | 5 | 2013-2015: Camera-based driver assistance system |
| 60 | 5 | Additional supplementary system |
| 61 | 20 | Head unit (radio or navigation system) |
| 62 | 5 | Interior lighting, rain sensor, solar condensation sensor, mirror lighting |
| 63 | 20 | Trailer Nest, Trailer Nest Preparation |
| 64 | 20 | 12V socket (luggage) |
| 65 | 20 | Front cigarette lighter (12V socket) |
| 66 | 20 | Electric fuel pump control electronics |
| 67 | 7.5 | 2013-2017: Outside mirror (front passenger) |
| 5 | 2017-2018: Outside mirror (front passenger) | |
| 68 | 5 | Touchpad, Controller (CON), USB Hub, USB Charging Port #3 |
| 69 | 7.5 | 2013-2017: Outside Mirror (Switch Block – Driver’s Door) |
| 5 | 2017-2018: Outside Mirror (Switch Block – Driver’s Door) | |
| 70 | 5 | Luggage compartment light, glove box light, tailgate release button on inside of tailgate |
| 71 | 7.5 | Instrument cluster control unit |
| 72 | 5 | Electric fan cut-off relay, built-in power module (fan →400 W 2013-2015) |
| 73 | 10 | Driver’s seat back with adjustment (valve block) |
| 74 | 7.5 | Gasoline: Turbocharger Coolant Pump |
| 75 | — | — |
| 76 | 10 | Diesel: Diesel Particulate Matter Sensor |
| 5 | 2013-2017: Airbag indicator | |
| 77 | 10 | Nitrogen Oxide Sensor After Selective Catalytic Reduction (SCR) Catalytic Converter |
| 78 | 15 | Selective Catalytic Reduction (SCR) Control Unit |
| 79 | 5 | Base Plate, Wireless Charger Stand, Wireless Charger Stand, Antenna Booster |
| 80 | 5 | Central instrument cluster, central information display, airbag indicator (2017-2018) |
| 81 | 15 | Electronic transmission control |
| 82 | 5 | Selector level |
| 83 | 5 | 2013-2016: Digital engine electronics |
| 7.5 | 2016-2018: Digital engine electronics | |
| 84 | 5 | Clutch module (manual transmission), dual clutch transmission control unit, dual clutch transmission relay |
| 85 | 5 | Electrochromic interior rear view mirror |
| 86 | — | — |
| 87 | 5 | DVD changer |
| 88 | — | — |
| 89 | 5 | 2013-2015: Chronometer |
| 90 | — | — |
| 91 | 15 | Active Sound Design |
| 92 | 10 | Additional supplementary system |
| 93 | 40 | Convertible: Convertible top module |
| 94 | 5 | Convertible: Convertible top module |
| 95 | — | — |
| 96 | 40 | Convertible: Convertible top module |
| 97 | 5 | Auxiliary control unit |
| 98 | — | — |
| 99 | — | — |
| 100 | — | — |
| 101 | 5 | Identifier Reader, Car Sharing Module (CSM) |
| 102 | — | — |
| 103 | 20 | 2013-2016: Right headlight |
| 104 | 20 | 2013-2016: Left headlight |
| 105 | — | — |
| 106 | — | — |
| 107 | 40 | 2013-2017: Automatic opening of the trunk lid |
| 40 | 2017-2018: Rear Door Function Module | |
| 108 | — | — |
| 109 | 5 | Bistable relay |
| 110 | 5 | Bistable relay |
| 111 | 5 | Bistable relay |
| 112 | — | — |
| 113 | — | — |
| 114 | — | — |
| 115 | 5 | Convenient charging electronics |
| 116 | — | — |
| 117 | — | — |
| 118 | — | — |
| 119 | 20 | Trailer module, trailer socket |
| 120 | 20 | Trailer module, trailer socket |
| 121 | 7.5 | USB charging port #4 |
| 122 | — | — |
| 123 | — | — |
| 124 | — | — |
| 125 | — | — |
| 126 | — | — |
| 127 | 30 | Driver’s seat heating electronics (basic version), driver’s seat module (high version) |
| 128 | 30 | Front passenger seat heating electronics |
| 129 | 30 | HiFi Amplifier |
| 130 | — | — |
| 131 | 30 | 2015-2018: Longitudinal Torque Distribution |
| 132 | 20 | 12V socket #1, 12V socket #2, 12V socket #4 (luggage) |
Advertising
BDC (Body Domain Controller)
It is located in the front passenger footwell.
| No. | A | Protected component |
|---|---|---|
| 1 | 30 | Electric window (passenger) |
| 2 | 30 | Electric window (driver side – rear) |
| 3 | 20 | Door lock (front passenger) |
| 4 | 30 | Electric window (driver) |
| 5 | 30 | Rear window defroster |
| 6 | 30 | Electric window (passenger side – rear) |
| 7 | 20 | Door lock (driver) |
| 8 | — | — |
| 9 | 5 | Lighting control unit, steering column switch unit, driver assistance system control unit with hazard warning switch |
| 10 | 7.5 | 2014-2018: Diagnostic socket |
| 11 | 7.5 | Diagnostic connector (2013-2014), heating/air conditioning system, trunk lid function module (2017-2018) |
| 12 | 5 | Evaluation electronics for contactless opening of the rear lid, telematic communication unit, electronic module for external door handle (driver/passenger) |
| 13 | 15 | Horn |
| 14 | 15 | Rear wiper and washer |
