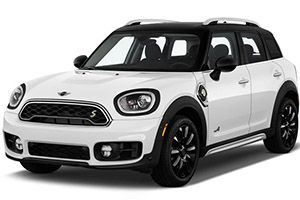

Fuse box diagram (fuse location), location and purpose of fuses MINI Cooper Countryman, Cooper S, John Cooper Works, One, One D and Cooper D (F60; 2017, 2018, 2019, 2020, 2021, 2022).
Checking and replacing fuses
The electrical wiring in the car is protected from short circuits by fuses. This significantly reduces the likelihood of damage caused by electrical problems.
To check the fuse, look at the silver strip inside the fuse. If the strip is broken or melted, replace the fuse.
Note
- Before replacing a fuse, make sure the key is removed from the ignition and all services are turned off and/or disconnected.
- Incorrect and repaired fuses can overload electrical lines and components. There is a risk of fire. Never attempt to repair a blown fuse. Do not replace a faulty fuse with a fuse of a different color or amperage rating.
- The vehicle manufacturer recommends that you contact your dealer or other qualified service center or repair shop to have the fuses replaced.
- If the fuse blows again, contact a qualified service center.

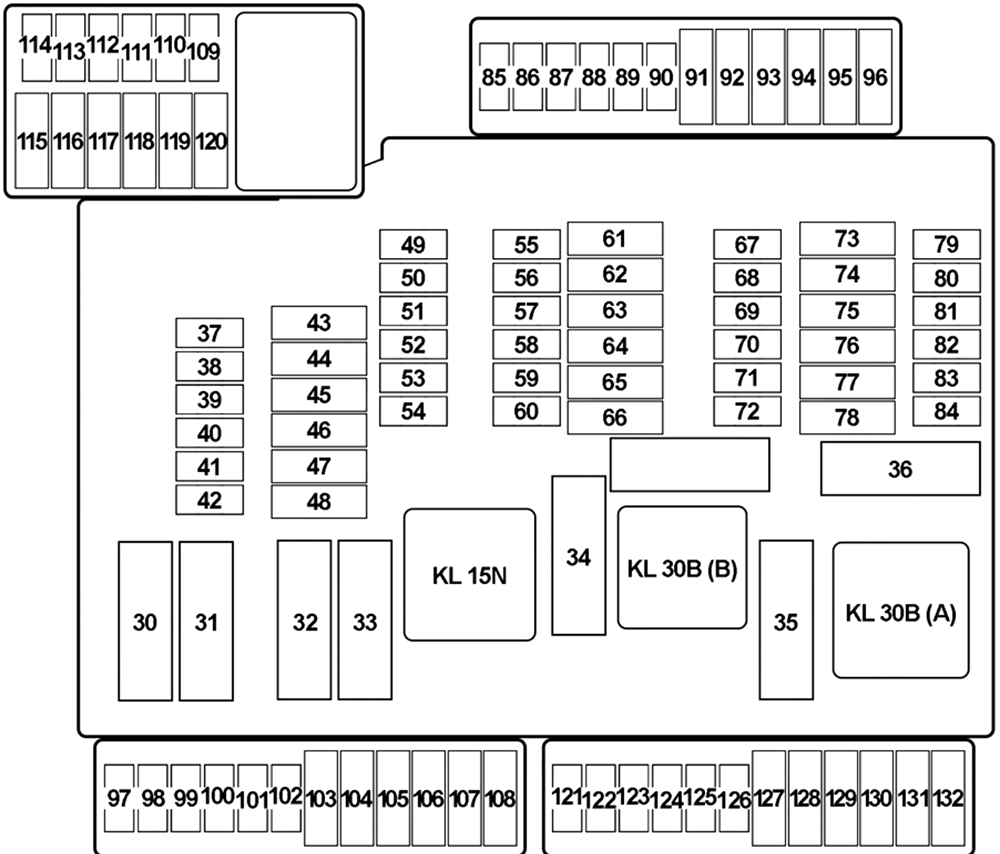

Car interior fuse box diagram

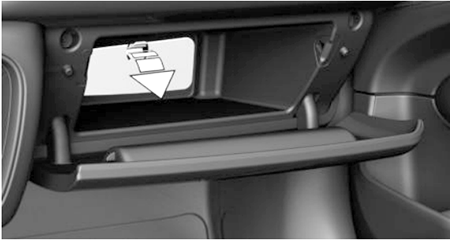

The fuses are located in the glove compartment. Open the glove compartment. Fold the cover down, arrow. Plastic tweezers and information about the types and locations of fuses are stored in the fuse box.
| No. | Amps | Protected component |
|---|---|---|
| 30 | — | — |
| 31 | 50 | Windshield heating relay |
| 32 | 40 | Body Domain Controller |
| 33 | — | — |
| 34 | 40 | Fan output stage |
| 35 | 50 | Body Domain Controller |
| 37 | 5 | Parking brake button |
| 38 | 5 | Siren with tilt sensor |
| 39 | 5 | Roof Control Center (Airbag Indicator) |
| 40 | 5 | Dynamic Stability Control (DSC) |
| 41 | 5 | Instrument cluster control unit |
| 42 | 5 | Remote control receiver (comfort access, central locking, tire pressure monitoring) |
| 43 | 30 | Roof Function Center |
| 44 | 20 | Right headlight |
| 45 | 30 | without electromechanical parking brake: Dynamic Stability Control (DSC) |
| 40 | with electromechanical parking brake: Dynamic Stability Control (DSC) | |
| 46 | 5 | except Cooper SE: Natural Vacuum Leak Detection |
| 10 | Cooper SE: Fuel Tank Pressure Control Module | |
| 47 | 20 | Left headlight |
| 48 | 30 | Selective Catalytic Reduction (SCR) Control Unit |
| 49 | 5 | Electric Exhaust Damper, Control Electronics for Electric Auxiliary Heater #2 |
| 50 | 5 | Radiator shutter actuator, catalytic converter ambient temperature sensor (except Cooper SE) |
| 51 | 5 | Base plate fan |
| 52 | 5 | Electrochromic interior rear view mirror |
| 53 | 5 | Automatic Air Recirculation Control (AUC) Sensor |
| 54 | 5 | Electromechanical power steering |
| 55 | 4 | Rear view camera, Parking assistant |
| 56 | 5 | except Cooper SE: longitudinal torque distribution |
| Cooper SE: Longitudinal Torque Distribution, Vehicle Sound Generator 1 and 2 | ||
| 57 | — | — |
| 58 | 10 | Steering column switch block |
| 59 | 5 | Camera-based driver assistance system |
| 60 | 5 | Additional supplementary system |
| 61 | 20 | Head unit (radio or navigation system) |
| 62 | 5 | Interior lighting, rain sensor, solar condensation sensor, vanity mirror lighting, third row interior lighting |
| 63 | 20 | Trailer socket |
| 64 | — | — |
| 65 | 20 | Front cigarette lighter (12V socket) |
| 66 | 20 | Electric fuel pump control electronics |
| 67 | 5 | Outside mirror (front passenger) |
| 68 | 5 | Touchpad, Controller (CON), USB Hub, USB Charging Port #3 |
| 69 | 5 | Outside mirror (switch block – driver’s door) |
| 70 | 5 | Luggage compartment light, glove box light, tailgate release button on inside of tailgate |
| 71 | 7.5 | Instrument cluster control unit |
| 72 | 5 | Fan 400 W →: Electric Fan Shut-off Relay |
| Fan →400W: Integrated power module | ||
| 73 | 10 | Driver’s seat back width adjustment valve block, Driver’s lumbar support valve block, Driver’s seat back width adjustment switch |
| 74 | 7.5 | Petrol: Turbocharger (TU) Coolant Pump |
| 75 | 10 | Front passenger seat back width adjustment valve block, front passenger lumbar support valve block, front passenger seat back width adjustment switch |
| 76 | 10 | Diesel: Diesel Particulate Matter Sensor |
| 77 | 10 | Nitrogen Oxide Sensor After Selective Catalytic Reduction (SCR) Catalytic Converter |
| 78 | 15 | Selective Catalytic Reduction (SCR) Control Unit |
| 79 | 5 | Base Plate, Wireless Charger Stand, Wireless Charger Stand, Antenna Booster |
| 80 | 5 | Central instrument, central information display |
| 81 | 15 | Electronic transmission control |
| 82 | 5 | Selector level |
| 83 | 7.5 | Petrol: Digital engine electronics |
| 84 | 5 | Clutch module (manual transmission), dual clutch transmission control unit, dual clutch transmission relay |
| 85 | 5 | Electrochromic interior rear view mirror |
| 86 | — | — |
| 87 | — | — |
| 88 | — | — |
| 89 | — | — |
| 90 | — | — |
| 91 | 15 | Active Sound Design |
| 92 | 10 | Additional supplementary system |
| 93 | — | — |
| 94 | — | — |
| 95 | 30 | Front passenger seat adjustment switch block |
| 96 | 10 | Trunk/Tailgate Lock |
| 97 | — | — |
| 98 | 5 | Preparing a high function |
| 99 | — | — |
| 100 | 5 | Cooper SE: High Voltage Battery Pack |
| 101 | 5 | Identifier Reader, Car Sharing Module (CSM) |
| 102 | — | — |
| 103 | 20 | Right headlight |
| 104 | 20 | Left headlight |
| 105 | — | — |
| 106 | — | — |
| 107 | 40 | 2017: Automatic opening of the trunk lid |
| 2018-2022: Boot lid functional module | ||
| 108 | — | — |
| 109 | 5 | Bistable relay |
| 110 | 5 | Bistable relay |
| 111 | 5 | Bistable relay |
| 112 | — | — |
| 113 | — | — |
| 114 | — | — |
| 115 | 5 | Cooper SE: Convenient charging electronics |
| 116 | — | — |
| 117 | — | — |
| 118 | — | — |
| 119 | 20 | Trailer module, trailer socket |
| 120 | 20 | Trailer module, trailer socket |
| 121 | 7.5 | USB charging port #4 (rear) |
| 122 | 5 | Safe Battery Terminal Gas Generator |
| 123 | 5 | Electric air conditioning compressor, electric auxiliary heater |
| 124 | 10 | Cooper S.E.: Electronic Engineering and Electronics |
| 125 | — | — |
| 126 | — | — |
| 127 | 30 | Driver’s seat heating electronics (basic version), driver’s seat module (high version) |
| 128 | 30 | Front passenger seat heating electronics |
| 129 | 30 | HiFi Amplifier |
| 130 | 10 | Cooper SE: Coolant Pump 2 in Low Temperature Coolant Circuit |
| 131 | 30 | except Cooper SE: longitudinal torque distribution |
| Cooper SE: transmission oil pump, longitudinal torque distribution | ||
| 132 | 20 | Socket #1 12V, Socket #2 12V (2017-2018), Socket #4 12V (luggage) |
Advertising

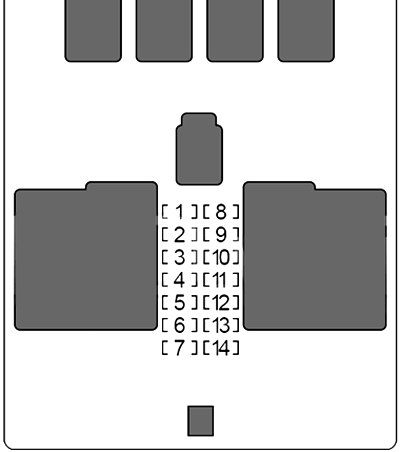

BDC (Body Domain Controller)

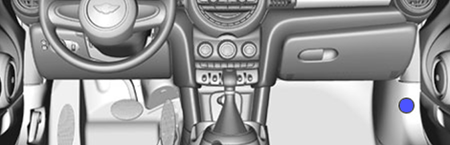

It is located in the front passenger footwell.
| No. | Amps | Protected component |
|---|---|---|
| 1 | 30 | Electric window lifter for passenger door |
| 2 | 30 | Electric window on the driver’s side, rear |
| 3 | 20 | Front passenger door lock |
| 4 | 30 | Electric window for driver |
| 5 | 30 | Rear window defroster |
| 6 | 30 | Electric window on the rear passenger side |
| 7 | 20 | Driver’s door lock |
| 8 | — | — |
| 9 | 5 | Lighting control unit, steering column switch unit, driver assistance system control unit with hazard warning switch |
| 10 | 7.5 | Diagnostic connector |
| 11 | 7.5 | Heating/air conditioning system, rear door function module |
| 12 | 5 | Evaluation electronics for contactless opening of the rear lid, telematic communication unit, electronic module for external door handle (driver/passenger) |
| 13 | 15 | Horn |
| 14 | 15 | Rear wiper and washer |
