In this article, we will look at the third generation Lancia Ypsilon (Type 846, after the first facelift), produced from 2016 to 2020. Here you will find the 2016, 2017, 2018, 2019 and 2020 Lancia Ypsilon fuse box diagrams , get information about the location of the fuse panels inside the car, and also learn the purpose of each fuse (fuse box diagram).
Lancia Ypsilon/Chrysler Ypsilon 2016-2020 fuse box locations
Passenger compartment fuse box
Fuse box location

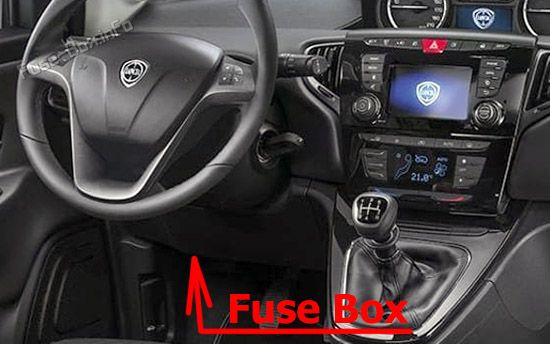

The control unit is located near the left side of the steering column, and the fuses are easily accessible from the bottom of the instrument panel.
To make replacing fuses easier, use pliers hooked inside the fuse box cover on the left side of the
Fuse box diagram

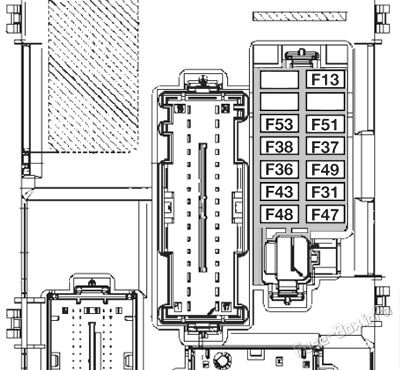

Assignment of fuses in the fuse box on the instrument panel
| No. | Amps | Description |
|---|---|---|
| F13 | 5A | +15 Headlight corrector |
| F31 | 5A | +15 ignition control with braking during engine start. |
| F36 | 15A | +30 Climate control unit, control unit, EOBD connector, radio setup |
| F37 | 7.5A | +15 brake pedal switch (NO) |
| F38 | 20A | Central door lock |
| F43 | 20A | Two-way windshield washer pump |
| F47 | 20A | Front electric window (driver side) |
| F48 | 20A | Front electric window (passenger side) |
| F49 | 7.5A | +15 Sunroof, rain/twilight sensor, electric mirrors, lighting control, AUX jack |
| F51 | 5A | +15 Radio settings, climate control unit, sunroof, parking control unit, brake pedal switch (NC), clutch pedal switch (NC), reversing lights. |
| F53 | 7.5A | +30 Instrument panel |
+15 = Positive terminal, ignition controlled
+30 = Direct positive battery terminal (not ignition controlled)
Advertisements
Engine compartment fuse box
Fuse box location

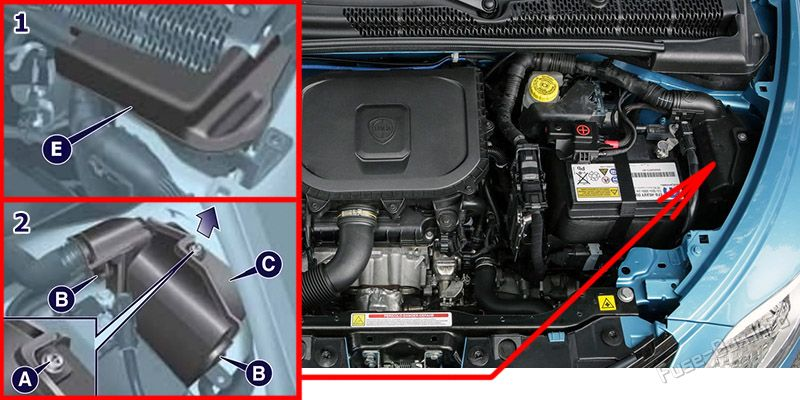

It is located on the side of the battery. To access the fuses, follow these steps: slide cover E , unscrew screw A , release clips B and pull cover C upwards.
Fuse box diagram

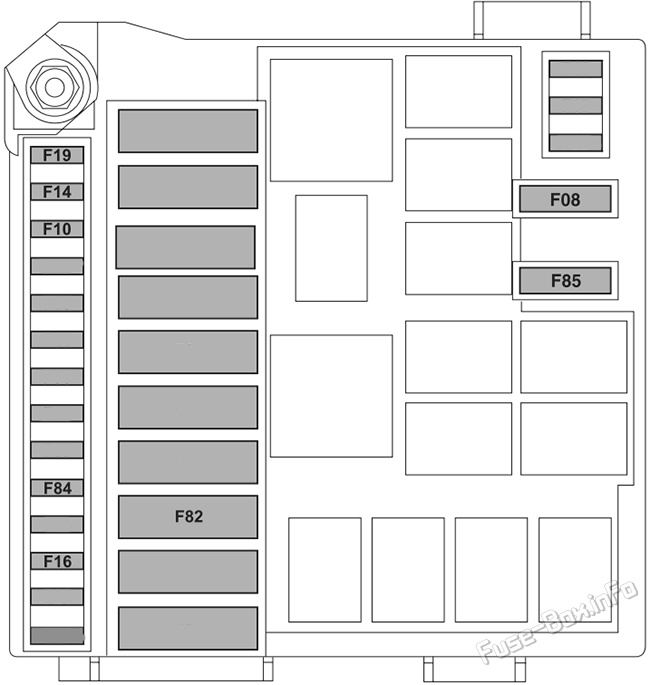

Purpose of fuses in the engine compartment
| No. | Amps | Description |
|---|---|---|
| F08 | 15A | Front fog lights |
| F10 | 15A | Horns |
| F14 | 15A | High beam headlights |
| F15 | 20A | Sunroof motor |
| F16 | 7.5A | Power supply for the Dual FuNction System gearbox control unit (+ignition) |
| F82 | 40A | Cabin fan |
| F84 | 10A | Dual Function Gearbox Control Unit |
| F85 | 20A | Front socket (with or without cigarette lighter) |
Fuse box in the luggage compartment
Fuse box location

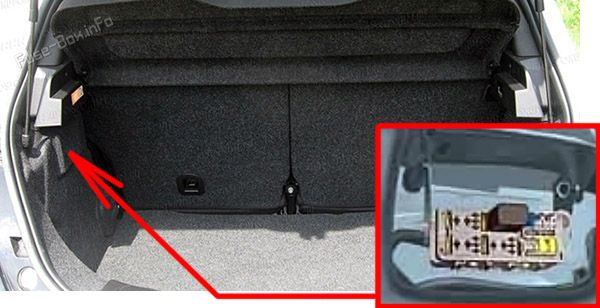

The fuse box is located on the left side of the luggage compartment, under the side cover.
Fuse box diagram

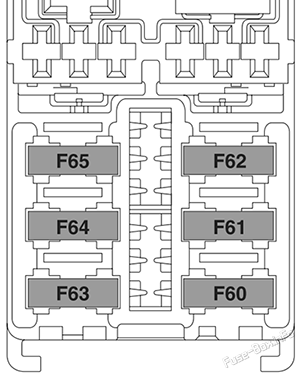

Purpose of fuses in the luggage compartment
| No. | Amps | Description |
|---|---|---|
| F60 | 20A | HI-FI system BOSE |
| F61 | – | – |
| F63 | 20A | Rear right electric window |
| F64 | 20A | Rear left electric window |
