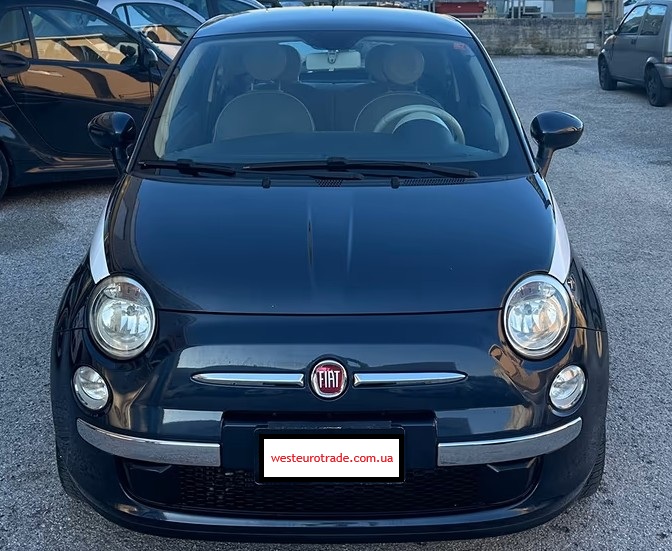

Fiat 500 is a compact front-wheel drive city car. In the standard version, it has three doors and seats four people. Similar to the Volkswagen New Beetle and BMW MINI, this car has retro accents in its exterior design. In this article, we will examine in detail the fuse diagrams of the 2nd generation Fiat 500 (factory index 150 ) restyling 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 .
Here you will find the locations and photos of the mounting blocks. We will separately note the fuses responsible for the cigarette lighter and fuel pump.
In the engine compartment Fiat 500
It is located on the right side of the engine compartment near the battery.

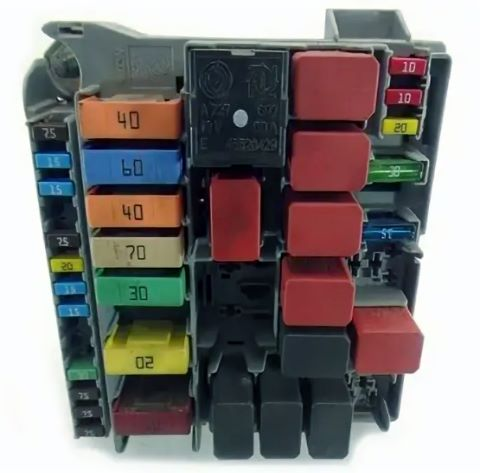

Photo – example of execution.

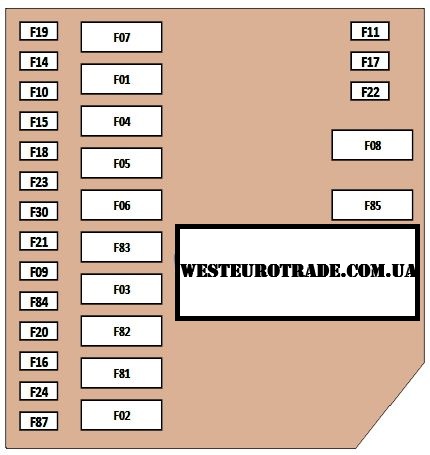

| No. | Description | Current, A |
| F01 | BCM Controller | 60 |
| F02 | Audio amplifier | 20 |
| F03 | Ignition switch | 20 |
| F04 | Anti-lock brake pump | 40 |
| F05 | Electric power steering | 70 |
| F06 | Radiator fan – single speed | 20 |
| F06 | Radiator Fan – Low Speed | 30 |
| F07 | Radiator Fan – High Speed | 40 |
| F08 | Fan motor | 40 |
| F09 | Power unit | 10 |
| F10 | Sound signal | 10 |
| F11 | Power unit | 15/10 |
| F14 | High beam (shutter) | 5 |
| F15 | Cigarette lighter fuse Fiat 500 | 15 |
| F16 | Transmission | 7.5 |
| F17 | Engine management (Multair – if available) | 15/25 |
| F18 | Engine management | 15 |
| F18 | Powertrain (Multair – if available) | 5 |
| F19 | Air conditioner | 7.5 |
| F20 | Heated seats – if equipped | 15 |
| F21 | Fuel module (fuel pump fuse) | 15 |
| F22 | Engine management | 20 |
| F23 | Anti-lock brake valves | 20 |
| F24 | Stability control system | 7.5 |
| F30 | Fog lights | 15 |
| F82 | Sunroof/Convertible Top | – |
| F83 | Cooling pump – if available | – |
| F84 | Transmission | 10 |
| F85 | Rear defroster | – |
| F87 | Rear defroster | 5 |
| F90 | Heated mirrors – if available | 5 |
In the salon Fiat 500

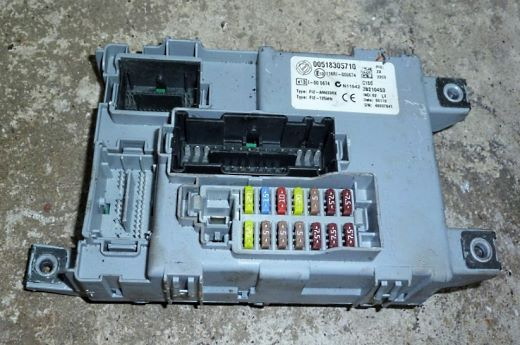

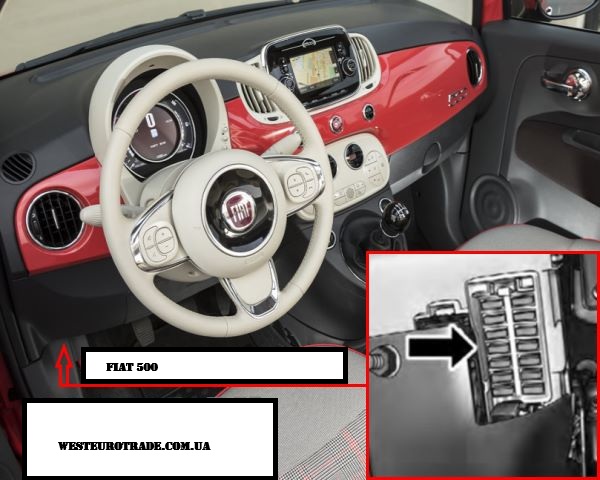

The cabin unit is part of the BCM module and is located under the instrument panel on the driver’s side.
General view.
| No. | Description | Current, A |
| F13 | Left low beam, headlight range control | 7.5 |
| F50 | Airbags | 7.5 |
| F51 | Radio, climate control system, brake light, clutch | 5 |
| F37 | Brake light switch, instrument panel | 5 |
| F49 | Exterior mirrors, GPS, parking sensor | 5 |
| F31 | Ignition, climate control | 5 |
| F47 | Driver’s door window lifter | 20 |
| F12 | Right low beam | 7.5 |
| F32 | Front and rear ceiling lights, Trunk and door lights | 5 |
| F53 | Instrument cluster assembly | 5 |
| F38 | Central door lock | 20 |
| F36 | Diagnostic connector, car radio, climate control system | 10 |
| F43 | Windscreen wipers and washers | 20 |
| F48 | Passenger window lifter | 20 |
