The 9th generation Honda Accord was produced in 2013, 2014, 2015, 2016 and 2017. In this article, we will present a description of the fuses and relays of the Honda Accord 9 with block diagrams, photo examples of execution and their locations. We will highlight the cigarette lighter fuse.
Actual fuse and relay designations may differ from those shown. Please check the designations with your diagrams or other technical documentation.
Cabin block

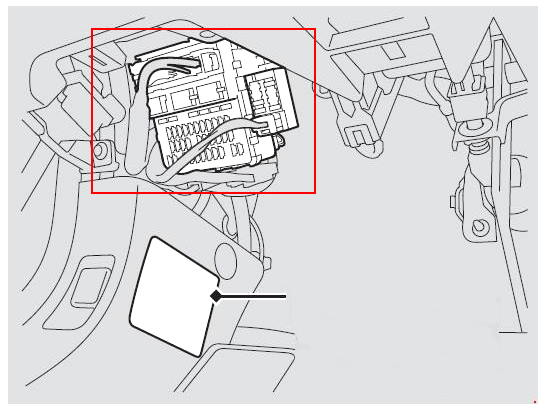

In the cabin, the main fuse box is located under the driver’s panel. Below on the rack, you will find the current diagram with the designation for your car.

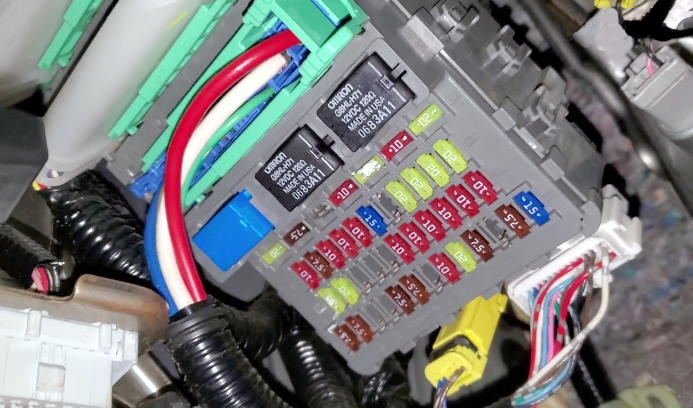

Photo example

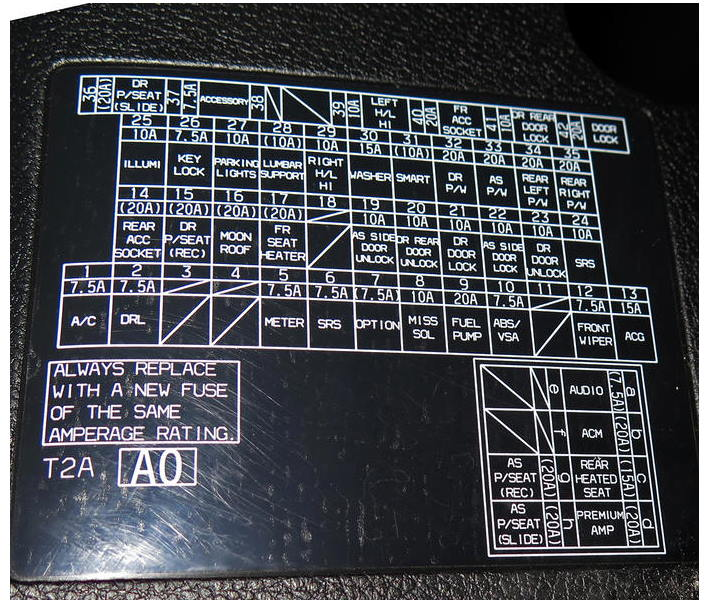

Block cover diagram

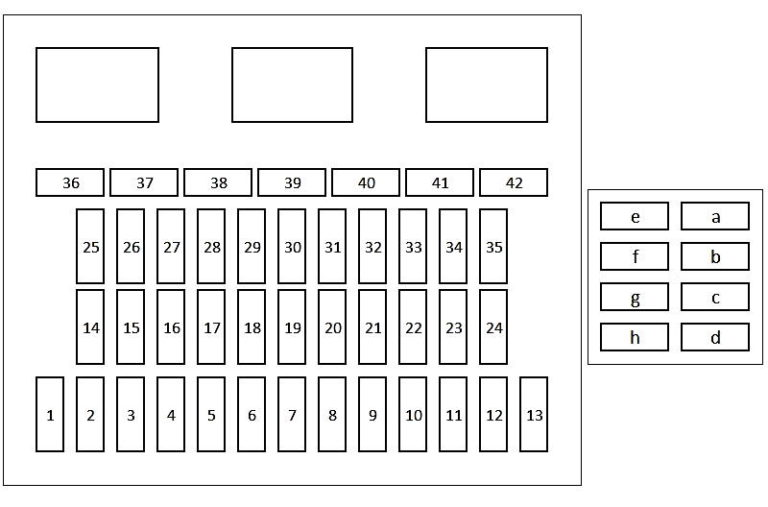

Scheme
Description
| 1 | 7.5A Air conditioner |
| 2 | 7.5A Daytime running lights |
| 3 | – |
| 4 | – |
| 5 | 7.5A Dashboard |
| 6 | 7.5A Airbags |
| 7 | 7.5A Option |
| 8 | 10А MISS SOL |
| 9 | 20A Fuel pump |
| 10 | 7.5A ABS/VSA |
| 11 | – |
| 12 | 7.5A Front wiper |
| 13 | 15A ACG |
| 14 | 20A Rear accessory power outlet (console compartment) |
| 15 | 20A Driver’s seat with electric tilt (option) |
| 16 | 20A Sunroof (optional) |
| 17 | 20A Heated front seats (option) |
| 18 | – |
| 19 | 10A Passenger side door unlocking |
| 20 | 10A Unlocking the rear door on the driver’s side |
| 21 | 10A Driver’s door lock |
| 22 | 10A Passenger door lock |
| 23 | 10A Driver’s door unlock |
| 24 | 10A Airbags |
| 25 | 10A Lighting |
| 26 | 7.5A Key Lock |
| 27 | 10A Parking lights |
| 28 | 10A Lumbar support (optional) |
| 29 | 10A Right headlight high beam |
| 30 | 15A Washer |
| 31 | 10A Keyless Entry System |
| 32 | 20A Driver’s window regulator |
| 33 | 20A Front passenger window regulator |
| 34 | 20A Driver’s side rear window regulator |
| 35 | 20A Rear passenger side window regulator |
| 36 | 20A Electric sliding driver’s seat (option) |
| 37 | 7.5A Accessories (additional power consumers) |
| 38 | – |
| 39 | 10A Left headlight high beam |
| 40 | 20A Front accessory power outlet (console panel) |
| 41 | 10A Driver’s side rear door lock |
| 42 | 20A Door lock |
| a | 7.5A Audio (optional) |
| b | 20A ACM (optional) |
| c | 15A Rear seat heaters (option) |
| d | 20A Premium Amplifier (optional) |
| and | – |
| f | – |
| g | 20A Passenger seat with electric tilt (option) |
| h | 20A Electric sliding passenger seat (option) |
Fuses 40 and 14 at 20A are responsible for the cigarette lighter.
Block under the hood

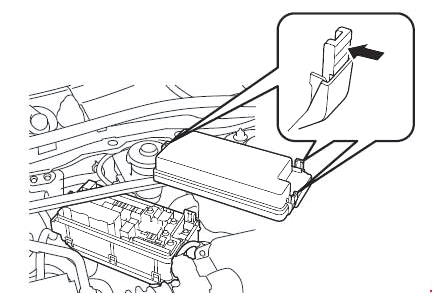

Under the hood, the main fuse and relay box is located next to the brake master cylinder reservoir. To access the box, press to remove the cover by pressing the latches.

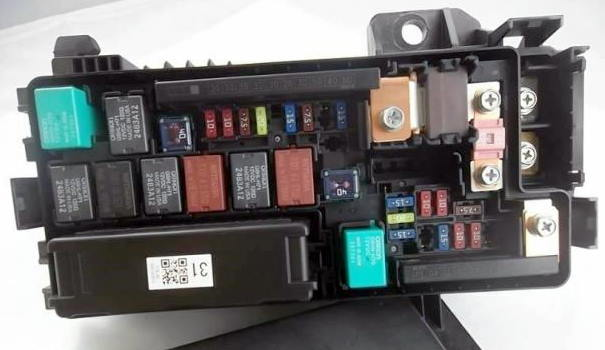

The fuse and relay block itself will look like this.

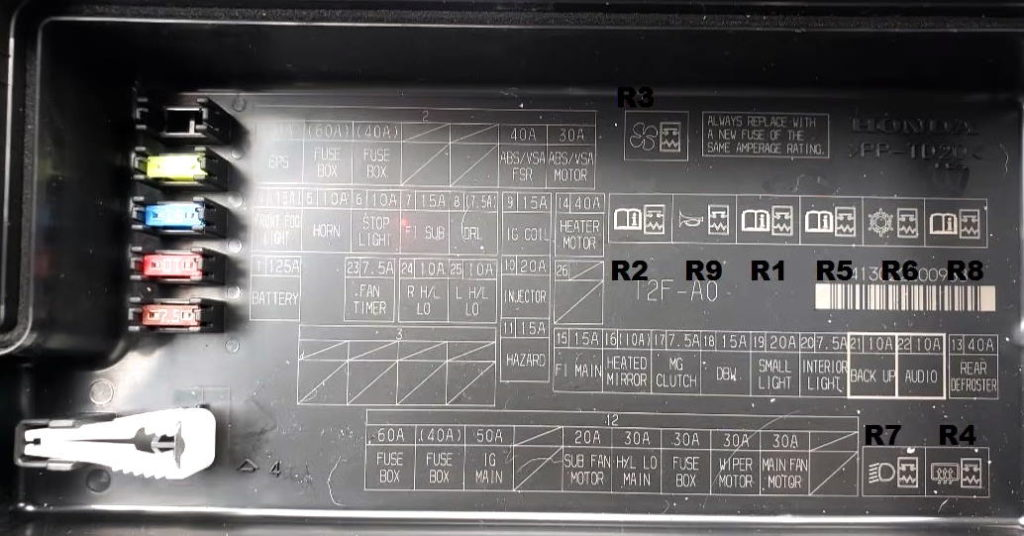

Example of a circuit from the block cover
Relay designation
- R1 – MAIN RELAY 1
- R2 – FIRE COIL RELAY
- R3 – FAN MOTOR RELAY
- R4 – REAR HEATER RELAY
- R5 – ETCS CONTROL RELAY
- R6 – AIR CONDITIONING COMPRESSOR CLUTCH RELAY
- R7 – HEADLAMP LOW BEAM RELAY
- R8 – PGM-FI SUBRELAY
- R9 – SIGNAL RELAY

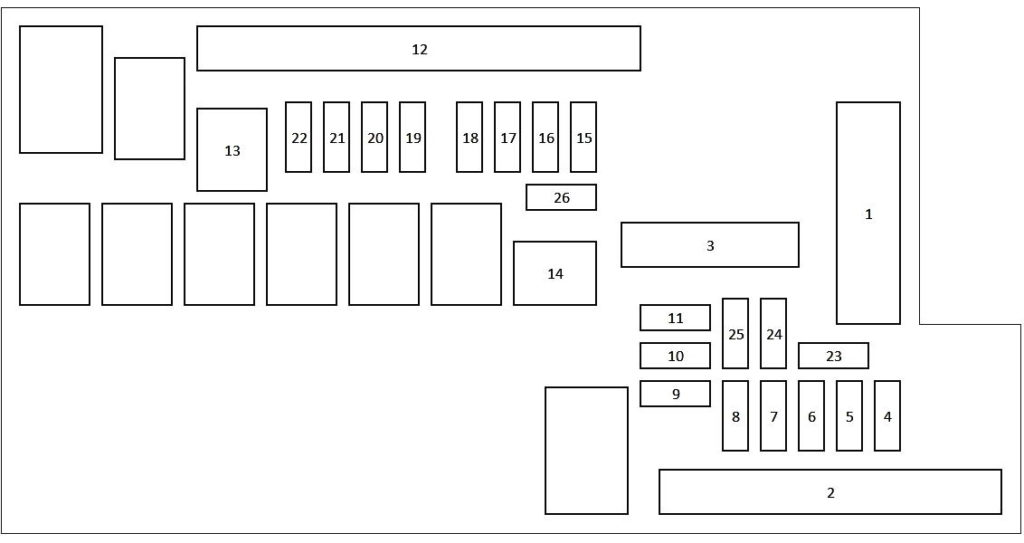

Fuse diagram
Appointment
| 1 | 125A Main fuse (battery) |
| 2 | Electric power steering |
| 2 | 60A Main fuse block 1 |
| 2 | 40A Fuse Block Option 1 |
| 2 | Main fuse block 2 |
| 2 | 20A ABS/VSA FSR |
| 2 | 40A ABS/VSA Engine |
| 3 | – |
| 3 | – |
| 3 | – |
| 3 | – |
| 4 | 10A Front fog lamp (models with smart entry system have ENGINE START/STOP button instead of ignition switch) |
| 5 | 10A Signal |
| 6 | 10A Brake light |
| 7 | 15A FI Sub |
| 8 | 7.5A Daytime running lights |
| 9 | 15A Ignition coil (IG) |
| 10 | 20A Injector (4-cyl.) / – (6-cyl.) (Injector) |
| 11 | 15A Emergency alarm |
| 12 | 60A Main fuse block 2 |
| 12 | 40A Fuse Block, Option 2 |
| 12 | 30/50A IG Main 1 |
| 12 | 30A IG Main 2 (Models with intelligent entry system) |
| 12 | 20/30A Auxiliary fan motor |
| 12 | 30A Main dipped beam headlights |
| 12 | 30A Fuse Block |
| 12 | 30A Wiper motor |
| 12 | 30A Main fan motor |
| 12 | 30A Starter (Models with smart entry system) |
| 13 | 40A Rear heater |
| 14 | 40A Heater motor |
| 15 | 15A Fuel injection system |
| 16 | 10A Heated mirrors / Headlight washer |
| 17 | 7.5A MG clutch |
| 18 | 15А DBW |
| 19 | 20A Low beam (dimensions) |
| 20 | 7.5A Interior light |
| 21 | 10A Reversing light |
| 22 | 10A Audio |
| 23 | 7.5A Fan Timer |
| 24 | 10A Right headlight low beam |
| 25 | 10A Left headlight low beam |
| 26 | 7.5A ABS/VSA ECU (with LKAS) / – (without LKAS) |
