Honda Civic 10 generation was produced in 2016, 2017, 2018, 2019, 2020, 2021 with sedan, hatchback and coupe bodies and was supplied worldwide. During this time, the model underwent a facelift. In our material you will find a description of the fuses and relays of the Honda Civic 10 with block diagrams, locations and photo examples of execution. We note the cigarette lighter fuse.
The designation of fuses and relays in the blocks may differ from the one presented. Check the designation of the elements with your diagrams.
Cabin block

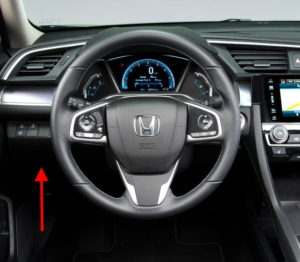

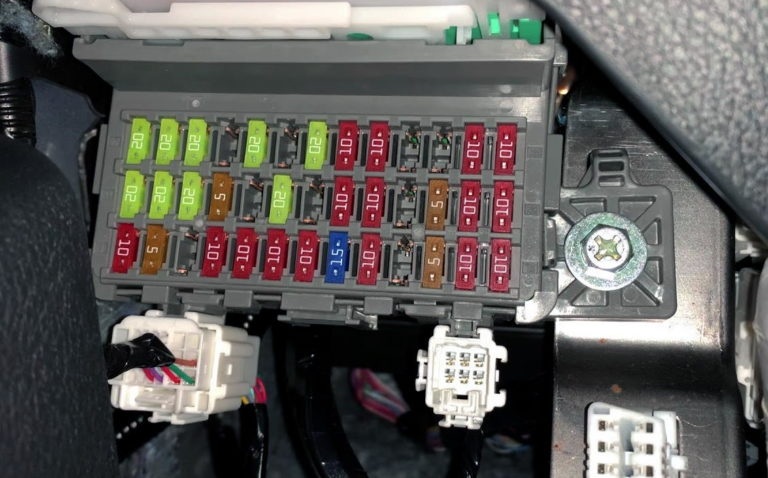

Inside the cabin, the main fuse box is located under the dashboard on the driver’s side. The diagnostic connector is also located there.

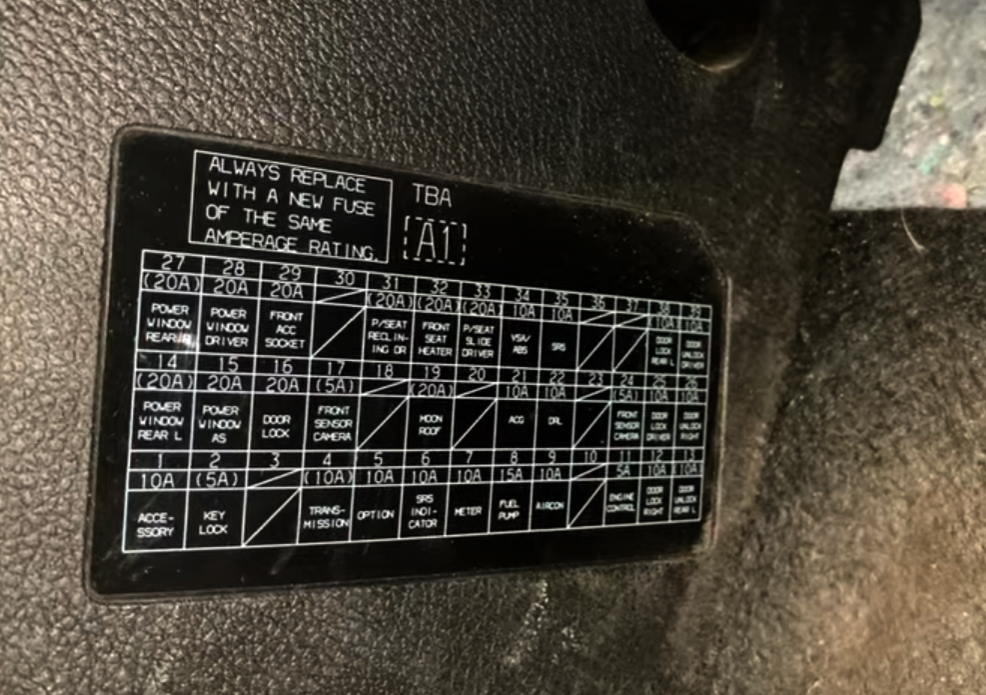

The original diagram for your car will be located on a rack under the dashboard near the driver’s left foot.
Scheme
Description
| 1 | 10 Accessory |
| 2 | 5A Key lock |
| 3 | – |
| 4 | 5/10A Front sensor camera, transmission |
| 5 | 10A Option |
| 6 | 10A SRS indicator |
| 7 | 10A Devices |
| 8 | 15A Fuel pump |
| 9 | 10A Air conditioner |
| 10 | − |
| 11 | 10A Engine control |
| 12 | 10A Passenger door lock |
| 13 | 10A Unlocking the rear door on the driver’s side |
| 14 | 20A Driver’s side rear window regulator |
| 15 | 20A Front passenger window regulator |
| 16 | 20A Lock |
| 17 | 5/10A Transmission, Front sensor camera |
| 18 | − |
| 19 | 20A Hatch |
| 20 | − |
| 21 | 10A ACG (ignition) |
| 22 | 10A Daytime running lights |
| 23 | − |
| 24 | 5A Front sensor camera |
| 25 | 10A Driver’s door lock |
| 26 | 10A Passenger side door unlocking |
| 27 | 20A Rear passenger window regulator |
| 28 | 20A Driver’s window regulator |
| 29 | 20A Front accessory socket, cigarette lighter |
| 30 | 10A Smart Input |
| 31 | 20A Driver’s seat with electric tilt |
| 32 | 20A Front seat heating |
| 33 | 20A Electric sliding driver’s seat |
| 34 | 10A VSA/ABS |
| 35 | 10A SRS |
| 36 | − |
| 37 | − |
| 38 | 10A Driver’s side rear door lock |
| 39 | 10A Driver’s door unlock |
Fuse number 29 at 20A is responsible for the cigarette lighter.
Block under the hood

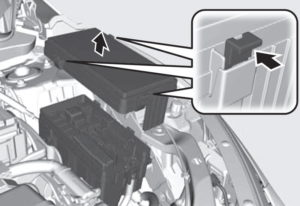

Under the hood, the main unit with fuses and relays is located on the left side and is covered by a protective cover.

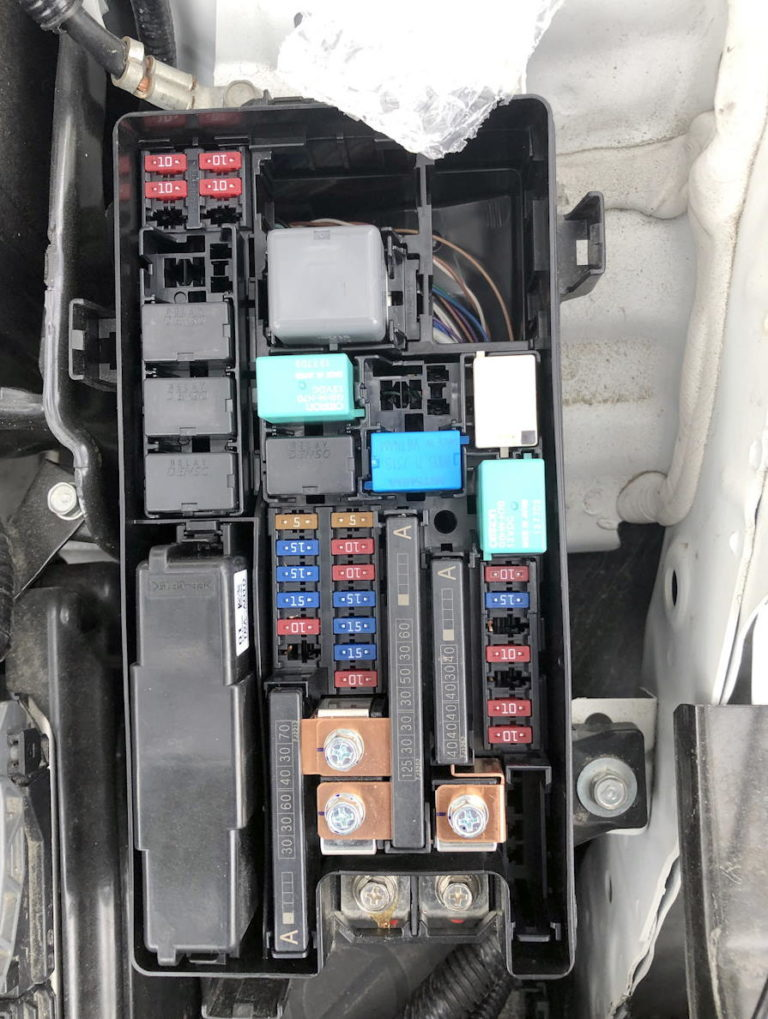

The block itself will look something like this.

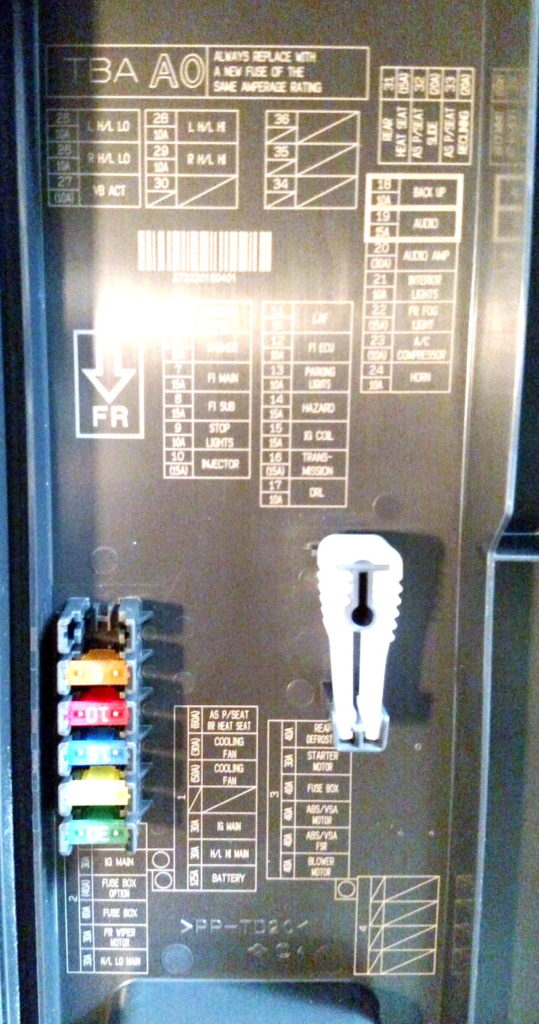

Block cover diagram

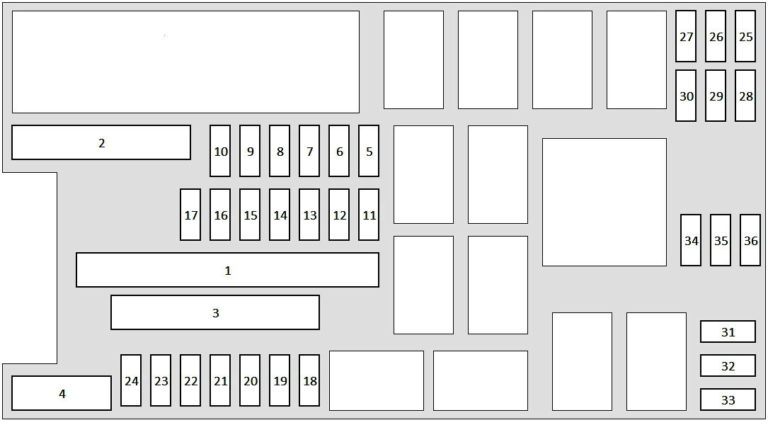

Scheme
Marking
| 1 | 60A Power passenger seat / Rear seat heating |
| 30A Cooling fan | |
| 50A Cooling fan | |
| – | |
| Main IG | |
| – | |
| 30A Main beam headlight | |
| 125A Battery | |
| 2 | 70A EPS |
| 30A IG Home | |
| 50A | |
| 40A Option (fuse blocks) | |
| 60A Fuse Block | |
| 30A Front wiper motor | |
| 30A Main dipped beam headlights | |
| 3 | 40A Rear deicer |
| 30A Starter | |
| – | |
| 40A Fuse Block | |
| 40A ABS/VSA Engine | |
| 40A ABS/VSA FSR | |
| 40A Fan motor | |
| 4 | – |
| 5 | 5A Cooling fan |
| 6 | 15A Washer |
| 7 | 15A Main fuel injection |
| 8 | 15A Fuel injection sub |
| 9 | 10A Stop signals |
| 10 | 15A Injector |
| 11 | 5A LAF |
| 12 | 10A Engine ECU |
| 13 | 10A Parking lights |
| 14 | 15A Emergency alarm |
| 15 | 15A Coil IG |
| 16 | 15A Transmission |
| 17 | 10A Daytime running lights |
| 18 | 10A Reversing light |
| 19 | 15A Audio |
| 20 | 30A Audio Amplifier |
| 21 | 10A Interior lighting |
| 22 | 15A Front fog lights |
| 23 | 10A Air conditioner compressor |
| 24 | 10A Signal |
| 25 | 10A Left headlight low beam |
| 26 | 10A Right headlight low beam |
| 27 | 10A VB ACT |
| 28 | 10A Left headlight high beam |
| 29 | 10A Right headlight high beam |
| 30 | – |
| 31 | 15A Rear seat heaters |
| 32 | 20A Electric sliding passenger seat |
| 33 | 20A electric reclining passenger seat |
| 34 | – |
| 35 | – |
| 36 | – |
