The first generation Porsche Panamera (970 body), produced from 2010 to 2016, is equipped with several fuse blocks that protect the vehicle’s electrical systems. Depending on the equipment, engine type (petrol, diesel or Hybrid) and year of manufacture, the location of individual fuses and their purpose may vary slightly.
On this page you will find fuse block layout diagrams, tables with numbers, ratings and a detailed description of the purpose of each fuse and relay for the Porsche Panamera 970 2010, 2011, 2012, 2013, 2014, 2015 and 2016 models . This will help you quickly find a faulty fuse and replace it.

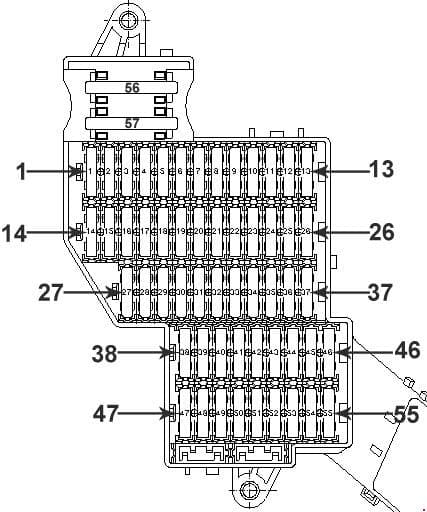

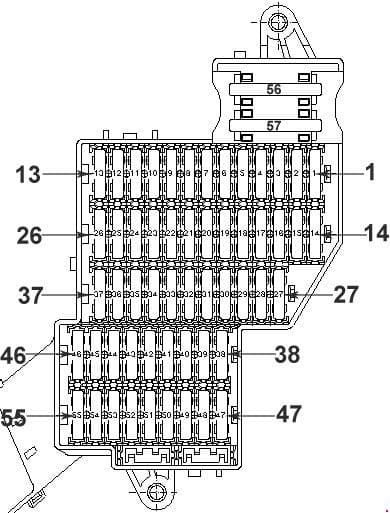

Driver’s side fuse box diagram on the instrument panel. Porsche Panamera (2010–2016)
Fuse No.
Par
Appointment
F1
7,5 A
Steering wheel switch
F2
7,5 A
Instrument panel
F3
10 A
PCM 3.1 multimedia system / CDR 31 radio
F4
5 A
Additional instrument panel
F5
10 A
Front and rear air conditioning
F6
5 A
Rear view camera / Surround View system (2014–2016)
F7
5 A
Electronic parking brake button
F8
10 A
Central locking of the rear left door (LHD) / left door (RHD)
Interior mirror, OBD diagnostic connector, ParkAssist, front camera
F16
5 A
PDK clutch sensor (LHD) / air conditioning sun sensor (RHD)
10 A
Hybrid: transmission control unit and gear selector
F17
5 A
Hybrid: power electronics, spindle drive
F18
5 A
Hybrid: electric power steering
F19
5 A
PDLS / PDLS Plus control unit
F20
5 A
Ignition switch and light switch (LHD) / TV tuner (RHD)
F21
10 A
Central locking system for the front left door (2010–2013)
25 A
Central locking system for the front left door (2014–2016)
5 A
Mobile phone charger (RHD)
F22
5 A
Steering column lock
F23
30 A
Right rear turn signal, left side marker, right low/high beam, turn signals, horn, PSM, starter relay, hazard warning light, ignition switch light, footwell light, power steering valves, washer nozzle heating
F24
30 A
Left rear turn signal, right dimensions, left low/high beam, turn signal, active brake ventilation, injector heating, hood lock, headlight range adjuster
Fuse box diagram in the trunk of a Porsche Panamera (2010–2016)
Panamera S E-Hybrid
Fuse block A
Fuse No.
Par
Appointment
A1
—
Not used
A2
10 A
Spoiler drive (Turbo, 2014–2016)
A3
30 A
Burmester audio amplifier (2010–2013)
25 A
ASK Sound / Bose audio system amplifier (2010–2013)
A4
30 A
Start/Stop system control unit
A5
30 A
Start/Stop system control unit
A6
10 A
Differential lock
A7
30 A
Differential lock
25 A
Hybrid: ASK Sound / Bose audio system amplifier (2014–2016)
A8
30 A
Subwoofer (Bose / Burmester)
A9
25 A
Electric trunk lid drive
A10
25 A
PASM system control unit
A11
25 A
Luggage compartment lighting
A12
10 A
PDCC system control unit
Fuse block B
Fuse No.
Par
Appointment
B1
15 A
Right daytime running lights, right tail light, right reversing light, left rear fog light, right brake light, additional brake light, electric sun blind, steering column lock, rear wiper, rear window heating, security system sensors, PASM, engine control unit, door illumination, interior lighting, license plate illumination
B2
15 A
Left daytime running lights, left tail light, left reversing light, right rear fog light, left brake light, rear door lighting, exhaust flap control, fuel filler flap, rear spoiler extension/retraction
B3
30 A
Trunk lid lock, fuel tank flap opening, electric rear spoiler, electric sunroof
