Fuses and relays Alfa Romeo MiTo 2008 – 2013. Fuse diagram Alfa Romeo MiTo 2008 – 2013.

Alfa Romeo MiTo (first generation, 2008–2013) has several fuse blocks:

1. Fuse box in the passenger compartment
   • located under the instrument panel on the driver’s side (near the bottom of the dashboard);
   • is responsible for most of the cabin’s electricity.
2. Block in the engine compartment
   • located near the battery ;
   • contains power fuses and relays.
3. Unit near the battery (in some versions)
   • protects the main power circuits.

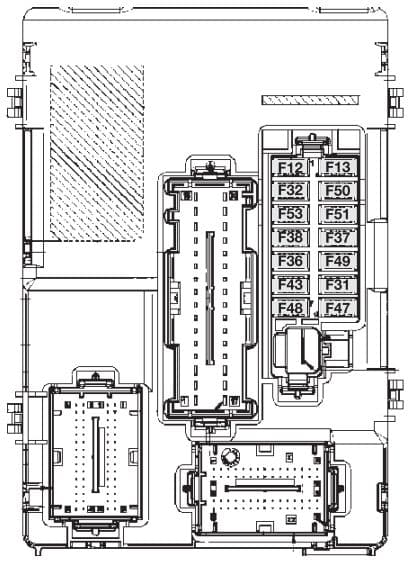

Alfa Romeo MiTo interior fuse box

Fuse	Amperage	Appointment
F12	7,5 A	Right headlight low beam
F13	7,5 A	Left headlight dipped beam
F16	7,5 A	Engine control unit
F20	30 A	Window regulators
F21	15 A	Fuel pump
F22	20 A	Central lock
F23	20 A	Sunroof (if equipped)
F24	7,5 A	ABS/ESP system
F25	10 A	Airbags
F30	5 A	Air conditioning
F31	5 A	Instrument panel

Fuse box in the luggage compartment Alfa Romeo MiTo

Fuse	Amperage	Appointment
F01	70 A	Body unit power supply
F02	60 A	Electric cooling fan
F03	30 A	Ignition switch
F04	40 A	ABS
F05	30 A	ABS hydraulic unit
F06	40 A	Interior fan
F07	40 A	Heated rear window
F08	20 A	Starter systems
F10	15 A	Horn
F11	10 A	Engine control system

Alfa Romeo MiTo Реле Alfa Romeo MiTo

Relay	Appointment
T01	Cooling fan
T02	Fuel pump
T03	Air conditioner compressor
T04	Headlights
T05	Starter

Typical problems associated with Alfa Romeo MiTo fuses:

• the power windows do not work → check F20;
• the air conditioner does not turn on → F30 and the compressor relay;
• the engine does not start → F08, F11, starter relay;
• fuel pump does not work → F21;
• ABS/ESP lights up → F04–F05.

Location and numbers may vary depending on year, engine (1.3 JTD, 1.4 petrol, MultiAir, T-Jet) and equipment.
