Ferrari California 2008 – 2014 Fuses and Relays. Ferrari California 2008 – 2014 Fuse Diagram.

The Ferrari California (2008–2014) has several fuse and relay blocks that are responsible for the operation of the car’s electronic systems: engine, lighting, air conditioning, multimedia, security and comfort systems.

The main fuse blocks are located:

• in the car interior – for comfort systems and electronic control units;
• in the engine compartment – for power consumers, engine and cooling systems;
• in the luggage compartment – for rear electrical systems.

This page shows the location of the Ferrari California fuses, their numbers, ratings (A) and the purpose of each element.

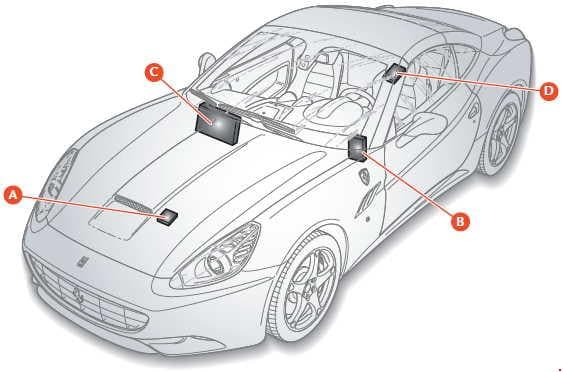

Marking	Description
A	Fuses and relays in the engine compartment
B	Fuses and relays of the body control unit (Body Computer)
C	Fuses and relays in the passenger compartment on the passenger side
D	Fuses and relays in the passenger compartment in the center console

Ferrari California (2008–2014) Fuse and Relay Box – Block B (Body Computer)

Fuse No.	Par	Appointment
F12	15 A	Right high beam headlight
F13	15 A	Left high beam headlight
F31	7,5 A	Air conditioner unit, body control unit connector (Body Computer)
F32	10 A	Interior lighting, foot and door lighting, side marker lights, additional rear lights
F35	7,5 A	Clutch pedal sensor, cruise control, electric power steering, headlights
F36	10 A	Satellite security system, parking sensors, fuel filler flap
F37	10 A	Brake light control
F38	15 A	Trunk lid lock
F39	15 A	Radio system, OBD diagnostic connector, CAN bus interface
F40	30 A	Heated rear window
F42	7,5 A	Generator
F43	30 A	Windshield wipers
F44	20 A	Passenger seat heating, cigarette lighter
F46	20 A	Hard Top
F47	30 A	Driver’s door electrics
F48	30 A	Passenger door electrics
F49	7,5 A	Interior lighting switches and controls
F50	7,5 A	Airbag system
F51	7,5 A	Semi-automatic transmission, engine start button
F52	15 A	Electrical socket, heated driver’s seat
F53	10 A	Instrument panel

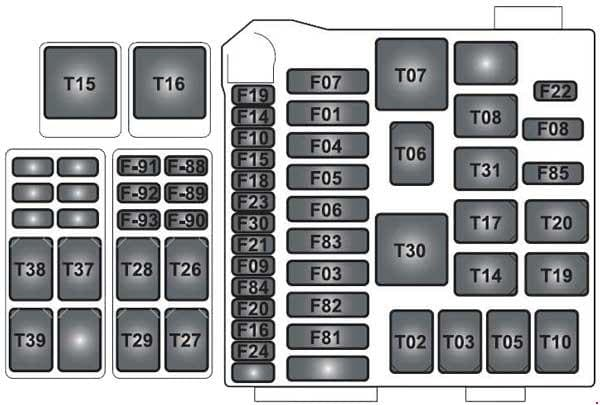

Passenger side fuses and relays

Fuse No.	Par	Appointment
F01	60 A	Radiator fans (first speed)
F02	30 A	ABS (valves)
F03	30 A	Ignition switch
F04	50 A	ABS (pump)
F05	40 A	Air conditioning and heating system
F06	50 A	Radiator fans (second speed)
F07	20 A	Horn (sound signals)
F08	7,5 A	Air conditioner compressor
F09	7,5 A	Additional brake lights
F10	15 A	Trunk lock relay
F11	25 A	Oxygen sensors of the left bank of cylinders
F14	15 A	High beam headlights
F15	7,5 A	Generator voltage control
F16	25 A	Power supply to the engine control unit of the right bank of cylinders
F17	25 A	Power supply to the engine control unit of the left bank of cylinders
F18	10 A	Power supply for the injection system of the left bank of cylinders, main injection relay
F19	10 A	Power supply for the injection system of the right bank of cylinders, main relay coil
F20	30 A	Main relay of the injection system, right row
F21	15 A	Fuel pump #2
F22	15 A	Ignition coils of the left bank of cylinders
F23	10 A	ABS electronic unit
F24	15 A	Ignition coils of the right bank of cylinders
F30	30 A	Starter relay
F81	40 A	Additional power supply for electronic control units
F82	70 A	Power supply to the instrument panel control unit and trunk unit
F83	50 A	Air pump relay
F84	15 A	Fuel pump relay #1
F85	25 A	Omivac headlights
F87	25 A	Oxygen sensors of the right bank of cylinders
F88	10 A	Power supply to the injection system of the left bank of cylinders
F93	30 A	Suspension control unit

Ferrari California Relay

Marking	Par	Appointment
T02	30 A	High beam relay
T05	30 A	Fuel pump relay #2
T06	30 A	Trunk lock actuator relay
T07	50 A	Horn relay
T08	30 A	Air conditioner compressor relay
T09	30 A	Main injection relay for the left bank of cylinders
T10	30 A	Main injection relay for the right bank of cylinders
T14	30 A	Fuel pump relay #1
T15	50 A	Radiator fan relay (second speed)
T16	50 A	Radiator fan relay (first speed)
T17	10 A	INT/A relay (devices operating without ignition)
T19	30 A	Brake light control relay
T20	30 A	Starter relay
T26	30 A	Wiper relay (first speed)
T27	30 A	Wiper relay (second speed)
T28	30 A	Windshield washer pump relay
T29	30 A	Auxiliary brake light relay
T30	50 A	Air pump relay
T31	30 A	Headlight washer pump relay
T37	30 A	Left additional tail light relay
T38	30 A	Power supply for the left headlight LED module
T39	30 A	Power supply for the right headlight LED module

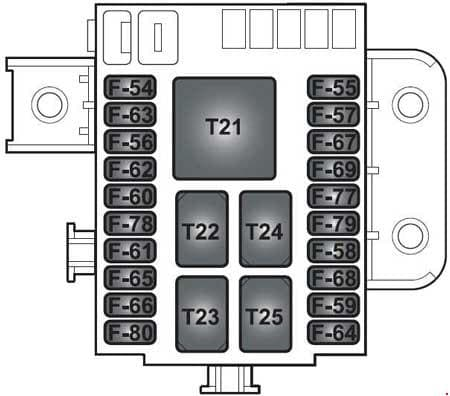

Ferrari California (2008–2014) Fuse and Relay Box – Interior Unit (Passenger Area / Center Console)

Fuse No.	Par	Appointment
F54	20 A	Hi-Fi audio system amplifier
F56	30 A	Driver’s seat power supply
F57	7,5 A	Side marker lights #1 (front left and rear right)
F59	7,5 A	Reversing lights
F60	30 A	Passenger seat power supply
F61	7,5 A	Electronic driver’s seat systems
F62	7,5 A	Electronic passenger seat systems
F63	15 A	Semi-automatic transmission main relay
F64	7,5 A	Fuel tank flap drive
F65	20 A	Door lock drive
F66	7,5 A	Semi-automatic gearbox
F67	7,5 A	Side marker lights No. 2 (front right and rear left)
F78	15 A	Battery charger
F80	30 A	BassBox Amplifier

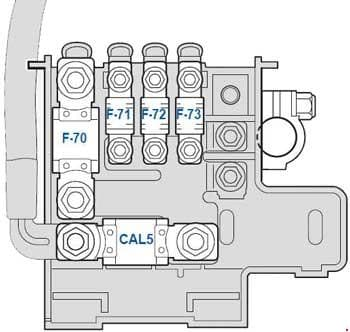

Ferrari California (2008–2014) power fuse box

Marking	Par	Appointment
CAL2	CAL2	Main power supply for starter and generator
F70	150 A	Power supply of power circuits and motor relays
F71	40 A	Hard Top Pump
F72	40 A	Electric parking brake power supply
F73	70 A	Power supply for the dashboard electronic control unit (Dashboard ECU)

Note:
The purpose of the terminals, connectors and wiring may vary depending on the Ferrari California equipment, year of manufacture and market for which the vehicle is manufactured. Before replacing the power fuses, it is necessary to use a fuse with the same rating.
