The 3rd generation Ford Galaxy has been gathering since 2016. Years of issue 2017, 2018, 2019, 2020, 2021 and present. In this post, we will show the location of the blocks and the description of the fuses and relays of the 3rd generation Ford Galaxy, with diagrams and their photos. Indicate the fuses that are responsible for the cigarette lighter.
The actual purpose of fuses and relays may differ from the one presented and depends on the year of manufacture and the level of electrical equipment of your car.

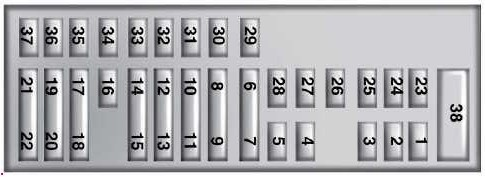

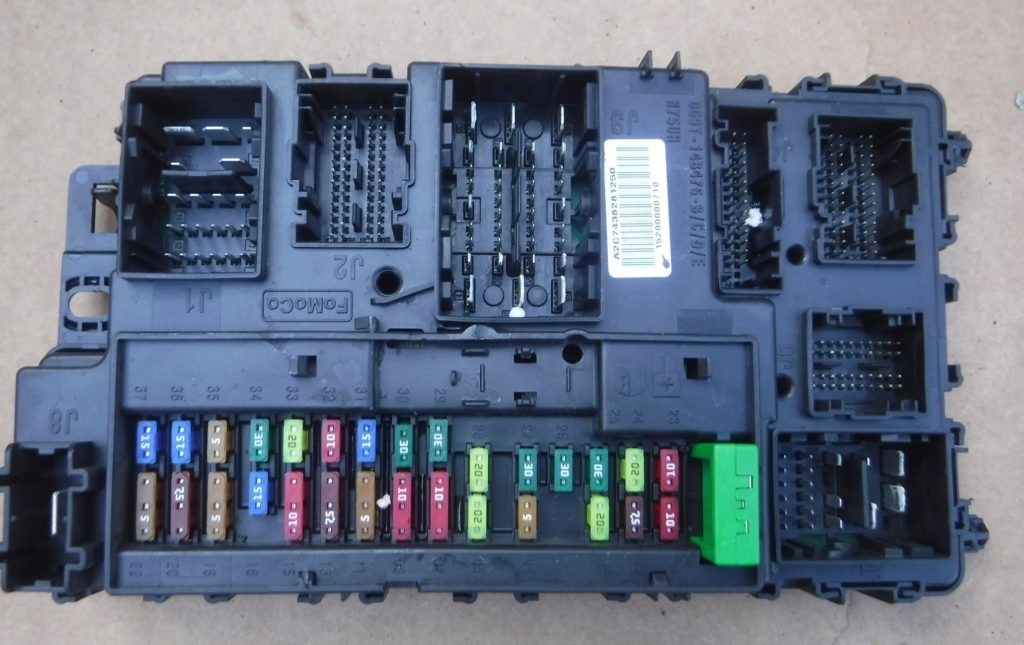

Cab block

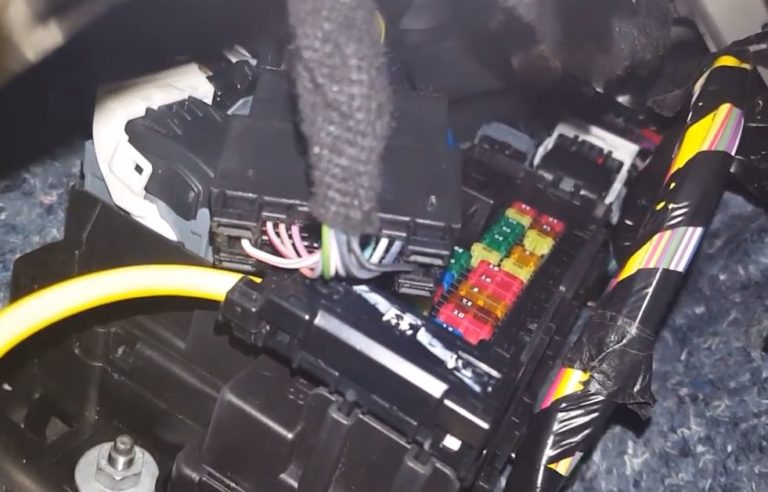

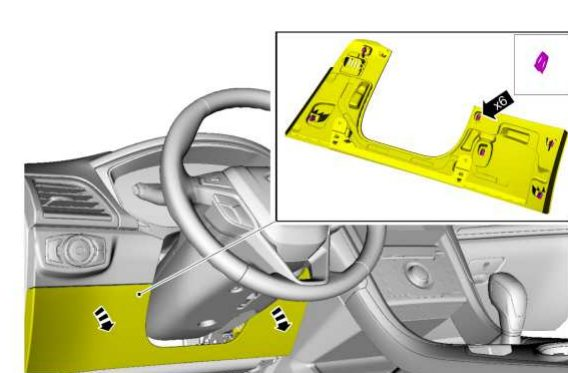

It is located on the dashboard on the left side and is connected to BCM (body control module). For easy access, you need to remove part of the protection.
| 1 | 10A Background Lighting, Glove Glass Lantern, Cosmetic Mirror Lantern, Ceiling Lamp, Luggage Box |
| 2 | 7.5A Seats with PAM functionyati, lower support of the driver’s seat back, electric mirrors |
| 3 | 20A Unlocking the driver’s door |
| 4 | 5A Electronic Trailer Brake |
| 5 | 20A Ignition Lock, Start Button |
| 6 | 10A heated seats |
| 7 | 10A reserve |
| 8 | 10A reserve |
| 9 | 10A reserve |
| 10 | 5A rear door power supply module |
| 11 | 5a reserve |
| 12 | 7.5 A integrated front control module (Climate Control System and Radio Receiver) |
| 13 | 7.5A steering column, dashboard, diagnosticЕМ |
| 14 | 10A reserve |
| 15 | 10A Data Channel Gateway |
| 16 | 15A Children’s Lock, Unlocking the luggage compartment lift window |
| 17 | 5a reserve |
| 18 | 5A Ignition Lock, Ignition Lock Button |
| 19 | 7.5A Passenger airbag shutdown indicator, gear range indicator |
| 20 | Reserve 7.5 A |
| 21 | 5A Car Humidity and Temperature Sensor, Blind/Dead Zones Monitoring Systems, Rear View Camera, Adaptive Cruise Control System |
| 22 | 5A Passenger Classification Sensor |
| 23 | 10A Scheme of power supply of auxiliary equipment with shutdown delay |
| 24 | 20a short circuit/opening |
| 25 | 30A driver’s door window, driver’s door mirror |
| 26 | 30A front passenger door window, front passenger door mirror |
| 27 | 30a Luka |
| 28 | Amplifier 20A |
| 29 | 30A rear door window on driver’s side |
| 30 | 30A rear door glass on passenger side |
| 31 | 15A reserve |
| 32 | 10A Global Positioning System Module, Voice Control (SYNC), Infotainment Display, Radio Frequency Radio, Adaptive Cruise Control |
| 33 | 20A radio |
| 34 | 30A start/work bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A Airbag Control and Air Band Control Module |
| 36 | 15A Rearview mirror automatic dimming, rear-seat heating module, all-wheel drive system |
| 37 | Voltage Stabilization Module 15A |
| 38 | 30A is not used |

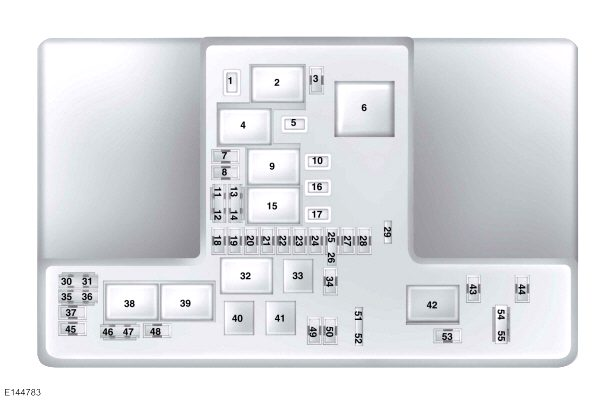

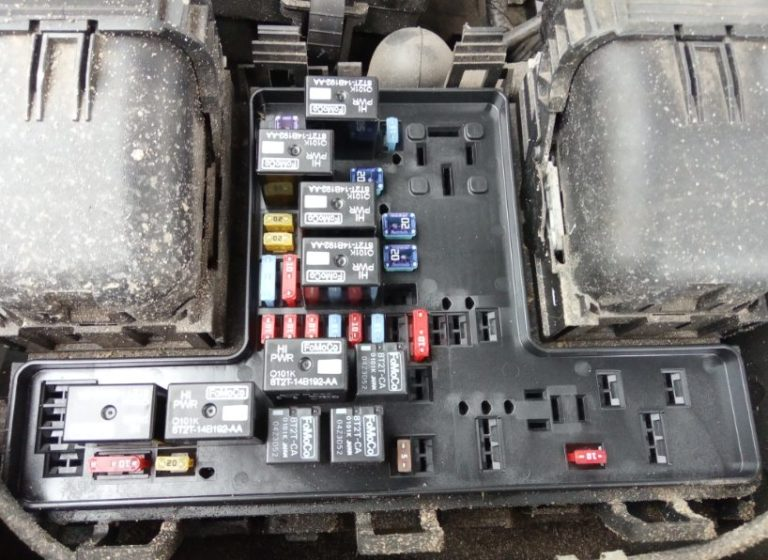

Block under the hood

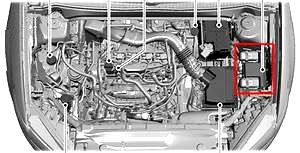

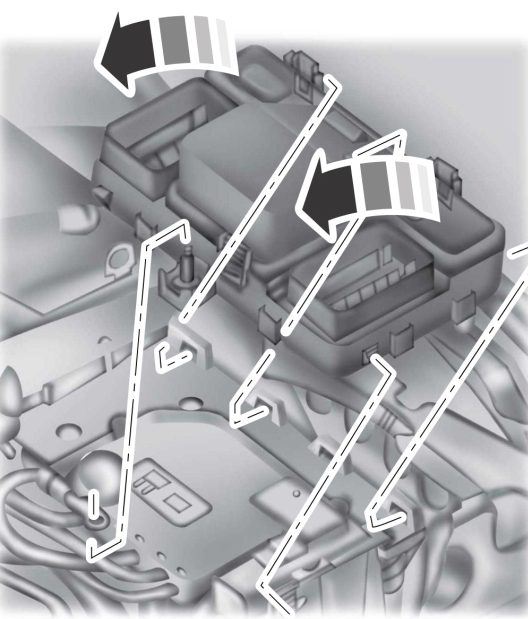

It consists of 2 compartments and is located on the left side, next to the rack, and covered with a protective cover.
| 1 | 25A Wiper 30A Hatch |
| 2 | Starter relay |
| 3 | 15A Automatic windshield wiper, rain sensor, rear wipers |
| 4 | Electric fan relay. |
| 5 | Optional 20A socket on the back of the console |
| 6 | Auxiliary heater relay |
| 7 | 20A power unit control module |
| 8 | 20A power unit control module |
| 9 | Power unit control module relay |
| 10 | 20A additional driver power sockets |
| 11 | 15A Power Unit Control Module |
| 12 | 15A Power Unit Control Module |
| 13 | 10A Power Unit Control Module |
| 14 | 10A Power Unit Control Module |
| 15 | Start / start relay |
| 16 | Optional 20A socket on the console, Cigarette lighter |
| 17 | Extra socket 20A in the luggage compartment |
| 18 | 10A Power Unit Control Module |
| 19 | 10A power steering |
| 20 | 10A Lighting Position Start/Stop, Cruise Control |
| 21 | 15A transmission control module, transmission oil pump |
| 22 | 10A Air Conditioning System |
| 23 | 15A. start/stop, blind spot warning system, rear view camera, adaptive cruise control, proximity alert, power quality module, air quality sensor |
| 24 | 10A reserve |
| 25 | 10A Anti-lock braking system, ABS |
| 26 | 10A power unit control module. |
| 27 | 10A reserve |
| 28 | 10A Rear window washer pump. |
| 29 | 5A Air flow meter |
| 30 | Reserve |
| 31 | Reserve |
| 32 | Cooling fan relay |
| 33 | Air conditioner relay |
| 34 | 15A Electric steering column lock. |
| 35 | Reserve |
| 36 | Reserve |
| 37 | Reserve |
| 38 | Cooling fan relay |
| 39 | Cooling fan relay |
| 40 | Relay beep |
| 41 | Relay beep |
| 42 | Fuel pump relay |
| 43 | Christmas |
| 44 | 5a heater of the washer spray. |
| 45 | Reserve |
| 46 | Generator 10A |
| 47 | 10A brake switch |
| 48 | 20A beep |
| 49 | 5A Air flow sensor 20A Diesel engine heating element |
| 50 | 10A Cooling System Fan, Distribution Box 20A Signal |
| 51 | Reserve |
| 52 | Reserve |
| 53 | 10A Electric seats. |
| 54 | 5A Remote Heater Powered by Fuel, 10A Brake Switch |
| 55 | Alt 10A sensor |
Fuses 17, 16, 10 and 5 by 20 A are responsible for the operation of cigarette lighters and USB-roseЕМИ.

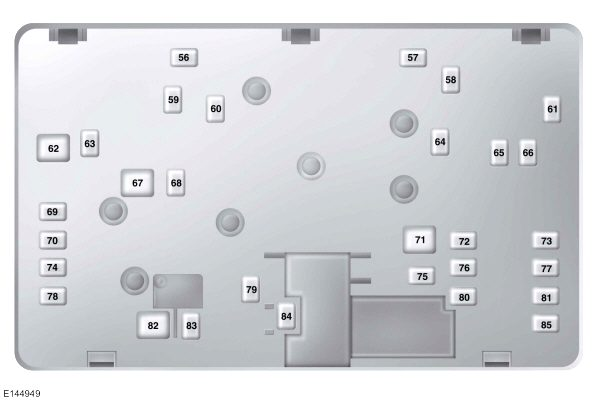

| 56 | 30A Fuel pump |
| 57 | 20A diesel evaporator |
| 58 | Reserve |
| 59 | 30/40A cooling system fan (DW10F and 2.0L GTDI AU) |
| 60 | 30/40A cooling system fan (DW10F and 2.0L GTDI AU) |
| 61 | 40A Windshield Heater (Left) |
| 62 | 50A Body System Control Unit |
| 63 | 20/30A cooling system fan (DW10F and 2.0L GTDI AU) |
| 64 | 30A Additional heater |
| 65 | 20A. Heated front seats |
| 66 | 40A windshield heater (right side) |
| 67 | 50A Body System Control Unit |
| 68 | 40A rear window heating |
| 69 | 30A Anti-lock braking system |
| 70 | 30A passenger seat |
| 71 | 60A Additional heater |
| 72 | 20A Fuel Pump 30A Roof Hatch or Rear Seat |
| 73 | 20A rear seat heating |
| 74 | 30A driver’s seat module |
| 75 | 30A Additional heater |
| 76 | 20A transmission oil pump |
| 77 | 30A Climate Control Seat Module |
| 78 | 40A trailer towing module |
| 79 | 40A electric fan. |
| 80 | 30A power supply module in the luggage compartment. |
| 81 | 40a Inverter 220 v. |
| 82 | 60A Anti-lock braking system. |
| 83 | 25A Electric cleaner motor |
| 84 | 30A starter solenoid. |
| 85 | 20A Fuel Heater 60A Anti-lock Brake System |
