Ford Edge is a mid-size crossover that has been produced since 2006 to the present in 2 generations. In our publication, we will provide information on fuse and relay units of the 1st generation Ford Edge, which was produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015.

Check the actual purpose of the fuses and relays with the technical documentation or description on the back of the cover.

Block under the hood

It is located under the hood on the left side, next to the battery, under a protective cover.

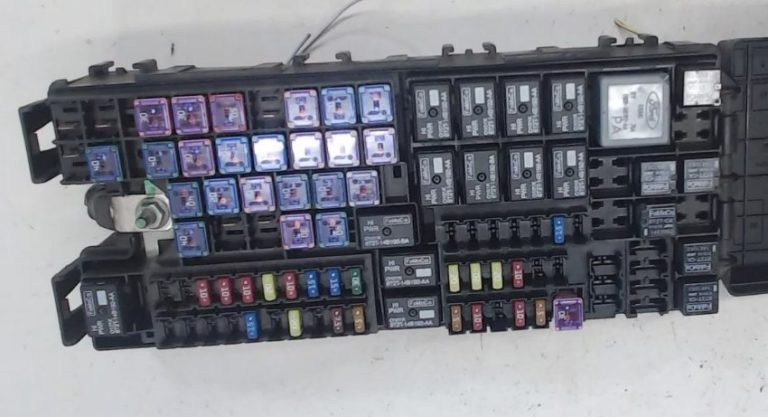

Photo – an example

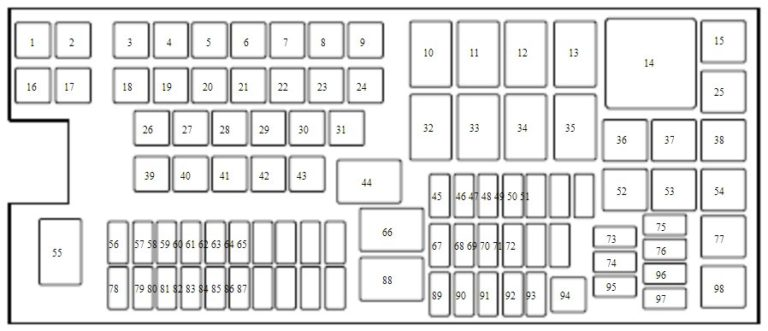

Description

  1. not used
  2. not used
  3. not used
  4. 30 A – Scale Cleaners
  5. 40 A – Pump of the anti-lock braking system (ABS)
  6. not used
  7. 30 A – Trunk door drive
  8. 20 A – transparent hatch
  9. 20 A – Power Socket 2 (Rear of the Console)
  10. not used
  11. Relay heating relay and mirror heating
  12. not used
  13. Starter relay
  14. not used
  15. Fuel pump relay
  16. not used
  17. not used
  18. 40 A – front fan motor
  19. 30 A – starter
  20. 20 A – socket 1 (front of the console)
  21. 20 A – socket (luggage compartment)
  22. not used
  23. 30 A Driver’s Seat
  24. not used
  25. not used
  26. 40 A – Heating of the rear window
  27. 20 A – socket in the front of the cabin or cigarette lighter
  28. 30 A – Climate Control Seats
  29. not used
  30. not used
  31. not used
  32. not used
  33. not used
  34. Fan Engine Relay
  35. not used
  36. rear seat unlock relay
  37. Right turn signal relay/stop signal trailer
  38. not used
  39. 40 A – Fan of cooling system (on cars with towbar) 60 A – fan of cooling system (on cars without tow bar)
  40. 40 A – cooling system fan (on car with tow bar)
  41. not used
  42. 30 A – passenger seat
  43. 25 A – Brakes Anti-Blocking System (ABS) valves
  44. Relay Washer Relay Relay
  45. 5 A – Rain Sensor
  46. not used
  47. not used
  48. not used
  49. not used
  50. 15 A Heating Mirrors
  51. not used
  52. Stop signal relay
  53. Left turn signal relay/stop signal trailer
  54. not used
  55. Slag cleaner relay
  56. 15 A – transmission control module (2.0 liter engine)
  57. 20 A – Left headlight with high-intensity gas discharge lamp
  58. 10 A – generator sensor
  59. 10 A – brake switch on/off
  60. 15 A – Stop Signals
  61. 10 A – Unlocking the rear seat
  62. 10 A – Air Conditioner Switch
  63. 15 A – Trailer turn signals/stop signals
  64. 20 A – rear window wiper motor
  65. 15 A – Fuel Pump
  66. Power unit control module relay
  67. 20 A – car power supply 2
  68. 15 A – car power supply 4
  69. 15 A – vehicle power 1 (3.5/3.7 L) 20 A – vehicle power 1 (2.0L engines)
  70. 10 A – air conditioner relay, car power 3, all-wheel drive module (3.5 / 3.7 liter engines), curtain electric drive (2.0 liter engine)
  71. not used
  72. not used
  73. not used
  74. not used
  75. Air Conditioner Switch Indicator (3.5/3.7 L)
  76. not used
  77. Trailer lighting relay
  78. 20 A – right headlight with high-intensity gas discharge lamp
  79. 5 A – Adaptive Cruise Control System
  80. not used
  81. not used
  82. 15 A – Rear window washer
  83. not used
  84. 20 A – Trailer Overhead Lights
  85. not used
  86. 7.5 A – power unit control module relay, constant power (3.5/3.7 l)
  87. 5 A – starter relay
  88. Starting relays
  89. not used
  90. 5 A – Headlight height adjustment electric motors (China only) 10 A – transmission control module relay, transmission control module (2.0 liter engine)
  91. 10 A – Adaptive cruise control system (3.5/3.7 L) 5 A –
    Automatic transmission fluid heater (2.0 liter engine)
  92. 10 A – module of the anti-lock braking system
  93. 5 A – Rear Heater/Engine Heater Relay Relay
  94. 30 A – work/launch of the fuse panel in the car interior
  95. not used
  96. Solenoid diode for purge adsorber (2.0 liter engine)
  97. Diode heater for transmission fluid for automatic transmission (2.0 liter engine)
  98. Air conditioning switch relay

The 20A 20A fuse is responsible for the front cigarette lighter.

Also on the battery itself, or rather on its positive output, there are power fuses in the form of fusible inserts.

Block in the cabin

It is located under the dashboard on the driver’s side.

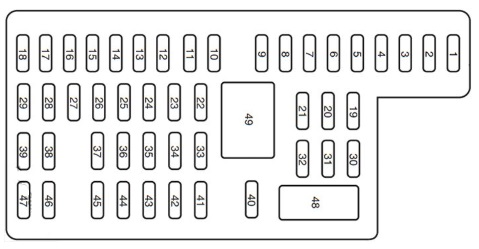

Scheme

Appointment

  1. 30 A – front smart window driver
  2. 15 A – Not used (spare)
  3. 30 A – Not used (spare)
  4. 10 A – light relay as needed
  5. 20 A – Not used (spare)
  6. 5 A – radio frequency module
  7. 7.5 A – mirror control circuit breaker, PMD seat switchYatya, driver’s seat
  8. 10 A – Not used (spare)
  9. 10 A – Trunk door drive
  10. 10 A – Relay of the operation mode/power mode of the auxiliary equipment
  11. 10 A – dashboard, top display
  12. 15 A – interior lighting, legroom lighting, lighting
  13. 15 A – right turn signals
  14. 15 A – left turn signals
  15. 15 A – Reverse lights, brake lights, upper brake lights
  16. 10 A – low beam headlights (right)
  17. 10 A – low beam headlights (left)
  18. 10 A – keyboard backlight, gearshift lock, start button operation indicator, passive anti-theft system, powertrain control module activation, second row of seats
  19. 20 A – Amplifier (Sony)
  20. 20 A – Lock/unlocking relay – for cars without intelligent access keys
  21. 10 A – Not used (spare)
  22. 20 A – sound signal relay
  23. 15 A – Steering Control Module, Intelligent Access, Headlight Switch
  24. 15 A – Onboard Diagnosis
  25. 15 A – Rear door opening mechanism
  26. 5 A – Module of the Global Positioning System (GPS)
  27. 20 A – Intelligent Access Key
  28. 15 A – ignition lock (without intelligent access system), immobilizer, engine start button (if there is an intelligent access system)
  29. 20 A – radio receiver, multifunctional information display, electronic data processing panel, Sync module
  30. 15 A – headlights, additional lights.
  31. 5 A – Not used (spare)
  32. 15 A – Lock switch backlight, hatch, electric window (driver door), compass/automatic dimming rear-view mirror
  33. 10 A – Not used (spare)
  34. 10 A – Reversing Parking Assist, Reversing Camera, Blind Spot Control System
  35. 5 A – projection display, headlight angle adjustment
  36. 10 A – Not used (spare)
  37. 10 A – climate control system (3.5 l / 3.7 engines)
  38. 10 A – Not used (spare)
  39. 15 A – high beam headlights
  40. 10 A – tail lights, license plate backlight
  41. 7.5 A – passenger classification sensor,
    Airbag Control Module and Seat Belt System
  42. 5 A – lifting assistance switch (2.0 liter engine)
  43. 10 A – Not used (spare)
  44. 10 A – Not used (spare)
  45. 5 A – Not used (spare)
  46. 10 A – climate control system
  47. 15 A – mirrors with turn signals
  48. 30 A – Automatic switch
  49. Relay Delayed Power Shutdown Relay Auxiliary Equipment
