The 2nd generation Ford Kuga was produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020. During this time, Kuga 2 has undergone restyling and since 2016 has been gathering at a plant in Russia, Yelabuga. In this article, we will show a description of fuse blocks and relays Ford Kuga 2 with diagrams and photo – examples of execution. Select the fuse that is responsible for the cigarette lighter.

The design of the blocks and the number of elements in them may differ from the one presented and depends on the year of manufacture and the level of configuration of your Ford Kuga 2.

Block under the hood

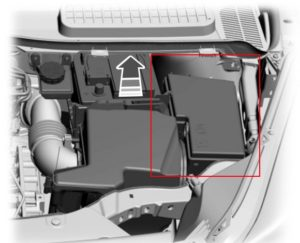

It is located on the left side of the engine compartment and is closed with a protective cover.

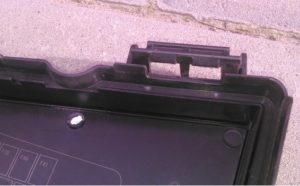

How do you remove the fuse box cover in Ford Kuga 2

In order to remove the fuse box cover under the Ford Kuga 2, you need to find the appropriate latches at the back.

Then just pull away from you. The current flowchart will be printed on the inside of the cover.

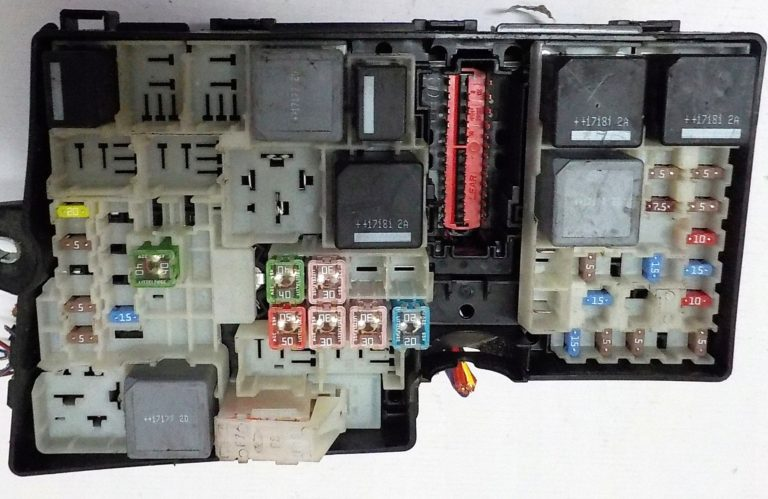

Photo – an example

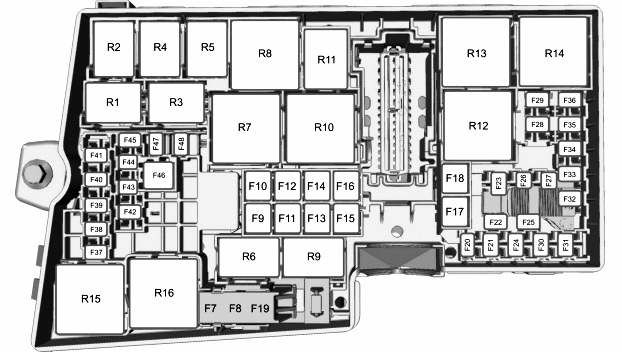

Description

F1Reserve
F2Reserve
F3Reserve
F4Reserve
F5Reserve
F6Reserve
F740A Anti-lock braking system, dynamic stability control system
F830A Electronic system of dynamic stabilization
F920A Headlight washers
F1040A Heater fan
F1130A Power Quality Module, Body Control Unit
F1230A Power Unit Control Module
F13Starter relay 30A
F1440A Right windshield heating
F1520A front cigarette lighter, additional sockets
F1640A Left windshield heating chain
F1720A Additional heater
F18Reserve
F195A anti-lock braking system, dynamic stability control system
F2015A beep
F215A brake light switch
F2215A Battery Monitoring System
F235a relay-solenoids
F245A Lighting control
F25Reserve
F265A Power supply coil relay engine (gasoline engines)
F2615A Power Supply for Engine Control System Relay (Diesel Cars), Transmission Control Systems (Diesel Cars)
F2715A Air Conditioner Compressor Coupling
F285A Adaptive cruise control system (cars with automatic start-stop system)
F2925A rear window heater
F30Reserve
F31Reserve
F3215A Engine Control Module
F3310A Motor Control Module
F3410A Motor Control Module
F3515A Engine Control Module
F365A Active Radiator Blinds
F375A passenger airbag deactivation indicator power supply indicator
F385A Motor Control Module, Transmission Control Module
F395A headlights, headlight angle adjustment
F405A Electric Power Steering
F4120A Body System Control Unit
F4215A rear window wiper
F4315A headlights
F445A Adaptive cruise control system (cars without automatic start-stop system)
F4510A washer heating.
F4640A wiper mode
F47Reserve
F4815A diesel evaporator
P1Reserve
P2Relay beep
P3diesel evaporator relay
P4Reserve
P5Reserve
P6Reserve
P7Power Relay – Windshield Defrost
P8Reserve
P9Headlight washer relay
P10Starter relay
P11air conditioning compressor coupling relay
P12Power relay – cooling system fan
P13Heater fan – mini relay
P14Engine Control System Relay
P15Power relay – rear window heating
P16Power Relay – Ignition

The fuse number F15 by 20A is responsible for the cigarette lighter.

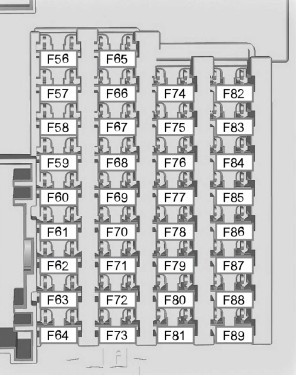

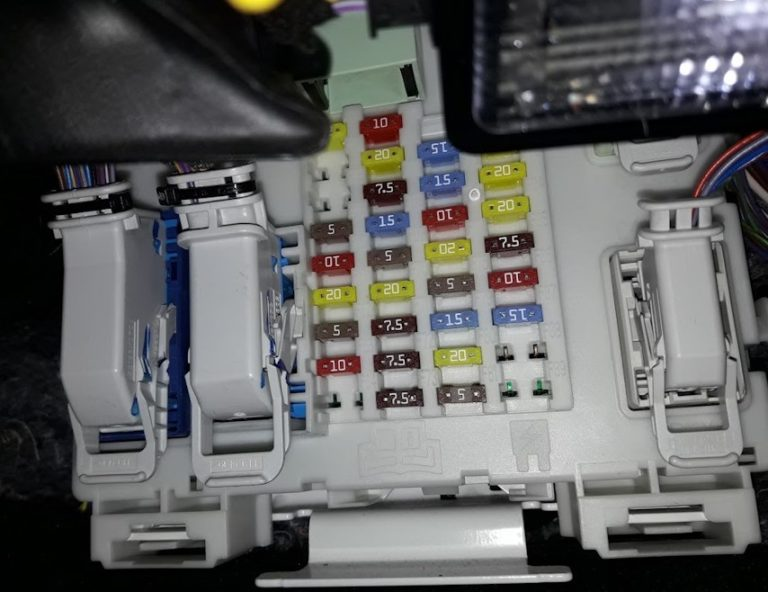

Cab block

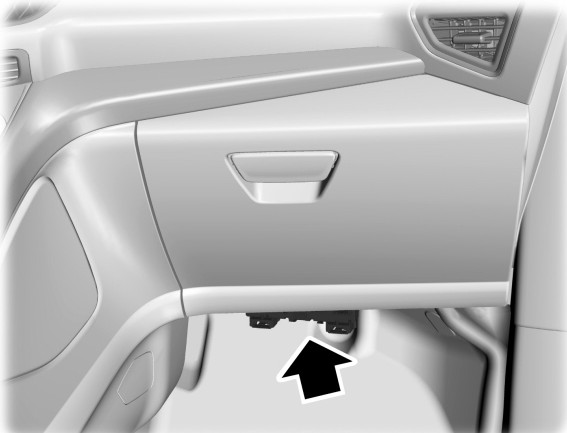

It is located under the glove compartment of the passenger.

5620A Fuel pump
57Reserve
58Reserve
595A Passive Receiver of the Anti-theft System
6010A interior lighting, driver’s door switch unit, glove compartment lighting, switch block on top console
61Reserve
625A automatic windshield wipers, automatic dimming mirror
6310A Adaptive Cruise Control System (Front Sensor Module)
64Reserve
6510A Rear Door Latch Unlock
66Reserve
67SYNC 7.5A module, multifunction display, global positioning system module
6815A Electric steering column lock
695A dashboard
70Reserve
7110A Heater control unit (Manual control module in air conditioning system), dual-zone electronic automatic climate control
727.5a steering module
735a розACM for data transmission, stand-alone sound system
7415A high beam headlights
7515A Fog lights / lamps
7610A Reverse Light
7720A washer pump
785A Ignition Lock, Start Button
7915A Audio Block, Navigation DVD Player, Touch Screen, Alarm Switch, Door Lock Switch
8020A transparent hatch
815A radio, cabin motion sensor
8220A washer pump
8320A Central Castle
84Reserve
857.5 A Ignition Lock
8610A Airbag Module, Passenger Presence Recognition System, Passenger Airbag Deactivation Indicator
87Reserve
88Reserve
89Reserve

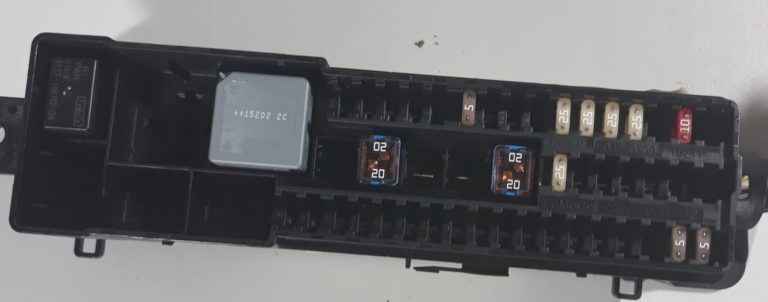

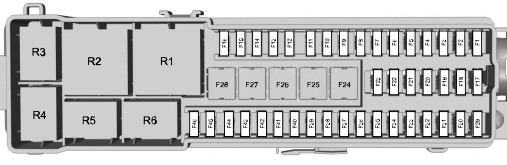

Block in the trunk

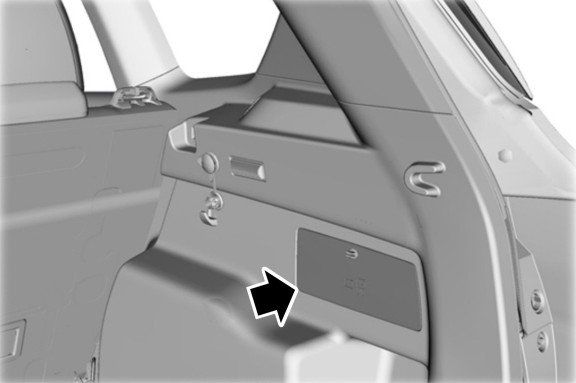

It is located in the luggage compartment behind the niche of the chassis and is closed by a protective cover.

F15A Contactless Rear Door Opening System
F210A keyless access module
F35A Car Door Handles With Remote Keyless Access
F425A Left Front Door Control Module
F525A Right front door control module
F625A left rear door control module
F725A Right Rear Rear Door Control Module
F8Reserve
F925A driver’s seat electric motor
F10Reserve
F115A Power Rear Ignition Relay Coil Power
F1210A climate control system (cars with automatic start/stop system)
F135A dashboard (cars with automatic start/stop system)
F147.5A Infotainment system display, Sync module, global positioning system (cars with automatic start-stop system)
F1515A Audio unit (cars with automatic start/stop system)
F16Reserve
F17Reserve
F18Reserve
F19Reserve
F20Reserve
F21Reserve
F22Reserve
F23Reserve
F2430A Additional DC and AC sockets
F2420A rear auxiliary power sockets
F2525A 25A powered doors
F2640A Auxiliary Equipment, Trailer Towing Module
F2720A Additional luggage compartment sockets
F28Reserve
F295A Blind Spot Monitoring System, Front Camera Sensor, Adaptive Cruise Control, Parking Assistance System, Rear View Camera, Voltage Quality Module, Ignition Signal
F305A Park Assistance System
F31Reserve
F325A ignition signal for additional DC and AC sockets
F33Reserve
F3420A Heating the driver’s seat
F3520A passenger seat heating
F36Reserve
F37Reserve
F38Reserve
F39Reserve
F40Reserve
F41Reserve
F42Reserve
F43Reserve
F44Reserve
F45Reserve
F4610A Blind Spot Monitoring System, Front Camera Sensor, Adaptive Cruise Control, Parking Assist Rear View Camera (cars with automatic start-stop system)
P1Power Relay – Ignition Lock
P2Reserve
P3Reserve
P4Reserve
P5Reserve
P6Reserve
