The 3rd generation Chevrolet Equinox was produced in 2017, 2018, 2019, 2020, 2021, 2022, 2023, mainly with 1.5 and 2.0 liter gasoline engines. In this material you will find a description of the fuses and relays of the Chevrolet Equinox with block diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.

The design of the blocks and the purpose of their elements may differ from the one presented and depends on the year of manufacture and the level of electrical equipment of your car. Compare the diagrams with your own designations on the back of the block cover.

Cabin block

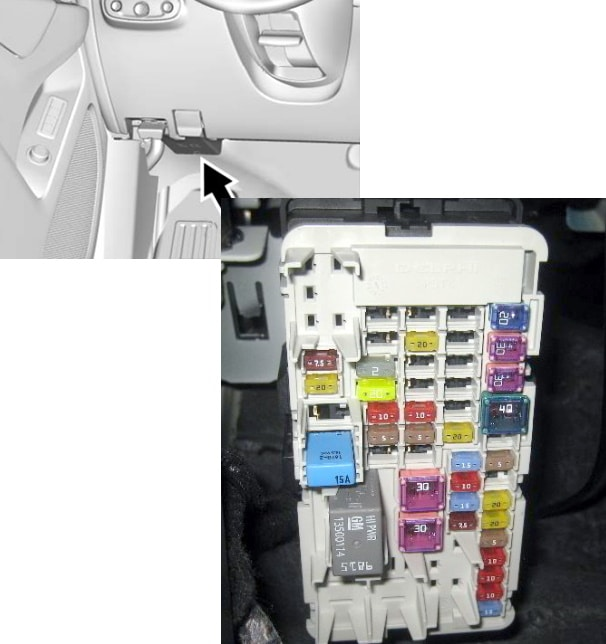

In the cabin, the fuse and relay block is located under the instrument panel on the driver’s side.

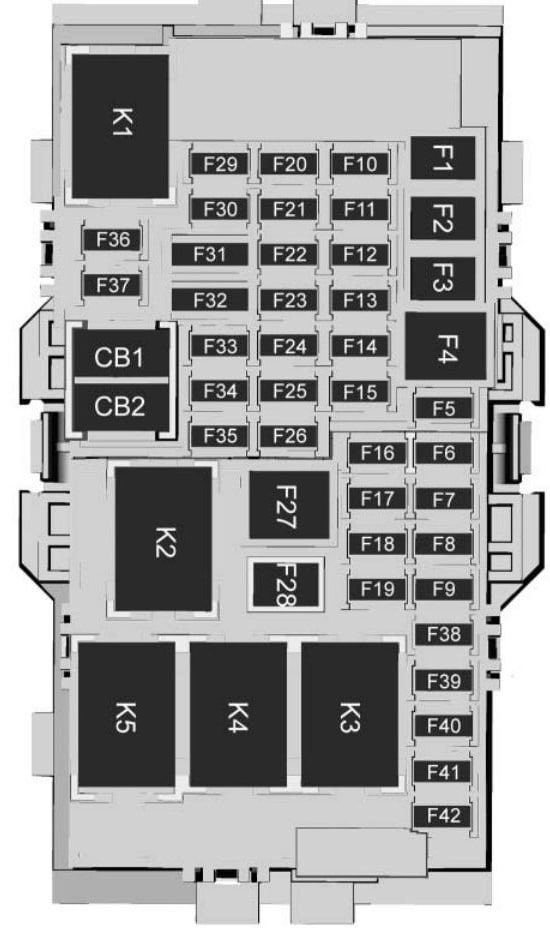

Scheme

Description

F01AC DC Inverter
F02Front windows
F03Trailer brake
F04Heating, ventilation and air conditioning fan
F05Body control unit 2
F06Central Gateway Module (CGM)
F07Not used
F08Body control module 3
F09Amplifier
F10Not used
F11Not used
F12Not used
F13Not used
F142018-2019: Electronic shifter.
2020-2022: Not used
F15Transmission control module
F16Heated front seats
F17Left data link connector
F18Body control module 7
F19Exterior mirror
F20Body control module 1
F21Body control unit 4
F22Body control unit 6
F23Electric steering column lock
F24Sensor and diagnostic module
F25Presence sensor
F26Not used
F27Power seats
F28Rear windows
F29Not used
F302018-2019: Front seat heating switch.
2020-2022: Not used
F31Steering wheel control
F32Body control unit 8
F33Heating, ventilation, air conditioning
F34Passive input, passive start
F35Rear door latch
F362018: Replaceable charger
2019-2022: Wireless charging module/USB accessory
F37Cigarette lighter
F38OnStar
F39USB dashboard
F40Camera module/rear door module
F412018-2020: Parking assistance module
2021-2022: Parking assist module/ Center console display/ Heating, ventilation and air conditioning display/ Universal garage door opener/ Overhead control unit
F42Radio
CB12018: Front auxiliary socket
2019-2022: Not used
CB2Additional socket console
Relay
K012018-2019: Bolt.
2020-2022: Not used
K02Auxiliary power stored
K03Rear door
K04Not used
K05Logistics

Fuse number 37 is responsible for the cigarette lighter.

Block under the hood

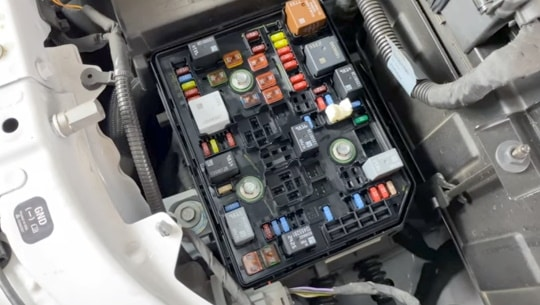

Under the hood, the main fuse and relay block is located on the front left.

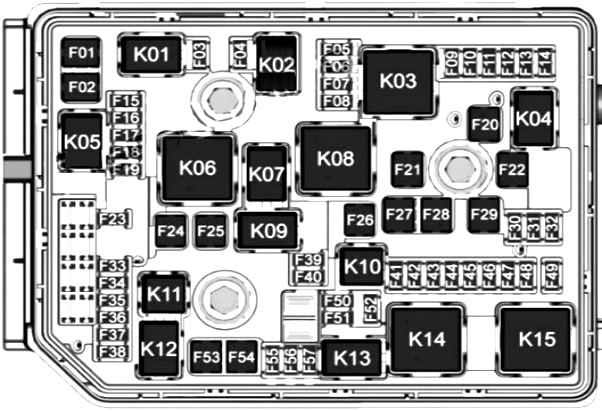

Scheme

Marking

F0130A Starter 1
F0240A Starter 2
F0315A Lambda probe 1
F0425A Engine Control Module
F0510A 2018-2020: FlexFuel Sensor
2021: FlexFuel sensor / aerodynamic shutter
2022: Aero Shutter/ Water Pump
F0620A Transmission Control Module
F07Not used
F0810A 2018-2021: Engine control unit
F0910A Air conditioner clutch
F1010A Canister ventilation
F1120A Fuel system
F1215A Heated front seats
F137.5A 2018-2019: Additional pump.
2020-2022: Engine coolant pump
F14Not used
F1510A Lambda probe 2
F1615A 2018: Fuel injectors – odd
2019-2022: Ignition coils
F1715A 2018: Fuel injectors – even
2019-2022: Engine Control Module
F182018-2021: Not used /Selective Catalytic Reduction Module (diesel only)
2022: Engine Control Module
F19Not used/NOx sensor (diesel only)
F20DC-DC converter 40A DC 2
F2120A Gear shift control
F2260A Anti-lock brake pump
F2315A 2018: Front washer
2019-2022: Front/rear washer pump.
F24Not used
F25Not used/ Diesel fuel heater (diesel only)
F26Not used
F2730A Anti-lock braking system
F28Trailer 30A LD
F2930A Heated windows
F307.5A Heated mirrors
F31Not used
F327.5A Variable functions
F33Not used
F3415A Signal
F3520A 2018: Vacuum pump
2019-2022: Not used
F3610A 2018-2021: Right high beam headlight
2022: Right headlights/daytime running lights
F3710A 2018-2021: Left high beam headlight
F385A Automatic headlight range control
F3915A 2018-2021: Fog lights
F40Not used
F4110A Transmission range control module
F4210A Motorized Headlight
F4320A 2018: Fuel pump
2019-2022: Not used
F4410A Interior rear-view mirror
F4510A 2018: Adsorber ventilation solenoid
2019-2022: Ventilated passenger seat
F4610A Driver’s side seat with ventilation
F4720A Steering column lock assembly
F4820A Rear wiper
F49Not used
F5010A Heated steering wheel
F5115A 2018: Right headlight
2019-2021: Right daytime running light
F527.5A Engine control module/transmission control
F53Not used
F5430A 2018: Front wiper
2019-2022: Not used
F5530A Front wiper speed/control
F567.5A Australia
F5715A 2018: Left headlight
2019-2021: Left daytime running light
2022: Headlights/Daytime Running Lights Remain
Relay
K01Starter solenoid
K02Air conditioning control
K032018: Not used
2019-2022: Engine Control Module
K042018: Windshield wiper
2019-2022: Front wiper control
K05Starter solenoid/gear
K06Not used / Fuel heater (diesel only)
K07Not used
K08Not used
K092018: Wiper speed
2019-2022: Front wiper speed
K10Not used
K11Not used
K122018-2021: High beam headlights
2022: Right headlights/daytime running lights
K132018-2021: Headlights/Daytime Running Lights
2022: Headlights/Daytime Running Lights Remain
K14Start/start
K15Heated rear window
K16Signal
K17Selective catalytic reduction
K18Fog lights
K19Coolant pump
K20Not used
K21Rear washer
K22Front washer
K232018: Windshield wiper
2019-2022: Rear wiper control

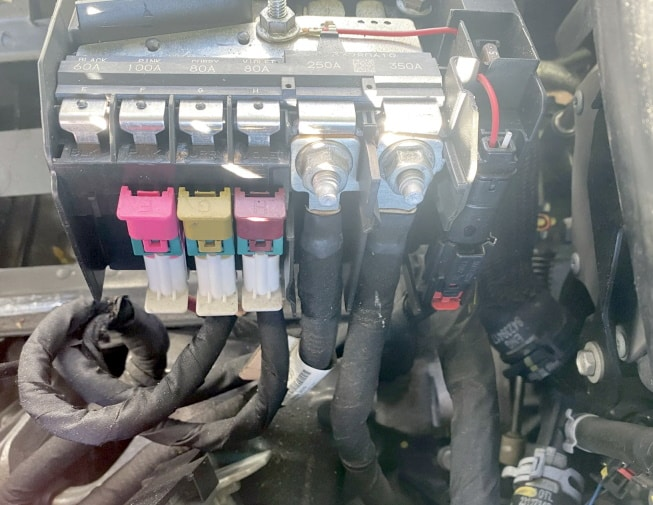

Next to this block there may be a high-power fuse block. It will look something like this.

We would be happy if you share your knowledge about it or the purpose of the elements in this block – write in the comments.

Block in the trunk

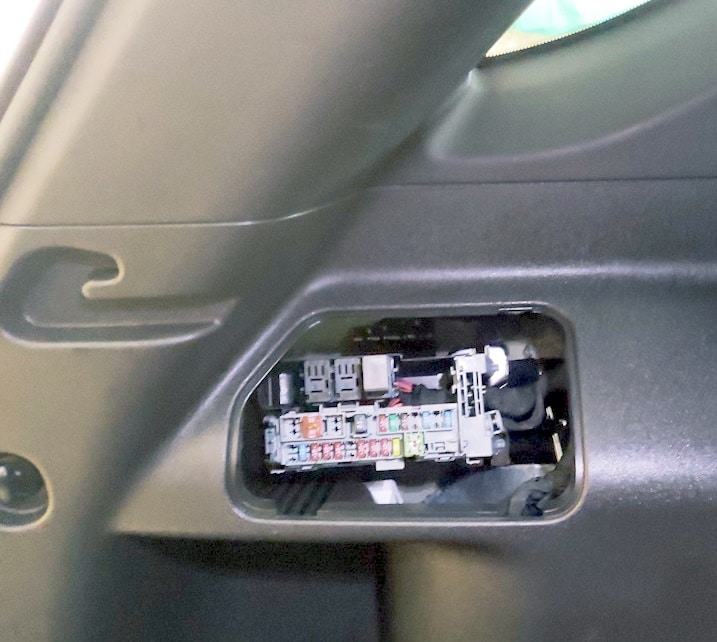

There is another fuse and relay box in the left-hand side of the luggage compartment. Remove the cover to access it.

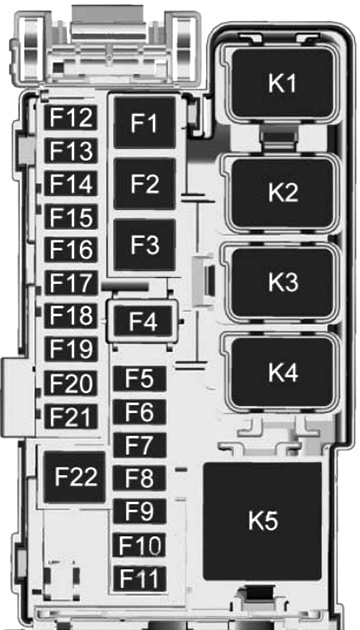

Scheme

Transcript

F12018-2019: Fuel heater.
2020: Exhaust gas heater/power pack with selective catalytic reduction (diesel only)
2022: Power seats
F2Rear door
F3Trailer auxiliary power
F42018: Power seats
2019-2021: Power passenger seat
F5Memory seat module
F6Roof hatch
F7Side Blind Spot Warning
F8Trailer reversing lights
F9Heated rear seat 1
F102018: Parking assistance
2019-2022: Park lights
F11Heated rear seat 2
F12Not used
F13Trailer parking light
F142018: Right trailer turn signal
2019-2022: Right trailer brake light/turn signal
F152018-2021: Left side marker light
F162018-2021: Right side marker light
F172018-2019: Not used.
2020-2022: Video Processing Module
F182018: Left trailer turn signal
2019-2022: Left trailer brake light/turn signal
F19All-wheel drive
F20lumbar region
F21Rear auxiliary socket
F22Rear-wheel drive
Relay
K1Right trailer brake light/turn signal
K2Trailer reversing lights
K3Left trailer brake light/turn signal
K4Park lights
K52018-2019: Selective Catalytic Reduction (SCR) – (diesel only).
2020: Exhaust gas heater/power pack with selective catalytic reduction (diesel only)
