Chevrolet Malibu 9th generation was produced in 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 mainly with gasoline engines 1.5 and 2.0 . During this time, the model has been updated. In our article you will find a description of the fuses and relays of the Chevrolet Malibu with block diagrams, photo examples of their execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays may differ from those presented and depends on the year of manufacture and the level of electrical equipment. Compare the information with your diagrams on the unit cover.
Cabin block

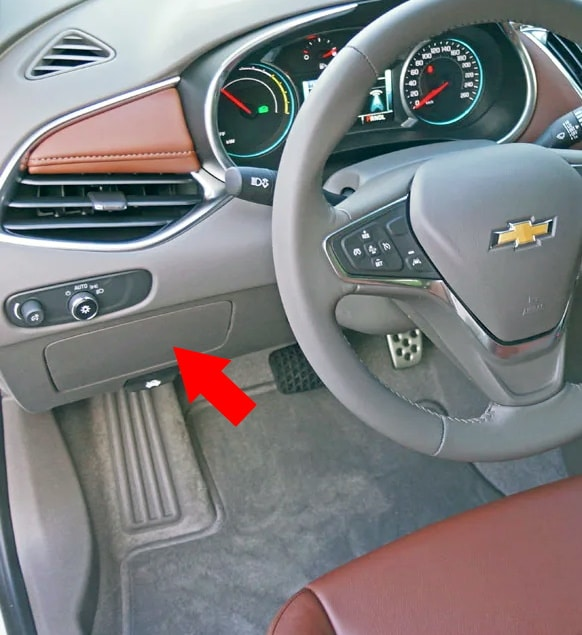

In the car interior, the fuse and relay box is located at the bottom of the instrument panel, behind a protective cover.

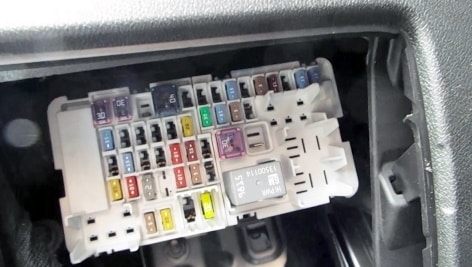

Photo example

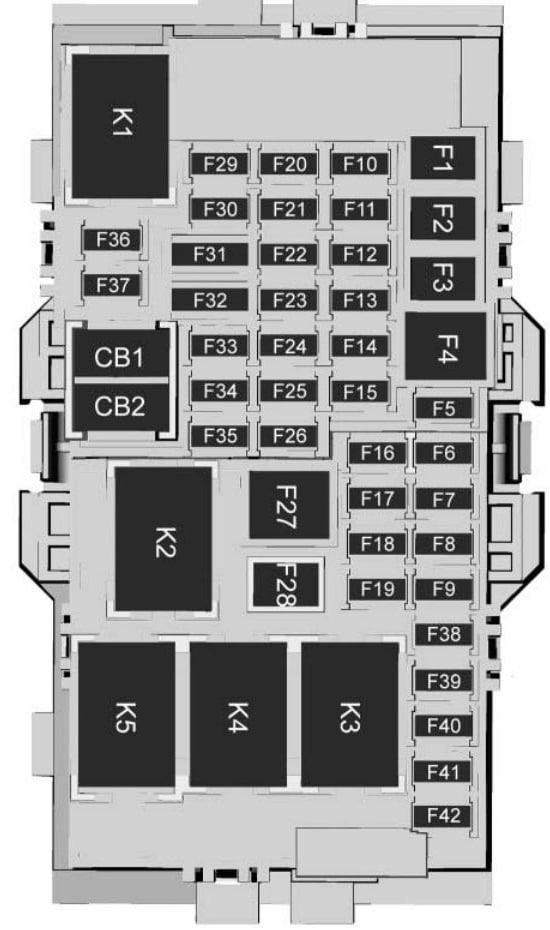

Scheme
Description
| F1 | 30A Left power windows |
| F2 | 30A Right electric windows |
| F3 | — |
| F4 | 40A Heating, ventilation and air conditioning fan |
| F5 | 15A Body control unit 2 |
| F6 | Left rear seat with heating |
| F7 | Right rear seat with heating |
| F8 | 15A Body control unit 3 |
| F9 | 5A Engine control unit/rear battery |
| F10 | 15A Body control unit 2 (with Stop/Start option) |
| F11 | — |
| F12 | — |
| F13 | — |
| F14 | — |
| F15 | 20A Transmission Control Module (with Stop/Start option) |
| F16 | Amplifier 30A |
| F17 | Seat with electric lumbar support |
| F18 | OnStar |
| F19 | — |
| F20 | 15A Body control unit 1 |
| F21 | 15A Body control unit 4 |
| F22 | — |
| F23 | 10A Electric steering column lock – only for China and Russia. |
| F24 | 10A airbag |
| F25 | 7.5A Data link connector |
| F26 | — |
| F27 | 30A AC DC Inverter |
| F28 | — |
| F29 | 20A Body control unit 8 |
| F30 | 10A Ceiling console |
| F31 | Steering wheel control |
| F32 | — |
| F33 | 10A Heating, ventilation and air conditioning |
| F34 | Gates |
| F35 | — |
| F36 | Wireless charger 5A |
| F37 | 20A Front accessory power sockets/cigarette lighter |
| F38 | 5A star |
| F39 | 7.5A Display |
| F40 | 10A Obstacle detection |
| F41 | 15A Body control unit 1 (with Stop/Start option) |
| F42 | Radio 15A |
| CB1 | — |
| CB2 | 15A Console Power Outlet |
| Relay | |
| K1 | — |
| K2 | Reserved auxiliary power relay |
| K3 | — |
| K4 | — |
| K5 | — |
Fuse number 37 is responsible for the cigarette lighter.
Block under the hood

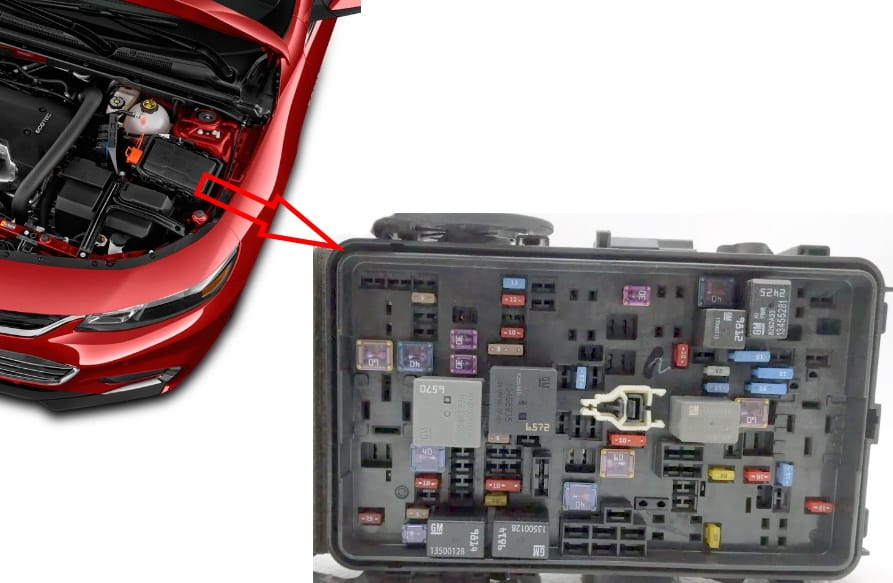

Under the hood, the main unit with fuses and relays is located on the left side.

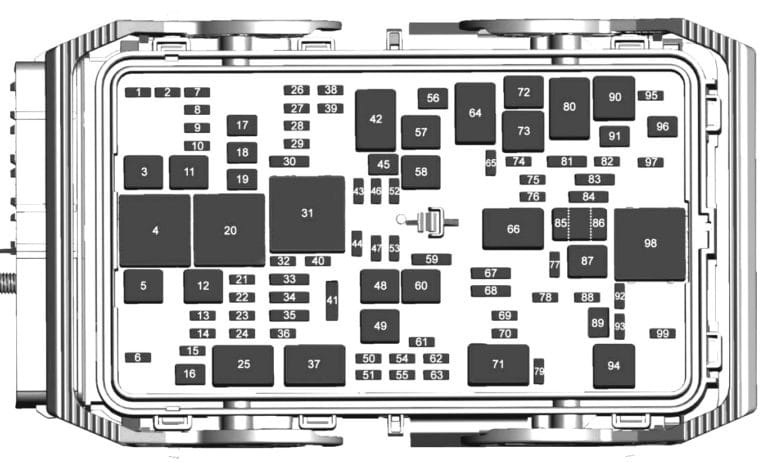

Scheme
Marking
| 1 | — |
| 2 | — |
| 3 | 60A Anti-lock brake system pump |
| 5 | 60A AC DC Inverter |
| 6 | 7.5 Rear lid / Trunk |
| 7 | 7.5A Anti-theft siren/beep |
| 8 | 5A Window/ Mirror/ Seat |
| 9 | 5A Electric brake booster |
| 10 | 15A LT seat lamp / 10A AOS/ Airbag – HEV |
| 11 | DC battery 40A DC 1 |
| 12 | 40A Heated rear window |
| 13 | 10A Mirror heating |
| 14 | — |
| 15 | 5A Passive input/passive trigger |
| 16 | 20A Front wiper |
| 17 | 30A Power passenger seat |
| 18 | 30A Anti-lock brake system valve |
| 19 | 30A Electric driver’s seat |
| 21 | 30A hatch |
| 22 | 5A Parking light |
| 23 | 10A Active headlight range adjustment |
| 24 | — |
| 26 | 15A Transmission/Ignition Control Module |
| 27 | 10A Instrument panel housing/ignition |
| 28 | 10A Fuel pump |
| 29 | 10A Adjustable voltage/ventilation |
| 30 | 5A Fault indicator/SS |
| 32 | 5A Connister ventilation solution |
| 33 | 15A Front seat heating |
| 34 | 10A BSM/ESS fan 15A Rear seat heating |
| 35 | 10A Body equipment control unit 6/ Body equipment control unit 7 |
| 36 | 20A Fuel module |
| 38 | – |
| 39 | – |
| 40 | 10A Steering column lock |
| 41 | – |
| 43 | 15A Heated steering wheel |
| 44 | 10A Active headlight range adjustment |
| 45 | – |
| 46 | 15A Engine Control Module/Ignition |
| 47 | – |
| 48 | 60A Electric brake booster – HEV |
| 49 | DC battery 40A DC 2 |
| 50 | – |
| 51 | – |
| 52 | – |
| 53 | – |
| 54 | – |
| 55 | – |
| 56 | 30A Starter |
| 57 | 40A Auxiliary box pump |
| 58 | – |
| 59 | 10A High beam headlights |
| 60 | 60A Cooling fan |
| 61 | – |
| 62 | – |
| 63 | – |
| 65 | 10A Air conditioner – GEM |
| 67 | – |
| 68 | – |
| 69 | 20A Right xenon low beam headlight |
| 70 | 20A Left xenon low beam headlight |
| 72 | 40A Starter gear |
| 74 | – |
| 75 | 25A Engine Control Module |
| 76 | 15A Powertrain with engine off |
| 78 | 20A Signal |
| 79 | 20A Washer pump |
| 81 | 15A Transmission control module/engine control module |
| 82 | – |
| 83 | 15A Ignition coil |
| 84 | 15A Power unit on the engine |
| 85 | 60A Engine Control Module, Switch 2 |
| 86 | 60A Engine Control Module, Switch 1 |
| 87 | Pump SAIR 50A |
| 88 | 10A Airlock |
| 89 | 25A Headlight Omivach |
| 91 | – |
| 92 | 10A Traction Power Inverter Module/Motor Generator Pump |
| 93 | 10A Active headlight range adjustment |
| 95 | 15A solenoid SAIR |
| 96 | 25A Fuel heater |
| 97 | – |
| 99 | 10A Coolant pump |
| Relay | |
| 4 | AC DC Inverter |
| 20 | Rear heater |
| 25 | Front wiper control |
| 31 | Start/start |
| 37 | Front wiper speed |
| 42 | Auxiliary pump box |
| 64 | Starter motor |
| 68 | Power unit |
| 71 | Xenon dipped beam headlights |
| 73 | Air conditioning |
| 80 | Starter gear/starter motor |
| 90 | SAI reaction solenoid |
| 94 | headlight washer |
| 98 | SAI reaction pump |

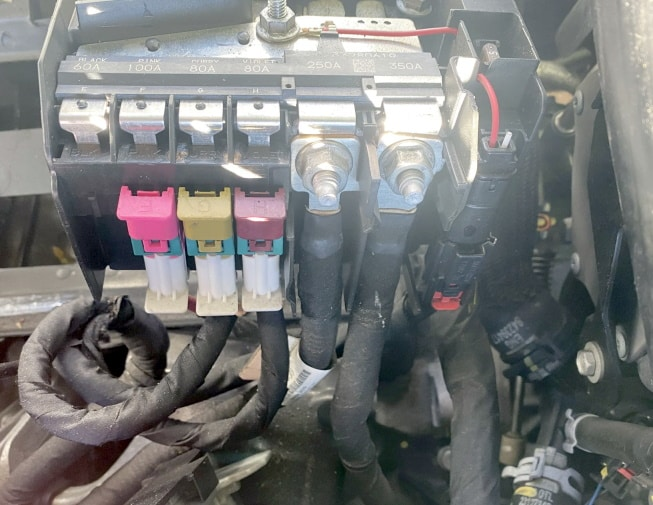

Next to this block, another high-power fuse block can be installed, made in the form of fusible links. It looks something like this.
