Ford Expedition U324 belongs to the 3rd generation of the Ford Expedition model range and was produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017. In our material you can find a description of the fuses and relays of the Ford Expedition 3 with block diagrams and photo examples of their design and location. We note the cigarette lighter fuse.
Cabin block

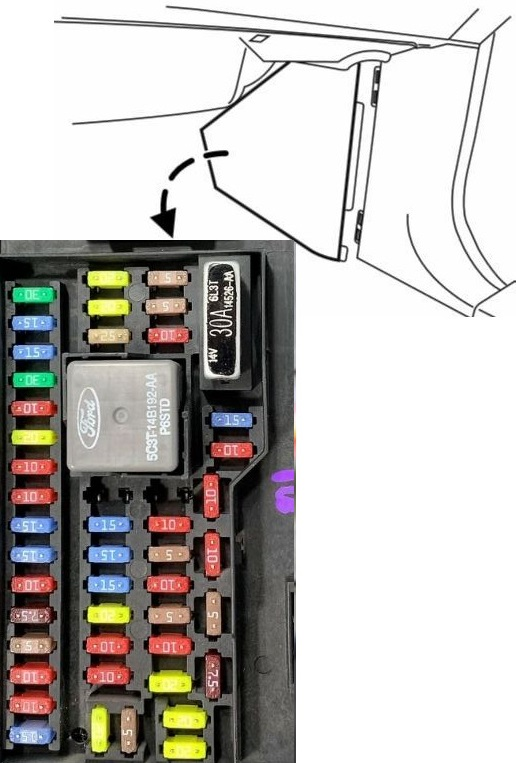

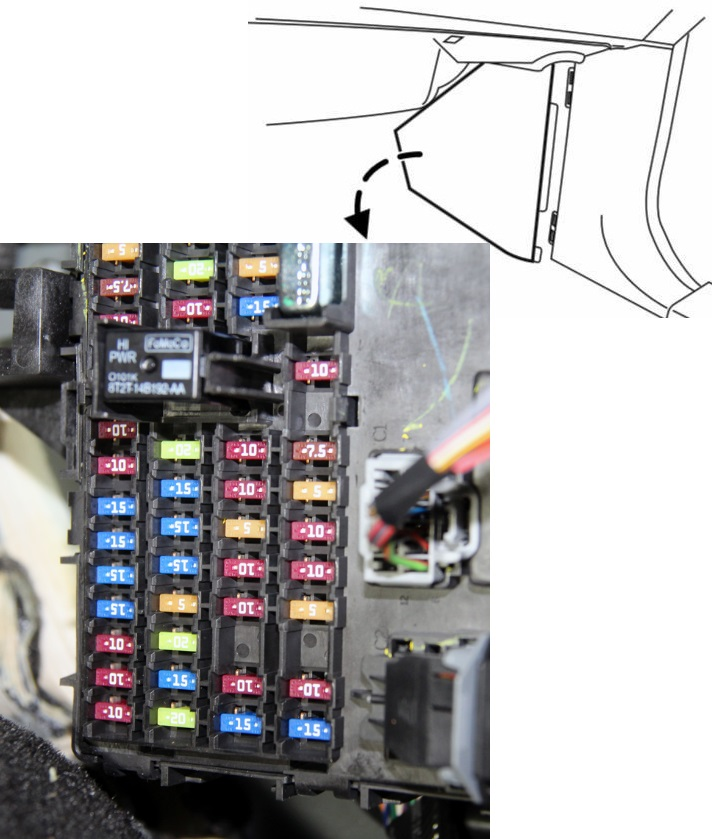

In the cabin, the main fuse box is located under the instrument panel, on the passenger side, behind a protective cover.
Option 1 (2007 – 2014)

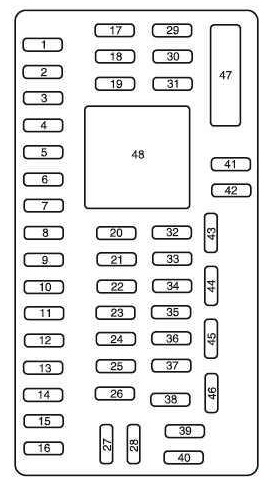

Scheme
Description
| 1 | 30 | Driver window |
| 2 | 15 | Driver’s side memory module |
| 3 | 15 | Rear seat audio controls, |
| Satellite radio, | ||
| SYNC® | ||
| 4 | 30 | Not used (spare) |
| 5 | 10 | Keyboard backlight, |
| Enabling the 3rd row of seats, | ||
| Brake Switch Interlock (BSI), | ||
| Intelligent logic panel with fuses | ||
| 6 | 20 | Turn signals |
| 7 | 10 | Low beam headlights (left) |
| 8 | 10 | Low beam headlights (right) |
| 9 | 15 | Interior lighting |
| 10 | 15 | Turn on the backlight, |
| Puddle lamps | ||
| 11 | 10 | Not used (spare) |
| 12 | 7,5 | Power mirror switch, |
| Driver’s seat memory switch | ||
| 13 | 5 | Not used (spare) |
| 14 | 10 | Power tailgate module – supporting power |
| 15 | 10 | Climate control, |
| Global Positioning Satellite Module | ||
| 16 | 15 | Not used (spare) |
| 17 | 20 | Door locks, |
| Unlocking the liftgate, | ||
| Lifting glass release | ||
| 18 | 20 | Heated second row seats |
| 19 | 25 | Rear wiper |
| 20 | 15 | Adjustable pedals, |
| Data transmission channel | ||
| 21 | 15 | Fog lights |
| 22 | 15 | Park lights |
| 23 | 15 | High beam headlights |
| 24 | 20 | Signal |
| 25 | 10 | Demand lamps, |
| Glove, | ||
| Eaves | ||
| 26 | 10 | Instrument panel combination |
| 27 | 20 | Ignition switch |
| 28 | 5 | Radio |
| 29 | 5 | Instrument panel combination |
| 30 | 5 | Not used (Spare) |
| 31 | 10 | Not used (spare) |
| 32 | 10 | Airbag module |
| 33 | 10 | Not used (spare) |
| 34 | 5 | Not used (Spare) |
| 35 | 10 | Rear parking assist, |
| 4×4, | ||
| rear video camera, | ||
| 2nd row of heated seats | ||
| 36 | 5 | Passive anti-theft system |
| 37 | 10 | Climate control |
| 38 | 20 | Subwoofer |
| 39 | 20 | Radio |
| 40 | 20 | Navigation amplifier |
| 41 | 15 | Electric windows |
| Ventilation holes, | ||
| The power of the moon on the roof, | ||
| Rearview mirror with automatic dimming, | ||
| 110V AC outlet | ||
| 42 | 10 | Not used (spare) |
| 43 | 10 | The logic of the rear wiper, |
| Rain sensor | ||
| 44 | 10 | Trailer battery charging relay coil |
| 45 | 5 | Front wiper logic |
| 46 | 7,5 | Climate control, |
| Auxiliary relay control | ||
| 47 | 30 | Electric window lifts, |
| Moon roof | ||
| 48 | – | Additional relay with delay |
Option 2 (2015 – 2017)

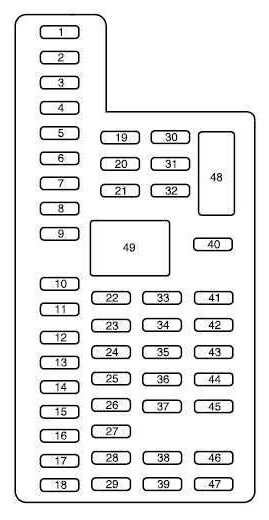

Scheme
Marking
| 1 | 30 | Driver’s window |
| 2 | 15 | Rear seat control. |
| Multimedia Gateway Module | ||
| 3 | 30 | Passenger window |
| 4 | 10 | Demand lamps |
| 5 | 20 | Sound amplifier |
| 6 | 5 | Rear electronic automatic temperature control |
| 7 | 7,5 | Electric mirror, |
| Driver’s seat memory switch | ||
| 8 | – | Not used |
| 9 | 10 | SYNCHRONIZATION, |
| Gates with mechanical lift, | ||
| Electrical processing panel, | ||
| Display | ||
| 10 | 10 | Auxiliary start relay |
| 11 | 10 | Passive input/run module |
| 12 | 15 | Interior lighting, |
| Lamps | ||
| 13 | 15 | Right turn and brake lights |
| 14 | 15 | Left turn and brake lights |
| 15 | 15 | Reverse light, |
| High-mounted central brake light, | ||
| EC mirror | ||
| 16 | 10 | Low beam front right |
| 17 | 10 | Left front dipped beam |
| 18 | 10 | Brake switch lock LED / start button / keyboard backlight, |
| Third row power folding seats, | ||
| Passive touch-to-start input | ||
| 19 | – | Not used |
| 20 | 20 | Lock/unlock relay |
| 21 | – | Not used |
| 22 | 20 | Signal |
| 23 | 15 | Steering wheel control module |
| Cluster | ||
| 24 | 15 | Adjustable pedals / adjustable column, |
| Data transmission channel | ||
| 25 | 15 | Folding trunk lid |
| Electric motor for unlocking the lift window | ||
| 26 | 5 | Press to start the switch |
| 27 | 20 | Passive input/run module |
| 28 | 15 | Ignition switch, |
| Key lock switch | ||
| 29 | 20 | Radio, |
| GPS | ||
| 30 | 15 | Front position lights |
| 31 | 5 | Trailer brake on / off. |
| 32 | 15 | Ventilation hole, |
| Driver’s window lift electric motor, | ||
| Power inverter. | ||
| 33 | 10 | Suspension CCD module |
| 34 | 10 | Rear parking assist, |
| Rear camera | ||
| BUS, | ||
| Heated seats | ||
| 35 | 5 | Climate module |
| O/D switch | ||
| 36 | – | Not used |
| 37 | 10 | Module 4X4 |
| 38 | 10 | EC mirror, |
| Luke, | ||
| DVD, | ||
| AM/FM radio | ||
| 39 | 15 | Left and right front high beam |
| 40 | 10 | Rear position/taillights |
| 41 | 7,5 | Restraint control module |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 5 | not used (spare) |
| 46 | 10 | Climate control |
| 47 | 15 | Fog lights |
| 48 | 30 | Automatic switch for front passenger and rear window |
| 49 | Window and window relay |
Block under the hood

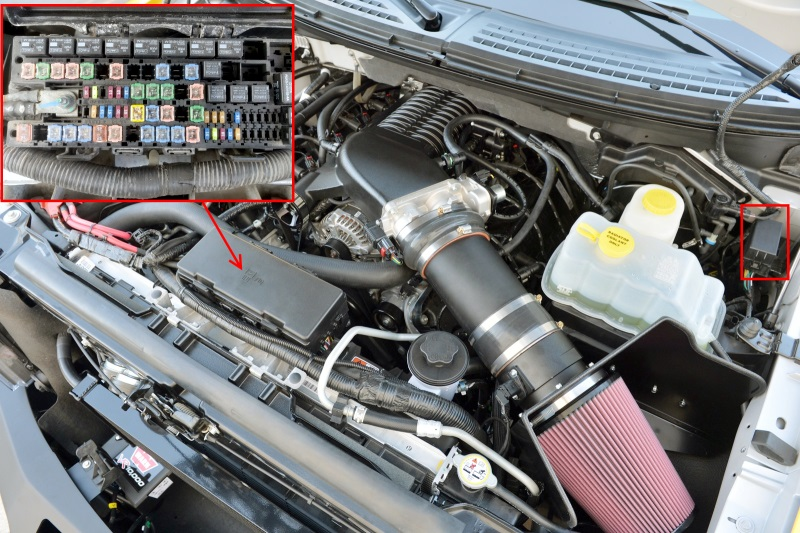

It is located at the beginning of the engine compartment. Another relay block can be installed separately.
Option 1 (2007 – 208)

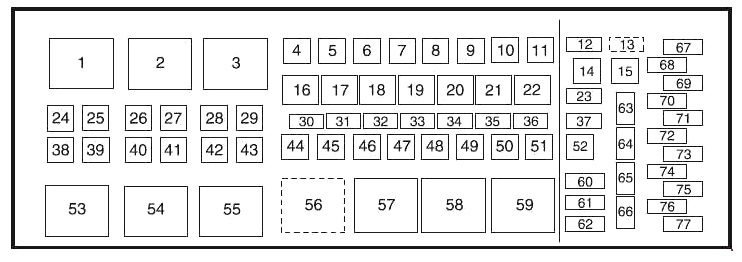

Scheme
Transcript
| 1 | – | Fan relay |
| 2 | – | Not used |
| 3 | – | Rear window heater relay |
| 4 | 30 | Third row seat (driver’s side) |
| 5 | 40 | Trailer connector (electric brake) |
| 6 | 60 | ABS (valves) |
| 7 | – | Not used |
| 8 | 40 | Heated/cooled seats |
| 9 | 60 | ABS (pump) |
| 10 | 20 | Socket in the rear console |
| 11 | 30 | Auxiliary fan |
| 12 | 25 | Trailer connector (side lights) |
| 13 | 30 | Trailer towing connector (battery charging) |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | Air conditioner clutch relay |
| 17 | – | Not used |
| 18 | – | Fuel pump relay |
| 19 | – | Backup relay |
| 20 | – | Trailer hitch relay (left turn signal) |
| 21 | – | Trailer hitch relay (right turn signal) |
| 22 | – | Not used |
| 23 | 15 | Heated mirrors |
| 24 | 40 | Fan motor |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 30 | Electric rear door |
| 28 | 40 | Rear window heater, |
| Heated mirror | ||
| 29 | 30 | Passenger seat |
| 30 | 10 | A/C coupling |
| 31 | 15 | Brake lights |
| 32 | 20 | Fuel pump |
| 33 | 20 | Backup lamps |
| 34 | 25 | Trailer towbar (brake lights/turn signals) |
| 35 | 20 | Module 4×4 |
| 36 | 10 | Powertrain Control Module (PCM) – supports power, |
| Canister ventilation | ||
| 37 | 15 | Transmission B+ |
| 38 | 30 | Third row seat (passenger side) |
| 39 | 50 | Pump with air suspension |
| 40 | 30 | Starter motor |
| 41 | 20 | IP/console socket |
| 42 | – | Not used |
| 43 | 20 | 4×4 module motor |
| 44 | – | Not used |
| 45 | 30 | Driver’s seat |
| 46 | 40 | Start/Start Bus |
| 47 | 30 | Air suspension – solenoids |
| 48 | – | Not used |
| 49 | 30 | Front wipers/washers |
| 50 | 30 | PKM – tire |
| 51 | 20 | Cargo power point |
| 52 | 20 | Cigarette lighter |
| 53 | – | Air suspension relay |
| 54 | – | Starter relay |
| 55 | – | Trailer hitch relay (parking light) |
| 56 | – | Trailer hitch relay (battery charge) |
| 57 | – | Relay Start / Start |
| 58 | – | Not used |
| 59 | – | PCM relay |
| 60 | – | One-touch start diode |
| 61 | – | Air conditioner clutch diode |
| 62 | – | Fuel pump diode |
| 63 | 15 | Trailer towing connector (reversing light) |
| 64 | – | Not used |
| 65 | 10 | Air suspension logic |
| 66 | – | Not used |
| 67 | 10 | Fan coil |
| 68 | – | Not used |
| 69 | 30 | Run/Start – interior fuse panel |
| 70 | 20 | PCM (sensors) – EFC, |
| Air conditioner clutch coil | ||
| 71 | 5 | Fuel coil, |
| ISP-R | ||
| 72 | 20 | PCM (ignition coils) |
| 73 | 5 | Gearbox ignition |
| 74 | 20 | PCM (sensors) – HE GO / CMS, |
| MAFS, | ||
| EVMV, | ||
| CMCV, | ||
| Speed cut-off switch, | ||
| VCT | ||
| 75 | 5 | Integrated Wheel Ends (IWE) Solenoid 4×4 |
| 76 | 20 | PCM – VPWR |
| 77 | 10 | ABS logic, heated PCV |
Option 2 (2009 – 2017)

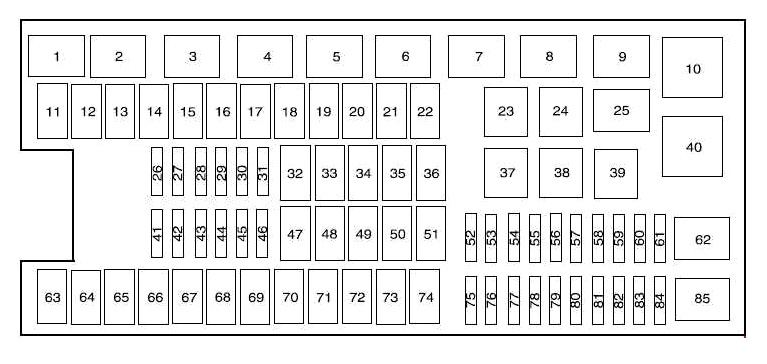

Scheme
Appointment
| 1 | – | Rear washer relay |
| 2 | – | Starter relay |
| 3 | – | Fan motor relay |
| 4 | – | Rear wiper relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic cooling fan |
| 7 | – | Rear window heating relay / mirror heating |
| 8 | – | Electronic cooling fan |
| 9 | – | Start/Start Relay |
| 10 | – | Junction box relay. |
| 11 | 40 | Power footrests |
| Heated seats | ||
| 12 | 40 | Start/Start, Relay |
| 13 | 30 | Starter relay |
| 14 | 50 | Electronic cooling fan |
| 15 | – | Not used |
| 16 | 50 | Electronic fan |
| 17 | – | Not used |
| 18 | 30 | Trailer brake |
| 19 | 20 | Socket (console) |
| 20 | 20 | Module 4×4 HAT 2 |
| 21 | 30 | Trailer towing module |
| 22 | 30 | Power passenger seat |
| 23 | – | Air conditioner clutch relay |
| 24 | – | Trailer marker light relay |
| 25 | – | Not used |
| 26 | 10 | ALT sensor |
| 27 | 20 | Module 4×4 HAT 1 |
| 28 | 25 | Trailer marker light relay |
| 29 | 10 | Built-in solenoid at the end of the wheel |
| 30 | 10 | Air conditioner clutch relay |
| 31 | 15 | Trailer reversing light |
| 32 | 40 | Fan motor relay |
| 33 | 40 | 110 volt AC outlet |
| 34 | 30 | Auxiliary fan motor |
| 35 | 30 | Transmission control module relay |
| 36 | 30 | Electric rear door |
| 37 | – | Not used |
| 38 | – | Not used |
| 39 | – | Trailer reversing light relay |
| 40 | – | Electronic fan relay 2 |
| 41 | 10 | Transmission control module support power |
| 42 | 5 | Start/Start Relay |
| 43 | 10 | Brake on/off switch |
| 44 | 20 | Fuel pump relay |
| 45 | 10 | Not used (spare) |
| 46 | 15 | Front/rear washer pump |
| 47 | 30 | Rear wiper motor |
| 48 | 40 | Trailer towing module |
| 49 | – | Not used |
| 50 | 30 | Front wiper motor relay |
| 51 | 40 | Rear window heating relay / mirror heating |
| 52 | 10 | Start/start the anti-lock braking system |
| 53 | 5 | ISP Transmission Control Module |
| 54 | 5 | Power steering |
| 55 | – | Not used |
| 56 | 30 | R/S passenger compartment fuse panel power supply |
| 57 | 5 | Fan motor is running/starting |
| 58 | – | Not used |
| 59 | 15 | Heated mirrors |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | 25 | Electronic fan |
| 64 | 30 | Luke |
| 65 | 20 | Not used (spare) |
| 66 | 20 | Auxiliary socket (rear of centre console) |
| 67 | 40 | Front row seats with climate control |
| 68 | 30 | Anti-lock brake system valves |
| 69 | 60 | Anti-lock brake system pump |
| 70 | 30 | Third-row power-folding seats |
| 71 | 20 | Auxiliary socket / cigarette lighter |
| 72 | 20 | Auxiliary socket (right rear quarter panel) |
| 73 | 20 | Rear seat climate module |
| 74 | 30 | Electric driver’s seat |
| 75 | 25 | Vehicle power 1 – transmission control module |
| 76 | 20 | Vehicle power 2 – transmission control module |
| 77 | 20 | Car power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 15 | Vehicle power 3 – transmission control module |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 5 | Rain sensor |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
