In the following entry we present diagrams and locations of fuse boxes and relays for Volkswagen Amarok from the years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016. Volkswagen Amarok is a mid-size pickup truck produced by the German brand Volkswagen in the years 2009-2016.
Checking and replacing fusesAs you know, fuses protect against overloading the electrical system of our cars. When one of the components stops working, most likely the circuit breaker has tripped or the fuse has blown. Therefore, before repairing, you should check the fuse responsible for the given element. A blown fuse will be indicated by a melted or completely broken tape inside the fuse.
Remember this before replacing the fuse!
- remove the key from the ignition
- check if everything has been turned off
- always replace fuses with the same amperage.
Locations
- Fresh air blower fuse 1 -S97- and ABS control unit fuse 1
- C fuse holder -SC- (72/68 fuses)
- Fuse block on cover AKB (SA)
- AKB (SB) fuse box cover
Engine compartment

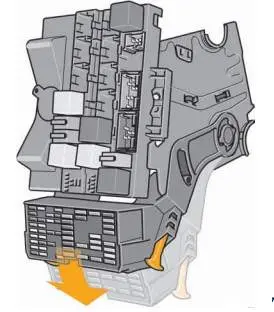

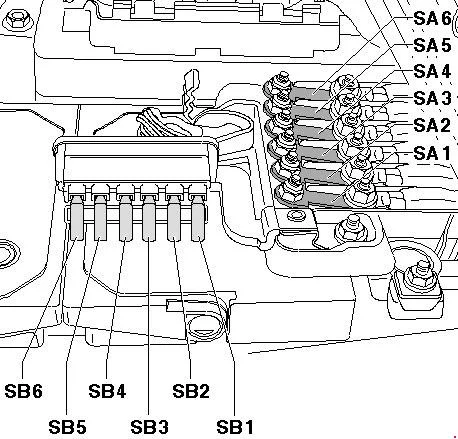

High-capacity fuses in the form of fuse links (SA) are located under the cover on the battery. It is connected to the positive battery terminal cable. Nearby is the fuse box (SB), protected from water by a special cap.
Description of SA
- 175A – Generator
- 110/175A – Passenger compartment relay and fuse
- 110A – Passenger compartment relay and fuse, 50A – Passenger compartment fuses or external interface
- 80/110A Radiator Fan Control Unit
- 50A – Glow plug control unit
- 80/110A – Fuses in the cabin
Description of SB
- 40A – ABS control unit, 25A – Main relay
- 30A — Fuel Pump Relay, Fuel Supply Module, Fuel Pressure Regulator, Electric Fuel Pump Relay 2, Fuel Supply Module
- 30A – ABS control unit
- 5A – Battery Monitoring Control Unit, On-board Power Control Unit
- 7.5 A – Blower relay, 30 A – High beam relay, High beam, 25 / 40 A – Heated rear window relay, Heated hard upper rear window
- 40A – Connector, 6-pin or external interface
Passenger compartment
Fuse box

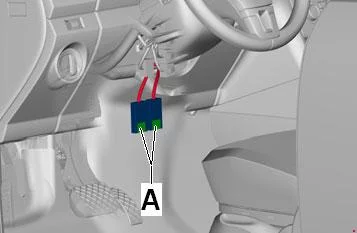

It is located under the dashboard on the driver’s side. To access the fuses, you need to release the locking lever. The fuse box can then be folded down.

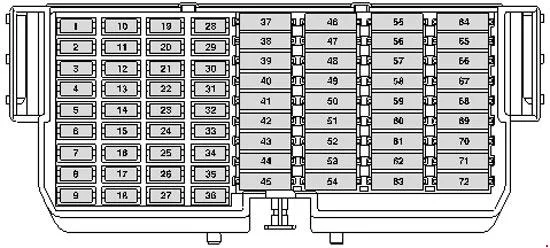

Fuse box (models up to 2013)
Type 1
Description
| 1 | 10A ABS control unit, ASR and ESP deactivation key, driving program key |
| 2 | 10A Heating resistor for left windshield washer nozzle, steering column switch block, wiper switch, washer pump and headlight washer switch |
| 3 | 10A Reverse Light Switch, Parking Aid Controller / 15A On-board Power Control Unit, Reverse Light Lamps, External Interface |
| 4 | 15A On-board power supply control unit, turn signal (terminal 49), brake light (terminal 54) |
| 5 | 5A Air mass meter |
| 6 | 5A Trailer recognition control unit |
| 7 | 5A interface for external use |
| 8 | 5A Ignition and starter / 15A Ignition and starter |
| 9 | 10A Airbag control unit, passenger front airbag deactivation warning lamp |
| 10 | 5A Engine Control Unit |
| 11 | 15A Differential lock control unit |
| 12 | 10A Fuel pressure regulator, Fuel metering valve, Turbocharger bypass valve, Boost pressure limiting solenoid valve, Adsorber solenoid valve 1, Intake camshaft timing control valve 1, Intake flap valve |
| 13 | 5A Exhaust gas flap valve, exhaust gas recirculation cooler switch valve, charging pressure limiting solenoid valve |
| 14 | 15A Coolant circulation pump after engine shutdown, fuel pressure regulator |
| 15 | 5A Power relay class 30, circulation pump |
| 16 | 10A Rear Fog Light / 5A Voltage Stabilizer, Data Bus Diagnostic Interface |
| 17 | 5A On-board Power Control Unit |
| 18 | 7.5A washer pump |
| 19 | 15A On-board power control unit, heated outside mirrors |
| 20 | 15A On-board Power Control Unit, Internal Power Supply |
| 21 | 10A On-board power supply control unit, interior protection switch, interior lighting, parking lights |
| 22 | 5A Position Tracking Control Unit |
| 23 | 10A Engine Control Unit |
| 24 | Alarm Siren 10A |
| 25 | 10A Crankcase ventilation heating resistor |
| 26 | 5A Right daytime running light module lamp |
| 27 | 5A Left daytime running light module lamp |
| 28 | 5A Light switch, license plate light, connector 8 in main wiring harness / 15A On-board power control unit, fog lights, reversing lights, external interface |
| 29 | 10A Left headlight range control actuator, left headlight low beam, external user interface/lighting switch 5A |
| 30 | 10A Left high beam, instrument cluster control unit, external user interface / 5A starter relay |
| 31 | 5A Tiptronic switch, automatic transmission control unit |
| 32 | 10A Right high beam headlight lamp |
| 33 | 5A Exterior mirror adjuster |
| 34 | 15A Engine Control Unit |
| 35 | 15A Lambda probe heater |
| 36 | 5A Fuel Pump Relay, Power Supply Relay Cl.30, Clutch Pedal Switch, Radiator Fan Control Unit, Glow Plug Control Unit |
| 37 | Ignition coil 20A |
| 38 | 15A 12V socket |
| 39 | 25A Trailer recognition control unit |
| 40 | 25A Trailer recognition control unit |
| 41 | 25A Trailer recognition control unit |
| 42 | 15A Brake light switch, high pressure sensor, air pollution sensor, oil level and temperature sensor, differential lock control unit, instrument cluster control unit, parking assist control unit, transfer case control unit, position tracking control unit, normal mode warning lamp on transfer case control panel, fuse 16 in fuse box C, diagnostic connector, steering column switch box, steering angle sensor, cruise control switch |
| 43 | 25A On-board Power Control Unit, Wiper Motor Control Unit, Wiper Motor |
| 44 | 30A On-board Power Control Unit, Heated Rear Window |
| 45 | 15A Diagnostic connector, Control unit in dashboard insert, Air conditioning control unit, Climatronic control unit, Heating and operating mode switch, Steering column switch, Spiral cable, Multi-function steering wheel control unit |
| 46 | 25A Distribution Box Control Unit |
| 47 | 20A On-board Power Control Unit, High Tone Signal, Low Tone Signal |
| 48 | 20A Driver door control unit |
| 49 | 20A Front Passenger Door Control Unit |
| 50 | 20A Rear left door control unit |
| 51 | 20A Rear right door control unit |
| 52 | 15A socket |
| 53 | 20A Fog Lamps / 25A On-board Power Control Unit |
| 54 | 15A lighter |
| 55 | 15A Right headlight range adjustment actuator, Right low beam headlight, External user interface / 25A On-board power supply control unit, Right daytime running light module, Right low beam headlight, External user interface |
| 56 | 25A Fuel Pump Control Unit |
| 57 | 30A Seat heating button, seat heating control unit |
| 58 | 15A Tiptronic switch, Automatic gearbox control unit, Ignition key removal lock solenoid |
| 59 | Socket 20A 12V 2 |
| 60 | 5A Trailer recognition control unit |
| 61 | 5A Trailer recognition control unit |
| 62 | 20A Additional heater controller, cooling pump relay, additional water heater relay, circulation pump |
| 63 | 10A Loading Platform Light |
| 64 | 40A Heater and operating mode selector switch, Climatronic controller, air conditioning controller |
| 65 | 15A Engine Control Unit |
| 66 | 30A On-board power supply control unit, central locking filler flap actuator, central locking actuator |
| 67 | 30A Main unit, Control unit with display for radio navigation system, Voltage regulator, Data bus diagnostic interface |
| 68 | 7.5A Control center telephone switchboard |
| 69 | 15A interface for external use |
| 70 | 5A interface for external use |
| 71 | 25A interface for outdoor use |
| 72 | 10A interface for external use |
Type 2
Description
| 1 | 10A ABS ControllerASR and ESP deactivation key Travel program keyAirbag controllerFront passenger airbag deactivation indicator Light switch |
| 2 | 10A Understeer Switch BlockWiper switchIntermittent wiper switchWindshield washer pump and headlight cleaning system switch |
| 3 | 15A Switch AKP lighting heater switch and air conditioning unit operation mode selection Actuator potentiometer for the air distribution flap of the front Climatronic engineRelay for additional coolant heaterCirculation pump |
| 4 | 15A Engine Control Unit Air Mass Meter |
| 5 | 5A Air mass meter |
| 15A Ignition Coil | |
| 6 | 5A Trailer recognition control unit |
| 7 | 5A External use interface |
| 8 | 15A Ignition and starter switch Alarm siren Vehicle position tracking control unit |
| 9 | 5A Loading platform lighting lamp |
| 10 | 5A Tiptronic SwitchAutomatic transmission controllerAir flow meter Engine control unit |
| 11 | 15A Differential lock control unit |
| 12 | 10A Boost pressure control solenoid valve Adsorber solenoid valve 1 Intake camshaft control valve valve 1Turbocharger bypass valveIntake manifold flap valveFuel Pressure Regulator Fuel Metering Valve |
| 13 | 7.5 A Left seat heating button Right seat heating button Left windshield washer nozzle heating resistor Right windshield washer nozzle heating resistor |
| 14 | 15A Fuel Pressure Regulator -N276 |
| 15 | 5A Power Relay Class ThirtyCirculation pump |
| 16 | 10A Rear fog light warning lampLeft fog lampRight fog lamp |
| 5A Voltage Stabilizer | |
| 17 | 5A On-board Power Control Unit |
| 18 | 7.5A washer pump |
| 10A washer pump | |
| 19 | 10/15A On-board Power Control UnitHeated driver’s side exterior mirrorHeated passenger side exterior mirror |
| 20 | 15/5A On-board Power Control UnitInner Power |
| 21 | 15A On-board Power Control UnitSwitch to disable the interior protection systemFront ceiling lightCentral ceiling lightFront side light, leftFront side light, right |
| 22 | Unused |
| 10A Rear view camera control unit | |
| 23 | 10A Engine Control Unit |
| 24 | 5A Understeer Switch BlockSwitch for dipped beam and light signals (including main beam) |
| 25 | 10A Crankcase ventilation heating resistor |
| 26 | 5A Right daytime running light module lamp |
| 27 | 5A Left daytime running light module lamp |
| 28 | 5A B472 Connection 8 in main wiring harnessLight switchHeadlight range adjustment knobLicense plate light, leftLicense plate light, right |
| 15A On-board Power Control UnitLeft fog light bulbRight fog lampRight reversing lampLeft Reversing LampExternal Interface | |
| 29 | 10A Left low beam lamp External interface |
| Light switch 5A | |
| 30 | 10A Left high beam headlight Control unit in dashboard insert External interface On-board power supply control unit |
| 31 | 5A interface for external use |
| 32 | 10A Right high beam headlight lamp |
| 33 | 5A Exterior mirror adjuster |
| 34 | 15A Engine Control Unit Coolant circulation pump after engine shutdown |
| 35 | 15A Lambda probe heater |
| 36 | 5A Fuel Pump Relay Power Relay Cl.30 Clutch Pedal Switch |
| 37 | Ignition coil 20A |
| Unused | |
| 38 | 40A Fuse 28, 29, 50 in fuse boxFuel Pump Relay Headlight RelayStarter relay Main relayLoad shedding relay class 58b |
| 39 | 25A Trailer recognition control unit |
| 40 | 25A Trailer recognition control unit |
| 41 | 41A Trailer recognition control unit |
| 42 | 10/15A, key start-stop mode switch brake light reversing light switch tachograph high pressure sensor air pollution level sensor and oil temperature lock controller differential module parking aid control transfer case lock control transfer case indicator light normal mode on control panel transfer case controlDownshift indicator light on transfer case control panelCentral differential lock indicator light on transfer case control panelHigh brake light bulbDiagnostic socketSteering Column Switch BlockSteering angle sensorCruise control switchCruise controlSET keySpiral cableMultifunctional control unit on the steering wheel |
| 43 | 30A On-board Power Control UnitWiper motor control unitWiper motor |
| Light switch 25A | |
| 30A Voltage StabilizerInstrument Cluster Control UnitFuse 67 in fuse box C | |
| 44 | 30A On-board Power Control UnitHeated rear window relayRear window heating element |
| 45 | 15/10A heater and selector switch operating mode Diagnostic connector assembly dashboardClimatronic control unit Bitron fan sensor adjustment, Front Rain sensor and light sensor Cabin protection telephone Control unit Tachograph Tiptronic switch electric lock ignition switch ignition switch electric switch fuel pump 2 Ceiling display panel Radio receiver for additional coolant heaterSteering Column Switch BlockSpiral cableMultifunction steering wheel control unit |
| 46 | 25/30A Distribution Box Control Unit |
| 47 | 25A On-board Power Control UnitHigh-pitched sound signalLow beep sound |
| 48 | 30A Driver door control unit |
| 49 | 30A Front Passenger Door Control Unit |
| 50 | 30A Rear left door control unit |
| 51 | 30A Rear right door control unit |
| 52 | Cigarette lighter with 30A socket |
| 53 | 25/20A On-board Power Control UnitLamp, left daytime running light moduleLeft dipped beam bulb |
| 54 | 20A light switch |
| 55 | 15/10A Headlight Level ControllerRight low beam headlight External interface |
| 25/20A On-board Power Control UnitLamp, right daytime running light moduleRight dipped beam bulbInterface for external use | |
| 56 | 25A Fuel Pump Control Unit |
| 57 | 30/25A Seat heating control unit |
| 58 | 15A Tiptronic SwitchAutomatic transmission controllerElectromagnet blocking removal of the key from the ignition |
| 30A On-board Power Control UnitWiper motor control unitWiper motor | |
| 59 | Socket 25A 12V 2 and 3 |
| 60 | 20A Left fog lampRight fog lamp External interface |
| 5A interface for external use | |
| 61 | 30/15A On-board Power Control UnitLeft fog light bulbRight fog light bulbRight reversing bulbLeft reversing lampInterface for external use |
| 62 | 20A Auxiliary heater control unitSupply fan relayElectric fuel pump relay 2 Ceiling display panel Radio signal receiver for additional water heaterCooling pump relay |
| 15A Additional heater controllerSupply fan relayCooling pump relay | |
| 30A Additional Heater ControllerBlower fan relay Electric fuel pump relay 2 Ceiling display Radio signal receiver for additional water heater | |
| 63 | 30A light switch |
| 5A Light switchStarter relay 1Starter relay 2 | |
| 64 | Supply fan 40A |
| 65 | 15A On-board Power Control UnitDirection indicator (cl. 49)Brake light (terminal 54) |
| 66 | 30A On-board Power Control UnitCentral locking actuator for filler flapDriver’s door central locking driveFront passenger door central locking driveRear left door central locking driveRear right door central locking drive |
| 67 | 30A Control unit with display radio navigation system Main unitVoltage regulatorInstrument Cluster Control UnitControl unit with display for radio navigation systemHead device |
| 25A Main unit Control unit with display for radio navigation system | |
| 68 | 40A Heater and air conditioning mode selection switch 40A Heater and air conditioning mode selection switch, Control unitSupply fan cut-off relayAir Conditioner Control Unit |
| 69 | 15A interface for external use |
| 70 | Unused |
| 40/30A Starter relay 1Starter relay 2 | |
| 71 | 30A interface for outdoor use |
| 72 | 5/10A interface for external use |
Fuse box (models from 2013)
Since July 2013, a new 68-socket SC fuse box has been installed in Volkswagen Amarok cars (under the dashboard on the driver’s side). It differs from the old 72-socket block primarily visually in that the vertical rows of smaller fuses (MINI, 8 pieces in a row) alternate with rows of larger fuses (ATO, 9 pieces in a row).
In the old 72-socket block, there were first 4 rows of MINI fuses, then 4 rows of ATO fuses, 9 pieces in all rows.
Description
| 1 | 10A washer pump |
| 2 | 15A Heater and operating mode selection switchBitron fan control sensor, front Climatronic ControllerAir conditioning controllerVehicle position tracking controllerAutomatic transmission controllerOn-board power control unitInner Power |
| 3 | 15A Ignition and Starter Switch Control Unit for Vehicle Position TrackingOn-board power control unitInner Power |
| 4 | Alarm Siren 15A Power Relay Class ThirtySteering Column Switch BlockSwitch for dipped beam and light signals (including main beam) |
| 5 | 15A Differential lock control unit |
| 6 | 15A On-board Power Control UnitLeft fog light bulbRight fog light bulbLeft reversing lampRight reversing bulbInterface for external use |
| 7 | 15A On-board Power Control UnitSwitch to disable the interior protection systemFront heating lampCentral courtesy lightFront left position lightFront right position light |
| 8 | 15A Trailer detector control unit -J345- |
| 9 | 40/30A Headlight relay Starter relay Motronic power supply relay Unloading relay class 58b |
| 10 | 20A Trailer recognition control unit |
| 11 | 20A Trailer recognition control unit |
| 12 | 30A Distribution Box Control Unit |
| 13 | 30A Driver door control unit |
| 14 | 30A Front Passenger Door Control Unit |
| 15 | 20A Cooling pump relay Power supply relay cl.30 Auxiliary coolant heater relay Auxiliary heater control unit |
| 30A Blower fan relay Power relay cl.30 Auxiliary coolant heater relay Auxiliary heater control unit | |
| 20A Additional heater control unit | |
| 16 | 20A On-board Power Control UnitDirection indicator (cl. 49)Brake light (terminal 54) |
| 17 | 25A Control unit with display for radio navigation system Main unit Connector, 8-pin |
| 18 | 5A Instrument cluster |
| 19 | 10/5A Left fog lampRight fog lamp Rear fog warning lamp |
| 20 | 5A On-board Power Control Unit |
| 21 | 5A Left daytime running light module lamp Right daytime running light module lamp |
| 22 | 10A Positive connection (58 D1) in instrument cluster and controls harness B342 Connection 3 (58d) in main harness B472 Connection 8 in main harness N2 Connection 1 in headlamp range control harness R14 Connection 1 (open) in driver’s door harness |
| 23 | 5A Clutch Pedal Switch Air Mass Meter Fuel Pump RelayGlow Plug Control Unit Cooling Pump RelayRadiator fan control unit Kl. 30 Boost pressure control solenoid valveExhaust flap valveExhaust gas recirculation cooler changeover valve |
| 24 | 10A Fuel Pressure Regulator Fuel Metering Valve |
| 10A Boost pressure control solenoid valve Adsorber solenoid valve 1 Intake camshaft control valve valve 1Turbocharger bypass valveInlet flap valve | |
| 25 | 5A Coolant circulation pump after engine shutdown |
| 15A Engine Control Unit | |
| 26 | 7.5A/10A External interface Left main beam Left dipped beam |
| 27 | 10/15A On-board Power Control Unit Left Headlight Right Headlight External InterfaceInstrument Cluster Control UnitHigh beam indicator light |
| 28 | 10A external interface Right headlightRight dipped beam bulb |
| 29 | Unused |
| 10A Tiptronic switch Tachograph Electromagnet blocking key removal from the ignition Additional water heater radio signal receiver Diagnostic connectorSteering Column Switch BlockSpiral cableMultifunction steering wheel control unit | |
| 30 | 5A External use interface External use interface |
| 20A Left fog lampRight fog lamp External interface | |
| 31 | 15/30A interface for outdoor useIgnition and starter switchPower relay class fifteenOn-board power control unitSteering Column Switch BlockWindshield washer pump and headlight cleaning system switch |
| 32 | 15A Lambda probe heater Lambda probe heater 1 after catalytic converter |
| 33 | 15A Ignition Coil |
| 20A Air Mass Meter Engine Control Unit | |
| 34 | 20A Fuel Pump Control UnitBooster fuel pump |
| 35 | 5A Left seat heating button Right seat heating button |
| 36 | 5A Exterior mirror adjuster |
| 37 | 15A interface for external use |
| 38 | 5A Tiptronic switch Automatic gearbox control unit -J217-Air mass meterEngine Controller Voltage Stabilizer |
| 39 | 10A Airbag ControllerFront passenger airbag deactivation warning light |
| 40 | 5A Heater and operating mode selection switchASR and ESP deactivation buttonDriving program buttonABS control unitAnti-theft alarm relay 1Instrument clusterPaddle switch blockSteering angle sensor |
| 41 | 10A Headlight Leveling ControllerTrailer sensor control unit Crankcase heater resistor 8-pin connector Electrochromic interior rearview mirror Left headlight range adjustment actuatorRight headlight range adjustment motorRight washer nozzle heating resistorRight windshield washer nozzle heating resistor |
| 42 | 10A, key start-stop mode switch brake light reversing light switch tachograph high pressure sensor air pollution sensor level sensor and oil temperature lock control unit differential unit parking aid control management block transfer case transfer case indicator light normal mode on the transfer case control panelTruck Platform BacklightDiagnostic connectorVehicle position tracking control unitInstrument clusterSteering Column Switch BlockCruise control switchSet key (SET) cruise controlSpiral cableMultifunction steering wheel control unit |
| 43 | Socket/cigarette lighter 25A |
| 44 | 20A light switch |
| 45 | 25A Seat heating control unit |
| 46 | 25A 12V socket 2 12V socket 3 |
| 47 | 5A interface for external useInterface for external useIgnition and starter switchPower relayOn-board power control unitPower Relay 2Heater switch and operating mode selection |
| 48 | 25A Control unit with display for radio navigation system Main unit Connector, 8-pin |
| 49 | 5A Light switchStarter relay 1 Starter relay 2 |
| 20A light switch | |
| 50 | 5A interface for external use |
| 51 | 30A Starter Relay 1Starter relay 2Starter |
| 52 | 5A interface for external use |
| 53 | 5A Special Design Control Unit Loading Platform Lighting Lamp |
| 10/15A Heater and mode selector switch Tachograph Fan control sensor Bitron, frontClimatronic controllerAir conditioning controller | |
| 54 | 5A Instrument cluster |
| 55 | 15A On-board Power Control UnitInterference FilterHeating element for outside mirrors |
| 56 | 10A Rear view camera control unit |
| 57 | 5A Engine Control Unit |
| 58 | Light switch 5A |
| 59 | 10A Tiptronic Switch Tachograph Interior Monitoring Sensor Rain and Light Sensor Electric Fuel Pump Relay 2Display panel Telephone control panel control unit – Ignition key removal solenoid Radio signal receiver for additional water heater Diagnostic connectorCentral unit for special installation Load bed lighting lampPump relay cooling systemPower supply relay class 30 Additional coolant heater relaySteering Column Switch BlockSpiral cableMultifunction steering wheel control unit |
| 60 | 25A On-board Power Control UnitCentral locking actuator for filler flapCentral locking drive |
| 61 | 15A light switch |
| 25A Voltage StabilizerFuse 18, 48 on fuse box C | |
| 62 | 30A On-board Power Control UnitRear window heating elementHeated rear window relay |
| 63 | 30A On-board Power Control UnitHigh-pitched sound signalLow beep soundAnti-theft alarm buzzerAnti-theft alarm relay 1External interface |
| 64 | 30A Rear left door control unit |
| 65 | 30A Rear right door control unit |
| 66 | 20A On-board Power Control UnitLeft main headlight |
| 67 | 20A On-board Power Control UnitRightheadlight headlight bulb leftreversing lamp right reversing light; |
| 68 | 30A On-board Power Control UnitWiper motor control unitWiper motor |
Additional items
An additional fuse box or separate components may be located next to the steering rod.
Description
| 40 | Heating and operating mode switch Air conditioning controller Supply fan |
| 40 | ABS control unit |
Relay box
It is located on a bracket on the driver’s side under the dashboard. The relay box bracket is completely hidden behind the dashboard. The SC fuse box is also attached to the same bracket. There may also be an on-board power control unit integrated into the relay/fuse box bracket (SC) itself.
Volkswagen Amarok (2009-2016) fuses and relays. Volkswagen Amarok (2009-2016) fuse diagram.
