Applies to vehicles produced in the years:
2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017.

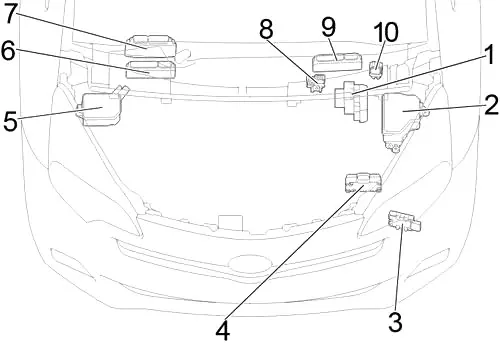

Engine compartment
- Skid control unit with actuator
- Fuse box
- Fuel pump control unit
- ECO Run Vehicle Converter
- Fuse box 2
- LHD 1NR-FE: ECM
- LHD 1ND-TV: ECM
- Fuse link block
- RHD: ECM
- Glow plug relay
Engine compartment fuse box 1

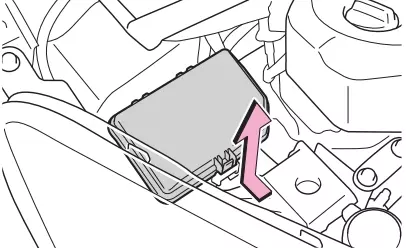

Press the tab and remove the cover.

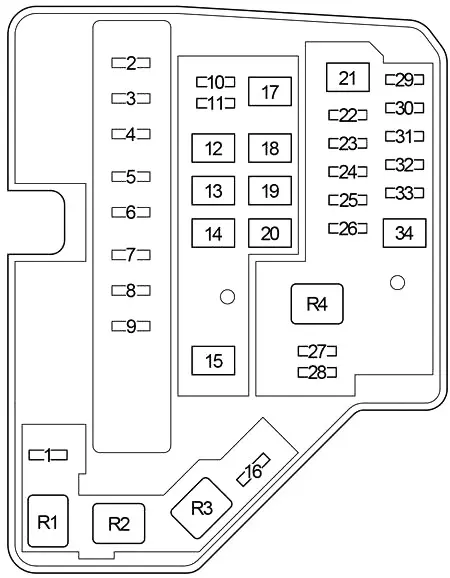

| Number | Ampere [A] | Description |
| 1 | 7.5 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 2 | 20 | Petrol: Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 30 | Diesel: Multi-port fuel injection system / Sequential multi-port fuel injection system, fuse “EFI №2” | |
| 3 | 7.5 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 4 | 10 | Horn |
| 5 | 10 | Stop & Start system, multi-port fuel injection system / sequential multi-port fuel injection system |
| 6 | 10 | Intelligent start and entry system, multi-port fuel injection system / sequential multi-port fuel injection system, multi-mode manual transmission, SRS airbag system, steering lock system, brake lights, Stop & Start system |
| 7 | 15 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 8 | 7.5 | Counter and meters, Stop & Start system |
| 9 | – | – |
| 10 | – | – |
| 11 | 25 | Electric heater, multi-port fuel injection system / sequential multi-port fuel injection system |
| 12 | 50 | Electric power steering |
| 13 | 30 | ABS, VSC |
| 14 | 30 | Rear window defroster |
| 15 | 80 | PTC heater, exterior mirror defrosters |
| 16 | – | – |
| 17 | 40 | Air conditioning system |
| 18 | – | – |
| 19 | 30 | Electric cooling fan |
| 20 | 50 | ABS, VSC |
| 21 | 40 | Start and stop system |
| 22 | 30 | Boot system |
| 23 | – | – |
| 24 | 25 | Electric lock |
| 25 | 30 | Fuses “DOME”, “ECU-B №1”. |
| 26 | 20 | Steering lock system |
| 27 | 5 | ECU main body, intelligent input and start system |
| 28 | 15 | Interior lighting, audio system, VSC |
| 29 | 10 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 30 | 10 | Turn on the traffic lights |
| 31 | 7.5 | Multi-port fuel injection system / sequential multi-port fuel injection system, intelligent entry and start system, start system, multi-mode manual transmission |
| 32 | 5 | Gauges and meters, electric lock, wireless remote control , Stop & Start system, intelligent access and start system, multi-mode manual transmission, air conditioning system |
| 33 | – | – |
| 34 | 50 | Fuses “EFI MAIN”, “ECD MAIN”, “EFI №2”, “EFI №3”, “IG2”, “IGN”, “MET”, “HORN” |
| Relay | ||
| R1 | Electric cooling fan (FAN №2) | |
| R2 | Electric cooling fan (FAN №1) | |
| R3 | Heated rear window (DEF) | |
| R4 | Starter System (ST) | |
| with Stop & Start system; 1NZ-FE: Starting system (ST2) | ||
Engine compartment fuse box 2
Press the tab and remove the cover.

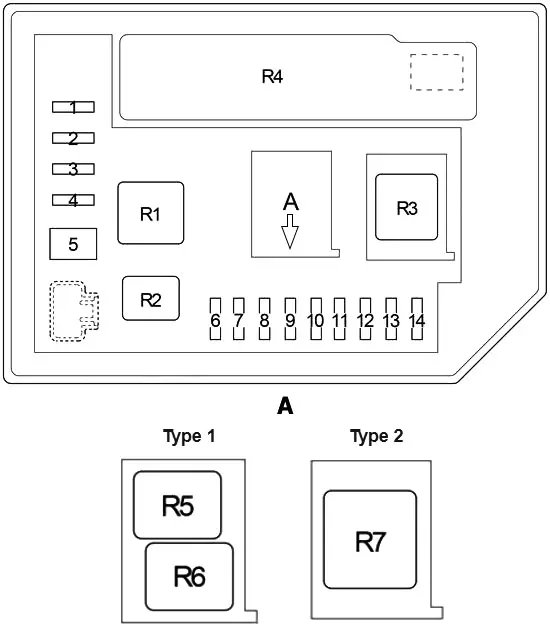

| Number | Ampere [A] | Description |
| 1 | – | – |
| 2 | 15 | Reflector |
| 3 | 10 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 4 | 7.5 | “H-LP RH LO”, “H-LP LH LO” fuses. |
| 5 | 50 | Multi-mode manual transmission |
| 40 | with Stop & Start system; 1NZ-FE: Start system | |
| 6 | 10 | Right headlight (high beam) |
| 7 | 10 | Left headlight (high beam), indicator and meters |
| 8 | 10 | Halogen: right headlight (low beam) |
| 15 | HID: right headlight (low beam) | |
| 9 | 10 | Halogen: Left headlight (low beam), manual headlight leveling knob |
| 15 | HID: Left headlight (low beam), manual headlight leveling knob | |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| Relay | ||
| R1 | Dimmer (DIM) | |
| R2 | Daytime running lights / Anti-theft protection (EU-DRL / S-HORN) | |
| R3 | Headlights / Daytime Running Lights (H-LP / US-DRL) | |
| R4 | Integration relay | |
| R5 | 1NR-FE, 1ND-TV: daytime running lights (DRL) | |
| with Stop & Start system 1NZ-FE: Starter ((ST) before May 2014) | ||
| R6 | 1NR-FE, 1ND-TV: (O/P MTR) | |
| R7 | Multi-Mode Manual Transmission (MMT) | |
Fuse link block

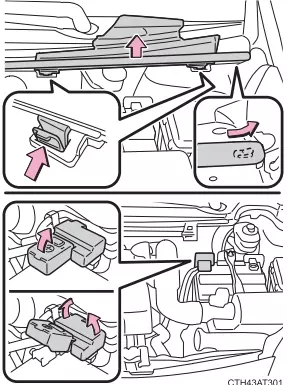

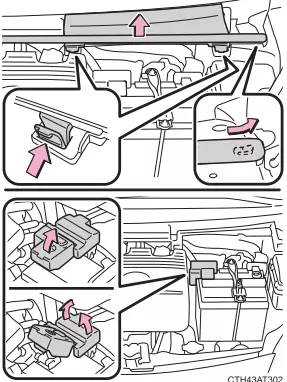

Pull the rubber strip on the edge to release it from the cover, then press the tabs and remove the cover. Remove the battery terminal cover and then the fuse box cover.
Left hand traffic
Drive on the right

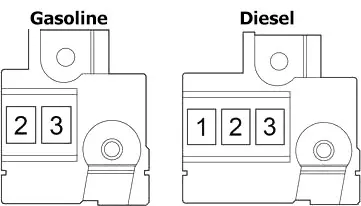

| Number | Name | Ampere [A] | Description |
| 1 | 80 | Engine Glow System | |
| 2 | PRINCIPAL | 80 | “BBC”, “S-HORN”, “ST”, “D/L No. 2”, “DCC”, “STR LOCK”, “ETCS”, “HAZ”, “AM2”, “ECU-B No. 2”, “R/I”, “H-LP MAIN”, “H-LP RH HI”, “H-LP LH HI”, “H-LP RH LO”, “H-LP LH LO”, “MMT” fuses |
| 3 | ALT | 120 | “PWR HTR”, “EPS”, “ABS №2”, “DEF”, “PTC”, “HTR”, “RDI FAN”, “ABS №1”, “TAIL №2”, “PANEL”, “DOORS ” R / R “,” DOZWI P “,” SPRZ-IG no. 1 “,” SPRZ-IG n. 2”, “A/C”, “INDICATOR”, “SPRAYER”, “WIPER”, “RR WIPER”, “P/W”, “PORTA R/L”, “PORTA”, “CIG”, “ACC”, “D/L”, “OBD”, “FOG RR”, “STOP”, “AM1”, Fuses “FOG FR””, “DD/L”, “SHADE”, “S-HTR” |
Passenger compartment
Left hand traffic
Drive on the right

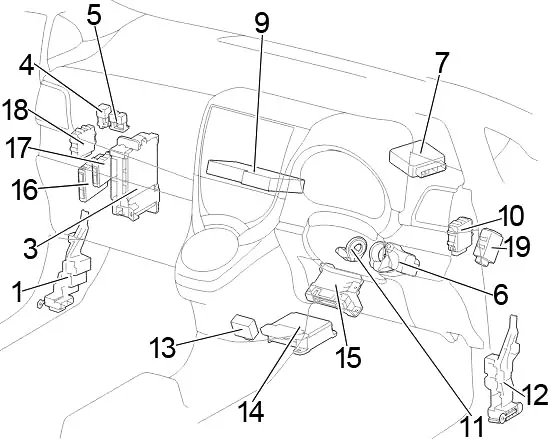

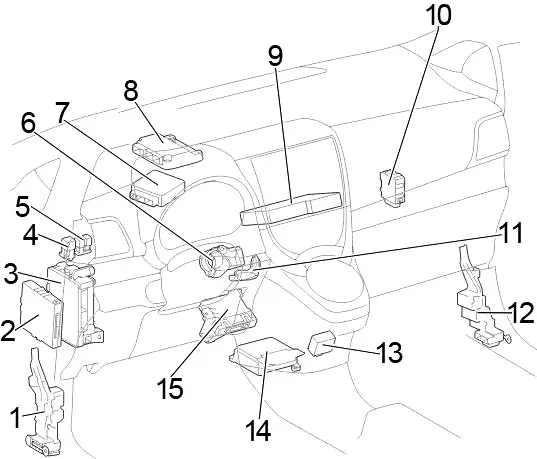

- Connection block
- LHD: Engine Stop & Start ECU without Stop & Start system: Energy management control ECU
- Main body fuse box / ECU
- Heater Relay (HTR)
- Relay box
- Steering Lock Actuator
- Power steering control unit
- Gearbox control unit
- Extension Module
- Windshield wiper relay
- Transponder Key Amplifier
- Connection block
- Gearbox lock control unit
- Central airbag sensor
- Air conditioning amplifier
- RHD: Engine Stop & ECU Start
- RHD: Energy Management Control ECU
- RHD: Headlight Leveling ECU
- RHD: Double lock door control relay
Fuse box diagram in passenger compartment

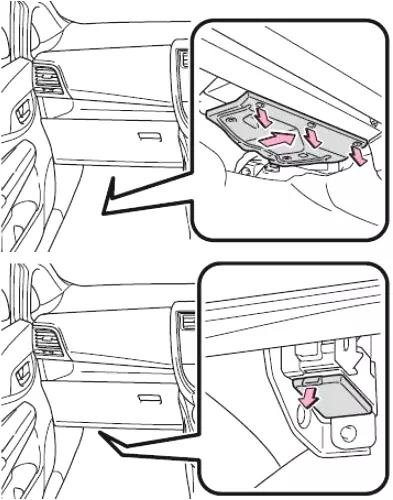

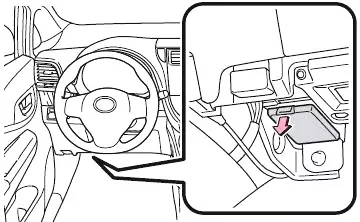

The fuse panel is located under the left side of the dashboard.
Left hand drive: remove the cover.
Right-hand drive: Remove the cover and then remove the cover (do not remove the cover with excessive force as it is fixed to the footwell light).

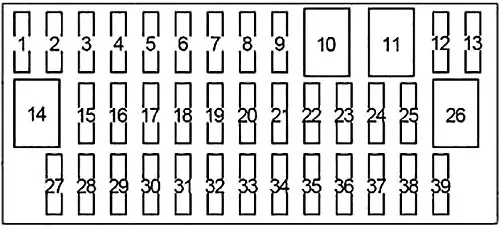

| Number | Ampere [A] | Description |
| 1 | – | – |
| 2 | – | – |
| 3 | – | – |
| 4 | 15 | Seat heaters |
| 5 | – | – |
| 6 | – | – |
| 7 | – | – |
| 8 | 25 | Panoramic awning |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | 25 | Multi-port fuel injection system / Sequential multi-port fuel injection system |
| 13 | – | – |
| 14 | – | – |
| 15 | 15 | Front fog lights, pressure gauge and meters |
| 16 | 7.5 | Boot system |
| 17 | 7.5 | Multi-port fuel injection system/sequential multi-port fuel injection system, intelligent entry and start system, ABS, VSC, multi-mode manual transmission, brake lights, high-mounted brake light, gear lock control system |
| 18 | 7.5 | Rear fog light, pressure gauge and meters |
| 19 | – | – |
| 20 | 7.5 | On-board diagnostic system |
| 21 | 25 | Electric door locking system |
| 22 | 5 | ECU main body, exterior mirrors, audio system, Stop & Start system, gear lock control system |
| 23 | 15 | Electrical outlets |
| 24 | 20 | Electric windows |
| 25 | 20 | Electric windows |
| 26 | 30 | Electric windows |
| 27 | 15 | Rear windshield wiper |
| 28 | 20 | Windshield wiper |
| 29 | 15 | Window cleaner |
| 30 | – | – |
| 31 | – | – |
| 32 | 10 | Reversing light, gear shift lock control system, rear seat belt warning lights, automatic anti-glare mirror coating, multi-point guidance, audio system, panoramic roof, multi-port fuel injection system / sequential multi-port fuel injection system, rain sensor |
| 33 | 7.5 | Air conditioning, electric heating, heated rear window, exterior mirrors |
| 34 | 5 | ABS, VSC, Stop & Start system |
| 35 | 5 | Electric cooling fan, rear window heater, electric power steering, main ECU, windshield wipers, VSC |
| 36 | 20 | Electric windows |
| 37 | 20 | Electric windows |
| 38 | 5 | Indicators and meters, dashboard lighting, switch lighting |
| 39 | 10 | Front position lights, rear lights, license plate lights, front fog lights, rear fog lights, multi-port fuel injection system / sequential multi-port fuel injection system, indicator and meters |
Relay box
| Number | Relay |
| R1 | – |
| R2 | Front fog lamp (FR FOG) |
Toyota Verso-S (2010-2017) fuses and relays. Toyota Verso-S (2010-2017) fuses and relays fuse diagram.
