Audi A7 – Fuse Box Diagram
Year of manufacture: 2011, 2012, 2013, 2014, 2015, 2016 and 2017, 2018, 2019.
Cigarette lighter fuse (socket) on Audi A7 The number is located in the fuse box in the passenger compartment.
Places
- Electrical energy distributor in the expansion chamber.
- Fuse and relay box On the right side of the front panel.
- Fuse/relay box and CAN bus platform in the trunk on the right side.
- Main fuse box On the positive terminal of the battery.
- Fuse and relay box in the expansion chamber after the driver’s side (E-Box)
- Junction box i CAN bus concentrator center at the bottom of the left A-pillar.
- Fuse and relay box in the on-board power control unit area .
- Fuse and relay box left side front panel .

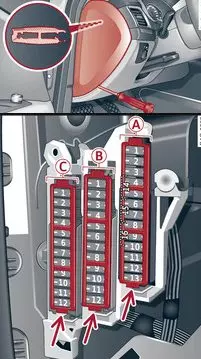

Passenger compartment
Description
| Fuse holder -A- (black) |
|---|
| No. | Description |
| 1 | Electromechanical steering system;Tow hook;Ionizer;Control panel;Heated rear seats;Electromechanical parking brake. |
| 2 | Signal;Air conditioning;Entrance door;Auto-dimming rearview mirror. |
| 4 | Parking assistance;Adjusting the headlight range. |
| 5 | Dynamic control;Airbag;Electronic stability control. |
| 6 | Headlights |
| 7 | “adaptive cruise control” |
| 8 | Passenger seat sensors;Airbag. |
| 9 | “Entrance” |
| 10 | Engine sound;Auxiliary control unit for night vision;“HomeLink” (garage door opener);Parking assistance. |
| 11 | Processing of video camera images |
| 12 | Headlights |
| 13 | Steering column switch module |
| 14 | Terminal 15 (start) |
| 15 | Terminal 15 (engine compartment) |
| 16 | Start-up |
| Fuse holder -B- (brown) |
|---|
| No. | Description |
| 1 | Information and entertainment system |
| 2 | Infotainment system |
| 3 | Front passenger seat |
| 4 | Airbag;Electronic stability control. |
| 6 | Burglar alarm |
| 7 | Electromechanical parking brake |
| 8 | Interior lighting |
| 9 | Windshield heating system;Video camera;Light and rain sensor. |
| 10 | Lumbar support (driver’s seat) |
| 11 | Driver’s seat |
| 12 | Electronic stabilization system |
| 13 | Acoustic signal |
| 14 | Headlights |
| 15 | Heated front seats |
| 16 | Dynamic control |
| Fuse holder -C- (red) |
|---|
| No. | Description |
| 1 | Clutch |
| 2 | Fuel pump |
| 3 | Brake light sensor |
| 4 | AdBlue control unit (diesel engine);Engine acoustics. |
| 5 | Rear door |
| 6 | Entrance door |
| 7 | Electronic stabilization system |
| 8 | Motorcycle Windshield Wipers |
| 9 | Headlight cleaning system |
| 10 | Interior lighting;Air conditioning. |
| 11 | Headlights |
| 12 | Sliding roof |
Box on the right
| Fuse holder -A- (red) |
|---|
| No. | Description |
| 1 | Infotainment system, CD changer |
| 2 | Infotainment system (display) |
| Fuse holder -B- (brown) |
|---|
| No. | Description |
| 1 | Air conditioning |
| 2 | Air conditioning (fan) |
| 3 | Diagnostic interface |
| 4 | Electric ignition lock |
| 5 | Electric steering column adjustment |
| 6 | Steering column switch module |
| 7 | Electric steering column adjustment |
| 8 | Light switch |
| 9 | Windshield display |
| 10 | Instrument panel |
| 11 | Infotainment system, DVD player |

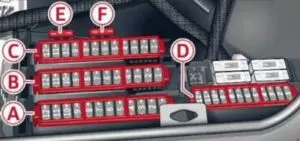

Fuse box in the trunk
Description
| Fuse holder -A- (black) |
|---|
| No. | Description |
| 1 | Fixing / socket for 220 V |
| 2 | Tow bar;Cup holder with drink temperature control. |
| 3 | Tow bar;Move the front passenger seat from the folded position. |
| 4 | Electromechanical parking brake |
| 5 | Electromechanical parking brake |
| 6 | Front door (passenger side) |
| 7 | External rear lighting |
| 8 | Central locking, finishing device |
| 9 | Heated front seats |
| 11 | Heated rear seats;Air conditioning. |
| 12 | Tow hook |
| Fuse holder -B- (red) |
|---|
| No. | Description |
| 1 | Seat belt pretensioners, left |
| 2 | Seat belt pretensioners, right |
| 3 | AdBlue tank (diesel engine) / fuel pump |
| 4 | AdBlue tank (diesel engine) / engine bearing (petrol engine) |
| 5 | Luggage compartment cover with touch screen |
| 6 | Air suspension, adjustable damping |
| 7 | Rear door (front passenger side) |
| 8 | Rear lights |
| 9 | Trunk lid |
| 10 | Rear seat entertainment system |
| 12 | Rear spoiler (Sportback);Sunroof. |
| Fuse holder -C- (brown) |
|---|
| No. | Description |
| 1 | Infotainment system |
| 2 | Information and entertainment system |
| 3 | Information and entertainment system;Interior rearview mirror with automatic display. |
| 4 | Rear view camera;Measuring cameras. |
| 5 | TV tuner |
| 6 | Tank Leak Detection System |
| 7 | Power sockets |
| 8 | Heater |
| 10 | Lumbar support (front passenger seat) |
| 12 | Infotainment system |
| Fuse holder -D- (black) |
|---|
| No. | Description |
| 1 | Air suspension;Shock absorber adjustment;Sports differential;Electromechanical parking brake. |
| 2 | Clutch travel sensor;Automatic transmission. |
| 3 | Places |
| 4 | Rear windshield wiper (Avant) |
| 5 | Side Assist System |
| 6 | Engine sound |
| 7 | Information and entertainment system;Audio amplifier. |
| 8 | “Entrance” |
| 9 | Sports differential |
| 10 | Air conditioning |
| 11 | Tire pressure monitoring system;Heating the passenger compartment with the engine off. |
| 12 | Start/Stop System |
- Fuse holder -E- (black) – Special vehicles / rear seats
- Fuse holder -F- (black) – Heated rear window
