Seat Altea (2011-2015) fuses and relays. Seat Altea (2011-2015) fuse diagram.

Seat Altea – Fuse box diagram

Year of manufacture: 2011, 2012, 2013, 2014, 2015.

Cigarette lighter fuse (power socket) in the Seat Altea Fuse 30 is located in the instrument panel fuse box.Fuse Color Coding

Color	Ampere [A]
light brown	5
red	10
blue	15
yellow	20
natural white	25
Green	30
Orange	40
red	50
white	80
blue	100
grey	150
viola	200

Fuses on the left side of the dashboard

No.	Description	Ampere [A]
1	Empty
2	Empty
3	Empty
4	Empty
5	Empty
6	Empty
7	Empty
8	Empty
9	Airbag	5
10	RSE input (roof screen)	10
11	Empty
12	Left xenon headlight	10
13	Instrument panel (oil level);Instrument Cluster Wiring (BCM);Heating;ABS;ESP;Remote parking control;Entrance door;Flow meter.	5
14	Transmission;Power steering;Brake light sensor;Trailer;ABS;ESP;Haldex;Light switch.	10
15	Heated windshield;Indicator lighting;Diagnostic card;Engine management;Supplementary heating;AFS headlights;Park Pilot.	10
16	Right xenon headlight	10
17	Engine management;RSE system with START STOP function.	10
18	Combi/levers with START STOP function	5
19	Navigation;Radio with START STOP function.	15
20	Park Pilot (parking assistant);Gear lever;ESP switch.	10
21	Empty
22	Volumetric alarm sensor;Horn.	5
23	Diagnostics;Rain sensor;Light switch.	10
24	Towbar pre-installation assistant	15
25	Automatic transmissiondistribution clutch.	20
26	Vacuum pump	20
27	Supply of CSR (ceiling display)without START STOP.	10
28	Rear wiper motor	20
29	Empty
30	Lighter	20
31	Empty
32	Empty
33	Heater	40
34	Empty
35	Empty
36	Empty
37	Empty
38	Empty
39	Trailer control unit(clutch).	15
40	Trailer control unit(indicators, brakes and left side)	20
41	Trailer control unit(Fog lights,reversing the light and the right side).	20
42	BCM wiring distribution board	20
43	Initial trailer installation	40
44	Rear window heating	25
45	Electric windows (front)	30
46	Electric rear windows	30
47	Engine (fuel controller, fuel relay)	15
48	Convenient control	20
49	Heating control	40
50	Heated seats	30
51	Sunroof	20
52	Headlight washer	20
53	Towbar pre-installation assistant	20
54	Taxi (taximeter power supply)	5
55	Towbar pre-installation assistant	20
56	Taxi (transmitter power supply)	15
57	Telephone power supply with START STOP function	10
58	Central control block	30

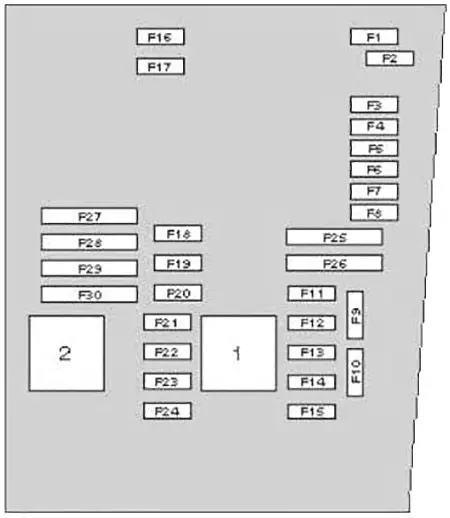

Fuse system, engine compartment, left side

No.	Description	Amp [A]
1	Cleaners	20
2	DQ200 Gearbox	30
3	Cable control unit	5
4	ABS	30
5	AQ change	15
6	Dashboard;Steering column.	5
7	Ignition key	40
8	Radio	15
9	Telephone;TomTom Navigation.	5
10	Engine management	5
	Engine management	10
11	Empty
12	Electronic control unit	5
13	Supply of petrol injection module	15
	Power supply to the diesel injection module	30
14	Coil	20
15	Engine management	5
	Relay pump	10
16	Adequate lighting	30
17	Horn	15
18	Empty
19	Pure	30
20	Water pump	10
	Pressure sensor pump for 1.8 engine	20
21*	Lambda probe	15
22	Brake pedal, speed sensor	5
23	Engine management	5
	Engine management	10
	Engine management	15
24	ARF, change the valve	10
25*	ABS Pump	40
26	Lighting on the left	40
27*	Engine management	40
	Engine management	50
28	Empty
29	Electric windows (front and rear)	50
	Electric windows (front)	30
30	Ignition key	40
* Rated power depending on engine
