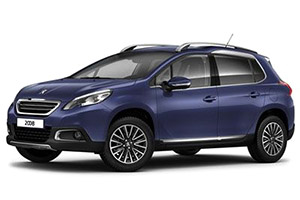

Fuse box diagram (fuse location), location and purpose of fuses Peugeot 2008 (2013, 2014, 2015, 2016, 2017, 2018).
Checking and replacing fuses
Your vehicle’s electrical system is protected from overload by fuses. If any lights, accessories, or controls in your vehicle do not work, check the appropriate circuit protector. If a fuse blows, the internal element will melt.
Before replacing a fuse, you must:
- The car must be parked with the ignition off,
- Disconnect all electricity consumers,
- The faulty fuse must be identified using the placement tables and diagrams.
When replacing a fuse, always:
- Use the special tweezers to remove the fuse from the holder and check the condition of its element. The extraction tweezers are attached to the back of the instrument panel or the glove box fuse box cover;
- Replace the defective fuse with a fuse of the same rating (same color); using a fuse of a different rating may cause a malfunction (risk of fire).
If the same fuse blows again, do not use the system and contact a PEUGEOT dealer or a qualified workshop as soon as possible to have the vehicle’s electrical system checked.
Notification
- Never use fuses with a higher or lower amperage than specified. This may damage the electrical system or cause a fire.
- Never replace a broken fuse with anything other than a new fuse (e.g. wire, foil, etc.). Always use a good fuse of the same color.
- Your vehicle’s electrical system is designed to work with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact your PEUGEOT dealer or a qualified workshop.

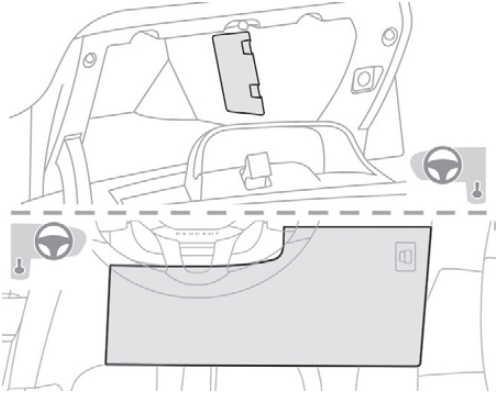

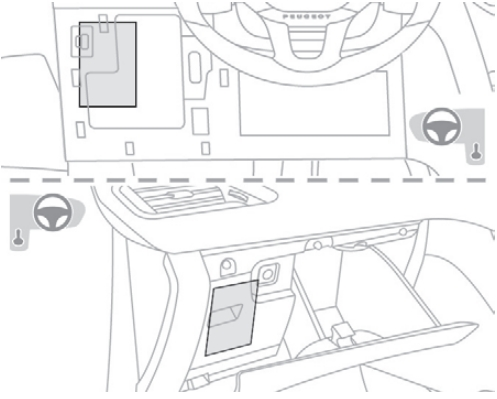

Fuse boxes in the passenger compartment

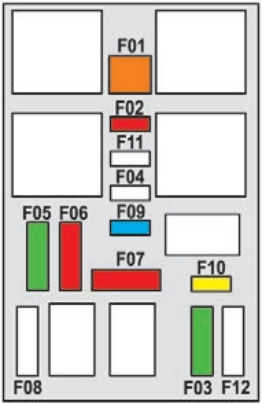

On the right
| No. | A | Functions |
|---|---|---|
| 1 | 40 | Rear window heating |
| 2 | 10 | Heated rear view mirrors |
| 3 | 30 | One-touch front windows |
| 4 | — | Not used |
| 5 | 30 | One-touch rear windows |
| 6 | 10 | Folding exterior rear view mirrors |
| 7 | 10 | Folding exterior rear view mirrors |
| 8 | — | Not used |
| 9 | 15 | Front electric windows (not one-touch) |
| 10 | 20 | Hi-Fi amplifier |
| 11 | — | Not used |
| 12 | — | Not used |

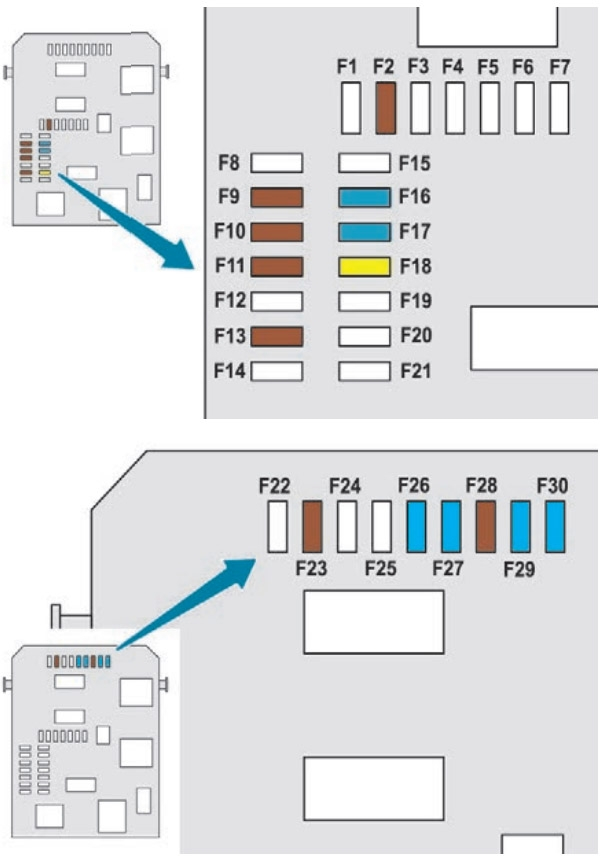

Left
| No. | A | Functions |
|---|---|---|
| 2 | 5 | Rear view mirrors, headlights, diagnostic connector |
| 9 | 5 | Anxiety |
| 10 | 5 | Independent telematics unit |
| 11 | 5 | Electrochromic rear view mirror, additional heating, Active City Brake |
| 13 | 5 | Hi-Fi amplifier, parking sensors, rear view camera |
| 16 | 15 | Front 12V socket |
| 17 | 15 | Audio system (without touch screen) |
| 18 | 20 | Touch screen, audio system (if touch screen) |
| 23 | 5 | Cosmetic mirrors, map reading lamps |
| 26 | 15 | Horn |
| 27 | 15 | Screen washer pump |
| 28 | 5 | Anti-thief |
| 29 | 15 | Air conditioning compressor |
| 30 | 15 | Rear wiper |

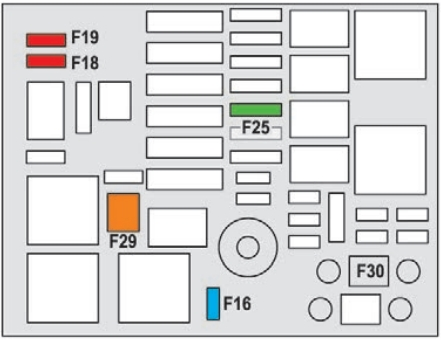

Fuse box in the engine compartment

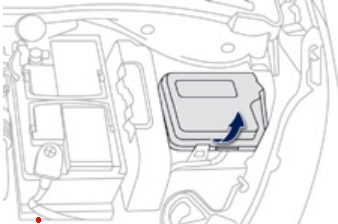

The fuse box is located in the engine compartment next to the battery (on the left side).
To access:
- Remove the cover.
- Replace the fuse.
- When you are finished, close the cover very carefully to ensure the fuse box is properly sealed.
| No. | A | Functions |
|---|---|---|
| 16 | 15 | Daytime running lights |
| 18 | 10 | Right high beam headlight |
| 19 | 10 | Left high beam headlight |
| 25 | 30 | Headlight Washer Relay (Accessory) |
| 29 | 40 | Front wiper motor |
| 30 | 80 | Pre-heater plugs (Diesel) |
