The Mazda CX-50 is a compact crossover from the Japanese company Mazda, which will be produced for the North American market. The car shares a platform with the Mazda3 and Mazda CX-30 models, and in the model range will occupy a place just above the Mazda CX-5, which it exceeds in dimensions.
The model was first presented on November 15, 2021. It is stated that in addition to the regular version of the crossover, an all-terrain version will be available. The Mazda CX-50 will be assembled at a plant in Huntsville, Alabama, where the Toyota Corolla Cross is also assembled.
The article will discuss the fuses and relays in the car.

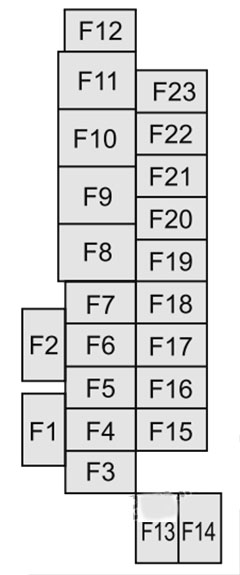

Purpose of fuses in the passenger compartment of the Mazda CX-50
Fuse box location
Purpose of fuses in the engine compartment
| No. | Amps | PROTECTED COMPONENT |
|---|---|---|
| F1 | – | – |
| F2 | – | – |
| F3 | 20A | Heated front seats |
| F4 | 15A | Electric door locks (driver) |
| F5 | 15A | Electric door locks (passenger) |
| F6 | 20A | Rear seat heating |
| F7 | 25A | Electric lift door drive |
| F8 | 30A | Electric seat (passenger) |
| F9 | 30A | Electric windows (driver) |
| F10 | 30A | Electric windows (passenger) |
| F11 | 30A | Electric seat (driver) |
| F12 | – | – |
| F13 | 15A | Audio |
| F14 | 25A | Audio |
| F15 | 15A | Liftgate lock |
| F16 | 15A | Lighting |
| F17 | 10A | Brake lights |
| F18 | 10A | Reversing lights |
| F19 | 10A | Rear direction indicators |
| F20 | 10A | Rear lights |
| F21 | 10A | Rear lights |
| F22 | 7.5A | Airbag |
| F23 | – | – |

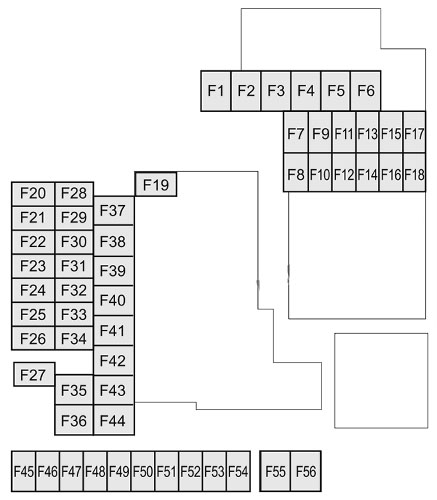

Fuses in the engine compartment are located on the left side, near the battery.
| No. | Amps | PROTECTED COMPONENT |
|---|---|---|
| F1 | – | – |
| F2 | 20A | Windscreen wiper defroster |
| F3 | 30A | Engine management system |
| F4 | 20A | S-VT |
| F5 | 40A | Engine management system |
| F6 | – | – |
| F7 | 20A | Fuel pump |
| F8 | 15A | Engine management system |
| F9 | 15A | Transmission control system |
| F10 | 10A | Engine management system |
| F11 | 7.5A | Air conditioner |
| F12 | 15A | Engine management system |
| F13 | – | – |
| F14 | 15A | Electric water pump |
| F15 | – | – |
| F16 | 15A | To protect various circuits |
| F17 | – | – |
| F18 | 15A | To protect various circuits |
| F19 | 60A | Power steering system |
| F20 | 15A | Headlight (left) 1 |
| F21 | 15A | Headlight (right) 1 |
| F22 | 15A | Keyless entry system |
| F23 | 30A | ABS, Dynamic Stability Control |
| F24 | 15A | Headlight (left) 2 |
| F25 | 15A | Headlight (right) 2 |
| F26 | 7.5A | On-board diagnostics |
| F27 | 25A | To protect various circuits |
| F28 | 25A | To protect various circuits |
| F29 | 15A | Windscreen washer |
| F30 | 15A | Auxiliary sockets |
| F31 | 15A | Horn |
| F32 | – | – |
| F33 | – | – |
| F34 | – | – |
| F35 | 50A | ABS, Dynamic Stability Control |
| F36 | – | – |
| F37 | 30A | Rear window defroster |
| F38 | 50A | To protect various circuits |
| F39 | – | – |
| F40 | 40A | Air conditioner |
| F41 | 30A | Audio |
| F42 | 20A | Windscreen wipers |
| F43 | 30A | Cooling fan |
| F44 | 30A | Starter |
| F45 | 10A | Engine management system |
| F46 | 15A | Audio |
| F47 | 15A | To protect various circuits |
| F48 | 7.5A | Airbag |
| F49 | 15A | Instrument cluster |
| F50 | 15A | Lighting in the room |
| F51 | 15A | Panoramic sunroof |
| F52 | 15A | Panoramic sunroof |
| F53 | 15A | Engine management system |
| F54 | 15A | i-ACTIVSENSE |
| F55 | 50A | To protect various circuits |
| F56 | – | – |
