The 4th generation Kia Sportage was produced in 2016, 2017, 2018, 2019, 2020, 2021 and to the present day with both gasoline and diesel engines. In this publication, you will find a description of the fuses and relays of the 4th generation Kia Sportage with block diagrams and their locations. Let’s highlight the fuse responsible for the cigarette lighter.

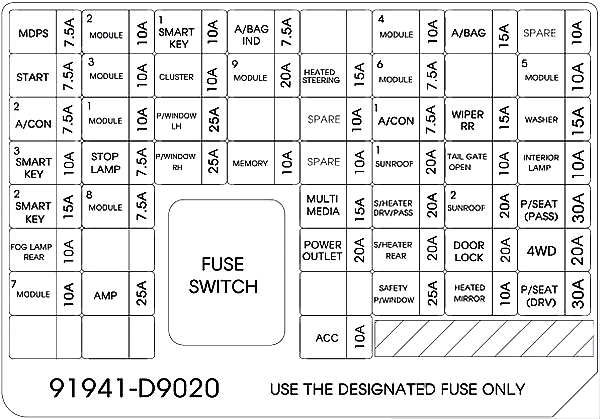

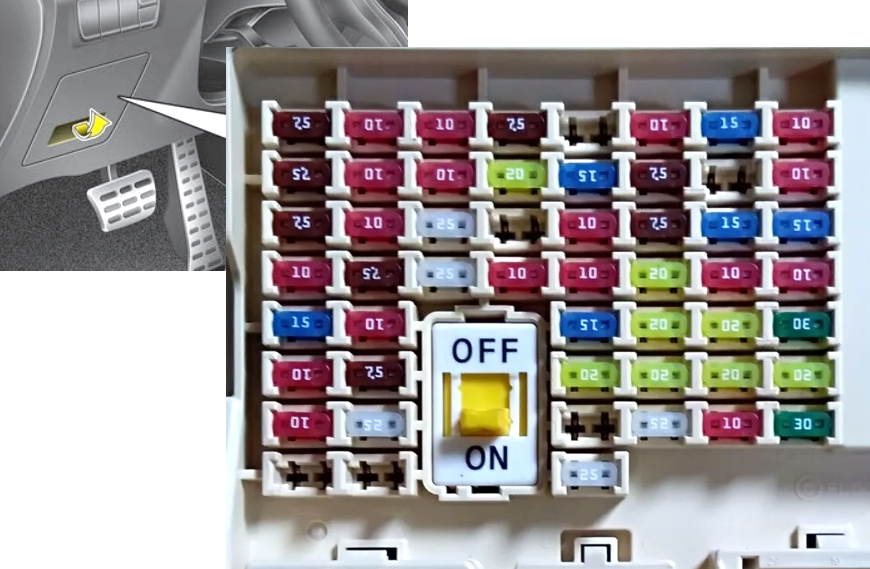

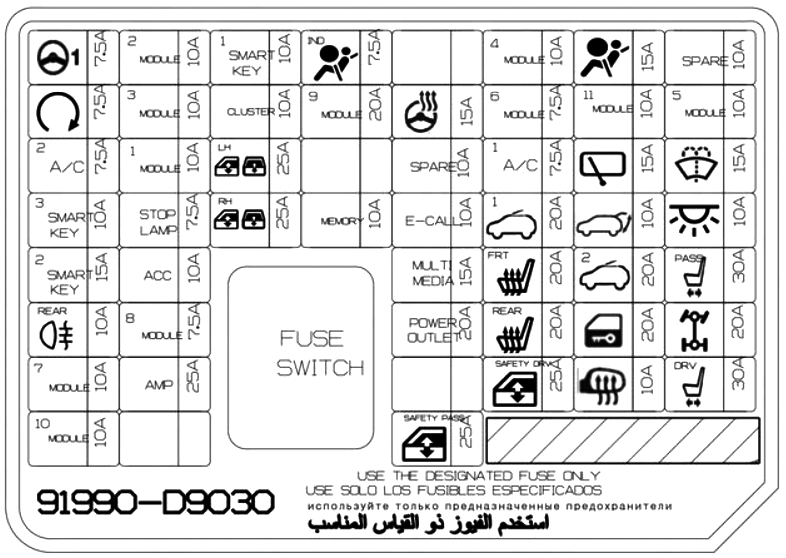

Block in the cabin
It is located under the instrument panel on the driver’s side behind a protective cover.
| MDPS | 7.5A Electric Power Steering Unit |
| MODULE 2 | 10A Headlight left / right |
| SMART KEY 1 | 10A Smart Key Control Module / Immobilizer Module |
| A/BAG IND | 7.5A Instrument panel (indication) |
| MODULE 4 | 10A Console Switch, Blind Spot Detection Radar Left/Right, ECD AWD, Crash Pad Switch, BCM, Lane Departure Warning Control Module |
| A/BAG | 15A SRS Control Module |
| START | 7.5A [Without Smart Key and IMMO.] ICM Relay Box (Alarm Relay), Ignition Switch [With Smart Key / IMMO.] Gear Switch, ECM, Smart Key Control Module |
| MODULE 3 | 10A Front/Rear Seat Heater Control Module, ILL. ATM Shift Lever, Front Seat Ventilation Seat Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Audio, Air Conditioning Control Module, Multi-Purpose Control Socket, Adaptive Front Lighting Module |
| CLUSTER | 10A Instrument cluster |
| MODULE 9 | 20A PCB Block (Fuse – ABS 3, VACUUM PUMP 2, ECU 6, AEB, TCU 2, MODULE) |
| HEATED STEERING | 15A BCM |
| MODULE 6 | 7.5A Front/Rear Seat Heater Control Module, Front Ventilated Seat Control Module |
| MODULE 5 | 10A BCM, Smart Key Control Module |
| A/CON 2 | 7.5A Air Conditioner Control Module |
| MODULE 1 | 10A BCM, shift lever |
| P/ WINDOW LH | 25A Main switch window lifter |
| A/CON 1 | 7.5A Air Conditioner Control Module, Cluster Ionizer, E/R Distribution Block (Fan Relay) |
| WIPER RR | 15A Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay) |
| WASHERS | 15A Multi-function switch (windscreen washer) |
| SMART KEY 3 | 10A [Without Smart Key] Immobilizer Module [Smart Key] Smart Key Control Module, On/Off Button |
| STOP LAMP | 7.5A Smart Key Control Module, Brake Light Switch |
| P/ WINDOW RH | 25A Main window switch, Passenger window switch |
| MEMORY | 10A Wireless Charger, Instrument Cluster, Data Link Connector, BCM, ICM Relay Box (Outside Mirror Fold/Unfold Relay), Electro Chromic Mirror, Air Conditioning Control Module, Console Switch |
| SUN ROOF 1 | 20A Luke |
| TAIL GATE OPEN | 10A Trunk door |
| INTERIOR LAMP | 10A Interior lighting, Ignition switch illumination and door opening sensor, interior light, overhead console lamp, left and right front individual lighting lamps, left and right rear individual lighting lamps, trunk light, glove compartment light |
| SMART KEY 2 | 15A Smart Key Control Module |
| MODULE 8 | 7.5A Key Solenoid |
| MULTI MEDIA | 15A Audio, A/V and Navigation, Rear USB , Charger |
| S/HEATER DRV/PASS | 20A Front Seat Heating Control Module, Front Seat Ventilation Control Module |
| SUN ROOF 2 | 20A Luke |
| P/SEAT (PASS) | 30A Passenger Seat Manual Switch |
| POWER OUTLET | 20A Front Socket #1 (Cigarette Lighter) |
| S/HEATER REAR | 20A Rear Seat Heating Control Module |
| DOOR LOCK | 20A Door Lock/Unlock Relay |
| 4WD | 20A AWD ECM |
| MODULE 7 | 10A Hazard warning switch, driver/passenger door outside electric key handle, AEB sensor |
| AMP | 25A Amplifier |
| SAFETY P/ WINDOW | 25A Driver Safety Window Lift Module |
| HEATED MIRROR | 10A Driver/Passenger Power Outside Mirror, A/C Control Module |
| P/SEAT (DRV) | 30A Driver Seat Manual Switch |
| ACC | 10A Rear USB Charger , AMP, Power Outside Mirror Switch, PCB Box (Power Output Relay), Smart Key Control Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger |
The fuse responsible for the cigarette lighter is marked as POWER OUTLET for 20A.
On the back side of the block there may be separate relays responsible for headlights, signal, etc.

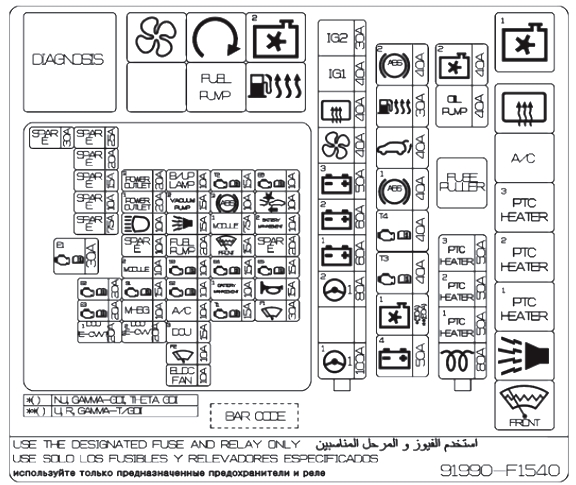

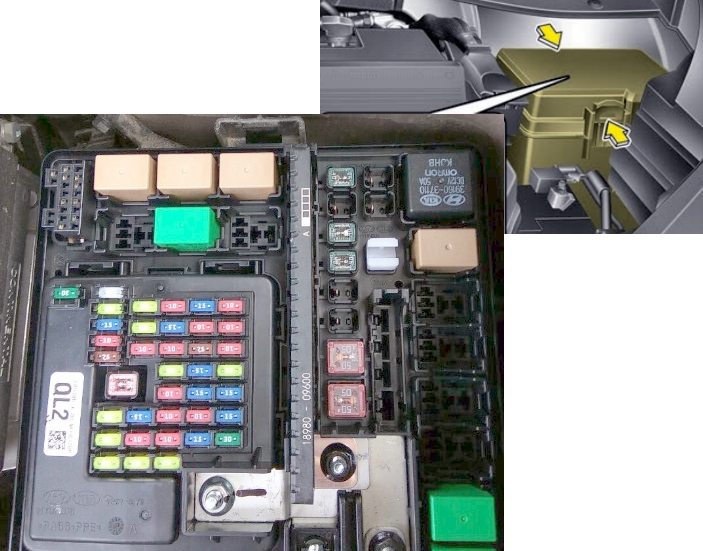

Block under the hood
Located on the left side of the engine compartment.
| COOLING FAN 3 | 80A Cooling Fan Motor |
| MDPS | 80A Electric Power Steering Unit |
| BAT+1 | 60A Intelligent Junction Box (IPS 2(5CH),IPS 3(2CH),IPS 4(2CH),IPS 5(2CH),IPS 6(1CH),AMP fuse),Module 10 |
| BAT+2 | 60A Intelligent Distribution Block (IPS 1 (5-channel), fuse – MODULE 7, SMART KEY 2, SMART KET 3, STOP LAMP) |
| BAT+3 | 50A Intelligent Distribution Block (Fuse – SUNROOF 1, SUNROOF 2, S/HEATER DRV/PASS, S/HEATER REAR, SAFETY P/WINDOW, Window Lift Relay) |
| BLOWER | 40A Fan Relay |
| REAR HEATED | 40A Relay 2 (Rear Window Defogger Relay) |
| IG1 | 40A Ignition Key, With Smart Key: PCB Block (PDM(IG1)/PDM(ACC) Relay) |
| IG2 | 30A Relay 11 (Starter relay), [Without electronic keys] Ignition switch, [With electronic keys] PP unit (PDM relay (ZAZH2)) |
| BAT+4 | 50A Intelligent Distribution Block (Fuse – AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPENING, DOOR LOCK, Leakage Current Device Automatic Cut-off Relay), Module 8 |
| COOLING FAN 1 | 50A Relay 1 Cooling Fan |
| ABS 1 | 40A ESC Control Module Multi-Purpose Test Connector |
| POWER LIFTGATE | 40A Electric Trunk Lid Module |
| ABS 2 | 40A ESC Module |
| COOLING FAN 2 | 40A Relay 1 Cooling Fan |
| WIPER FRT 2 | 10A BCM |
| E-CVVT 2 | 20A PCM, Feed Module Controller |
| E-CVVT 1 | 20A PCM, Feed Module Controller |
| WIPER FRT 1 | 30A Without smart key: ignition key, With smart key: PDM relay (IG2) |
| TCU 1 | 15A PCM |
| A/C | 10A Air supply control unit relay |
| ECU 3 | 20A PCM |
| HORN | 15A Signal Relay |
| BATTERY MAN. | 10A Battery Sensor |
| SENSOR 2 | 10A Oil Control Valve, Purge Control Solenoid Valve, Variable Air Volume Solenoid Valve, RCV Control Solenoid Valve |
| SENSOR 1 | 15A Oxygen Sensor (Up/Down) |
| ECU 2 | 20A Ignition Coil #1/#2/#3/#4 |
| ECU 4 | 15A PCM |
| SENSOR 3 | 10A E/R Junction Block (Cooling Fan Relay 1), Canister Close Valve, E/R Junction Block (Air Control Unit) |
| MODULE 2 | 10A Junction Block E/R (Fuel Pump Relay) |
| VACUUM PUMP 1 | 20A Vacuum Pump |
| DEICER | 15A Junction Block E/R (Anti-icing Relay) |
| FUEL PUMP | 20A Fuel Pump Relay |
| MODULE 1 | 7.5A Brake Light Switch |
| B/ALARM HORN | 15A Engine compartment distribution box (relay 7 – alarm siren relay) |
| H/LAMP HI | 10A Headlight relay “BI-Function” |
| FCA | 10A Front Crash Assist (FCA) Sensor |
| ABS 3 | 10A ESC Module |
| VACUUM PUMP 2 | 15A Vacuum Pump, Vacuum Switch |
| POWER OUTLET 1 | 20A Front Socket #2 |
| ECU 6 | 10A PCM/ECM |
| TCU 2 | 15A [AT] TCM, selector position sensor, [MT] reverse light switch |
| B/UP LAMP | 10A Rear bumper light left / right, electro chromic mirror |
| POWER OUTLET 2 | 20A Rear Socket |
| ECU 1 | 30A Engine Control Relay |

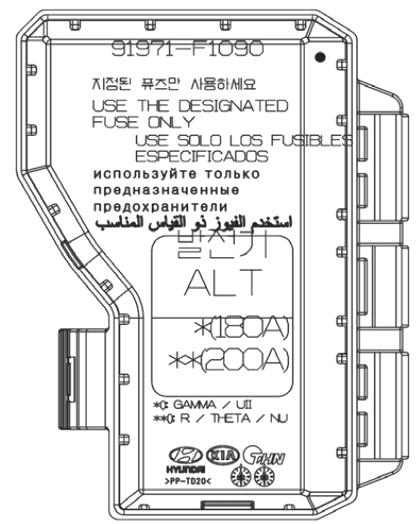

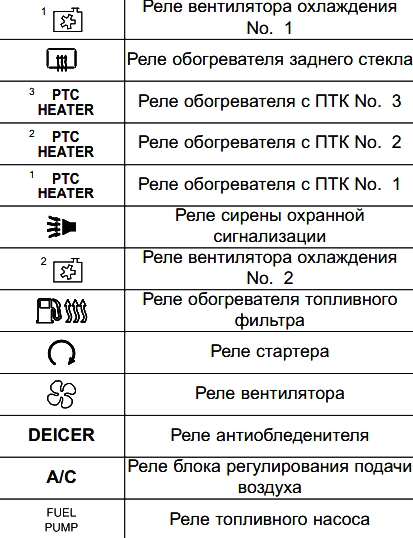

Purpose of the relay
On the positive terminal of the battery there is a high-power main power fuse in the form of a fusible link.
Kia Sportage 4 fuses and relays. Kia Sportage 4 fuse diagram.
