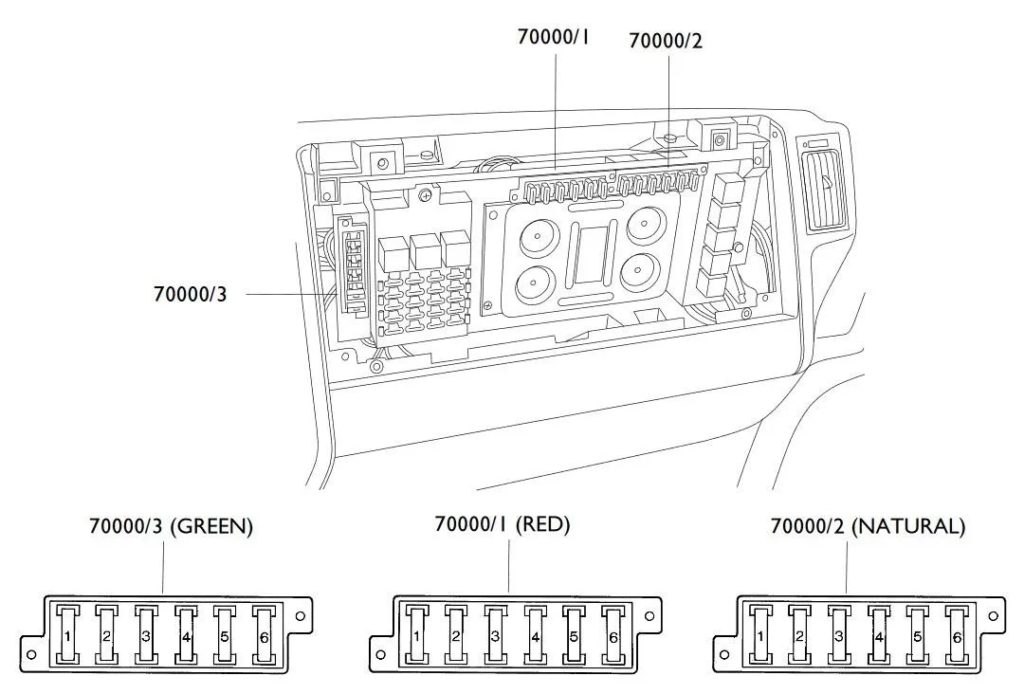

Fuse assembly
| Position | Number | Amps [A] | Description | Charger |
| 7000/3 | 1 | 30 | Heated windscreen | +30 |
| 2 | 30 | Heated windscreen | +30 | |
| 3 | — | — | — | |
| 4 | — | — | — | |
| 5 | — | — | — | |
| 6 | — | — | — | |
| 7000/1 | 1 | 10 | Auxiliary heater | +30 |
| 2 | 10 | Cigarette Lighter/Headlight Washer/Ceiling Light | +30 | |
| 3 | 10 | Fog lights/rotating lights | +30 | |
| 4 | 10 | Air Conditioner / Adjustable Heated Mirrors | +30 | |
| 5 | 10 | Heated seat | +15/1 | |
| 6 | 10 | Booking lights | +15/1 | |
| 7000/2 | 1 | 20 | Diesel heating/Loading gate/Diesel pre-filter heating/Window lifter | +30 |
| 2 | 20 | Sunroof | +30 | |
| 3 | 20 | Trailer ABS | +30 | |
| 4 | 20 | ABS | +30 | |
| 5 | 5 | ABS-ECAS | +15/1 | |
| 6 | 5 | ABS | +30 |

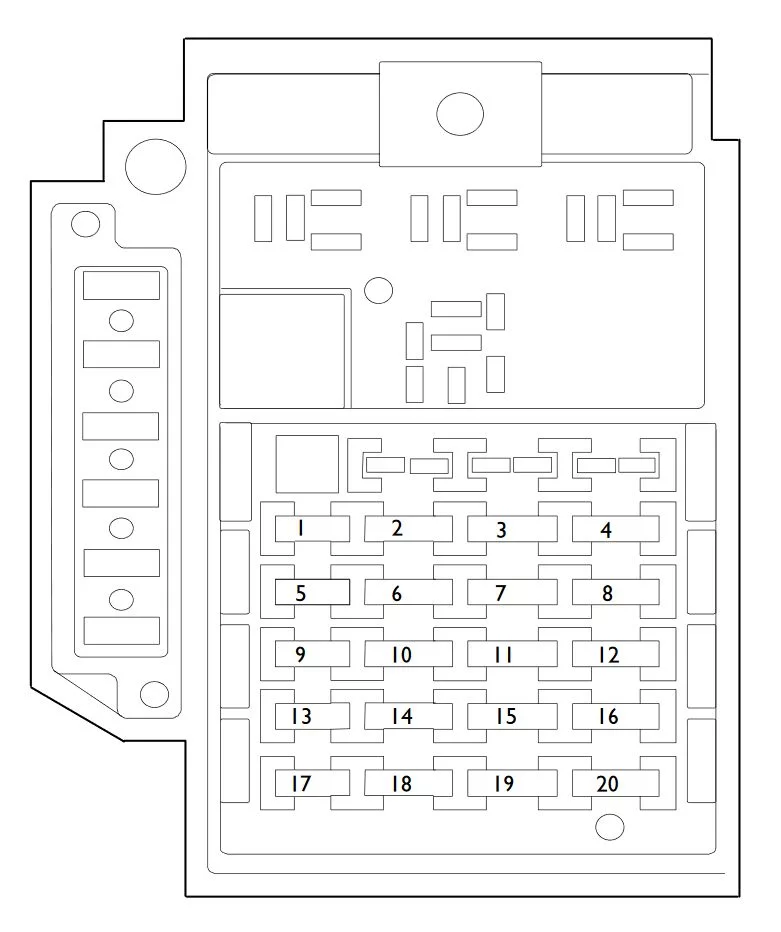

Fuse box
| Number | Amps [A] | Description |
| 1 | 5 | Body Control (15) / MICO tachograph / instrument cluster |
| 2 | 5 | Cabin disconnected / Immobilizer / Diesel fuel filter water sensor / Headlight trim corrector / Night lights |
| 3 | 5 | MICO Tachograph / Body Control (Left low beam – Right high beam) |
| 4 | 5 | BodyBuilder Module |
| 5 | 5 | EDC7 |
| 6 | 5 | Trailer start (+15) / Chassis build start (+15) |
| 7 | 10 | Central locking / Parking heater / Refrigerator / Radio |
| 8 | 10 | Body Control (right low beam – left high beam) |
| 9 | 10 | Cabin body builders (+15) |
| 10 | 10 | Body Control (left side lights and brake lights) |
| 11 | 10 | Body Control (turn signals – hazard warning lights) |
| 12 | 10 | Horn |
| 13 | 10 | Window lifters / Heated windscreen |
| 14 | 20 | Electric heater/air conditioner windshield defroster |
| 15 | 20 | Body Control (windscreen wiper – windscreen washer) |
| 16 | 20 | Brake air dryer / Adjustable heated rear view mirrors / Control unit |
| 17 | 10 | External Light Body Manufacturers (+58) |
| 18 | 5 | Instrument cluster |
| 19 | 10 | EDC |
| 20 | 10 | Body Control (right side lights and rear fog light) |
Iveco EuroCargo 6-26T fuses and relays. Iveco EuroCargo 6-26T fuses and relays fuse diagram.
