We consider fuses and relays in the Volkswagen Golf 2 (Jetta), produced in 1983, 1984, 1985, 1986, 1986, 1987, 1988, 1989, 1990, 1991, 1992.

Location of fuses and relays Volkswagen Golf 2

The mounting block is located in the car’s interior, at the bottom of the control panel on the driver’s side. The block is covered with a protective cover, on the back of which there is a diagram and designation.

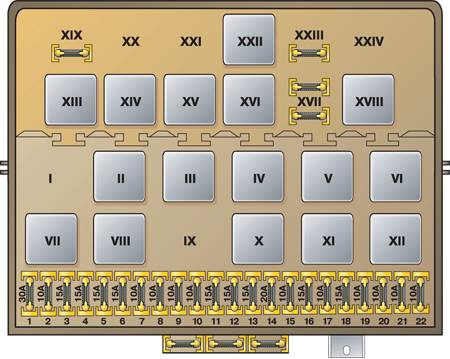

Fuse and relay box diagram Volkswagen Golf 2 (cars up to 08.1987)

Description

130A Electric Fan
210A Brake light
310A fuse for cigarette lighter Golf 2 , radio, clock, interior light
415A Emergency signaling
515A Fuel pump
615A Fog light
710A Rear left side light
810A Rear right side light
910A Right headlight high beam, headlight high beam indicator lamp
1010A Left headlight high beam
1115A Windscreen wiper, windshield washer, headlight washer
1215A Tailgate Windscreen Wiper and Washer, Coolant Level Indicator Lamp, Electric Outside Rearview Mirror
1320A Rear window heating, tailgate heating, outside rearview mirror heating
1420A Heater Fan
1510A Reversing light, gear selection circuit illumination lamp (automatic transmission)
1615A High tone buzzer
1710A Automatic carburetor starter, electric intake manifold heater, fuel shut-off valve at forced idle
1810A High and low tone horn, front seat heating, parking brake lamp
1910A Direction indicator
2010A License plate light, glove compartment light, fog lights
2110A Low beam left headlight
2210A Low beam right headlight

Relay

IFree
IIIntake manifold heater relay
Fuel pump relay
Glow Plug Relay
IIISeat Belt Signaling Relay
IVGear Selection Signal Relay
VAir conditioner relay
VISound signal relay
VIIFog light relay
VIIIContact relief relay x
IXFree
XWasher relay
XIRear door windshield wiper and washer relay
XIIAlarm relay
XIIISeat Belt Signaling Relay
XIVRelay for seat belt alarm, heated rear window, pressure warning lamp
XVHeadlight washer relay
XVIIdle Speed ​​Increase Relay
XVIIRear fog light, air conditioner fuse
XVIIIFan relay
Coolant Low Temperature Alarm Relay
XIXWindow lifter fuse
XXDriver’s Seat Heating Relay
XXIPassenger Seat Heating Relay
XXIIFuel cut-off relay at forced idle
XXIIIFree
XXIVFree

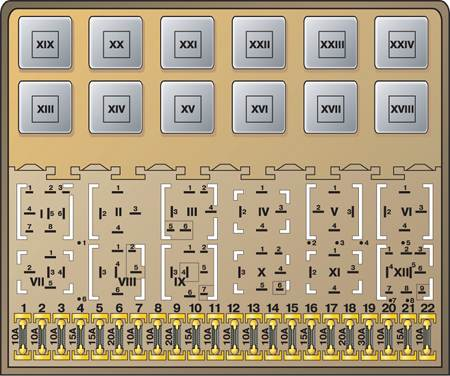

Fuse and relay box diagram Volkswagen Golf 2 (cars from 08.1987)

110A Low beam left headlight
210A Low beam right headlight
310A Instrument Light, License Plate Light
415A Glove compartment light
515A Windscreen wiper and washer
620A Heater Fan
710A Right rear light, parking light bulb
820A Rear window heating
915A Fog lights
1010A Left headlight high beam
1110A Right headlight high beam
1210A Sound signal
1310A Reversing light, washer heater
1410A Fuel cut-off valve (diesel engine)
1515A Instrument panel
1610A Emergency alarm
17Free
1830A Electric Fan, Air Conditioner Relay
1910A Brake light
2015A Interior light
2110A Radio and cigarette lighter Golf 2

Relay

IAir conditioner relay
IIRear Window Wiper Relay
IIIIgnition system relay
IVContact relief relay x
VCoolant Low Temperature Alarm Relay
VIAlarm relay
VIIHeadlight washer relay
VIIIWindscreen wiper mode switching relay
IXSeat Belt Signaling Relay
XFog light relay
XIHigh and low tone horn relay
XIIGlow Plug Relay
XIIIElectric Fan Relay
XIVIntake manifold heater relay
XVABS pump relay
XVIABS relay
XVIIFree
XVIIIFree
XIXAutomatic transmission relay
XXGlow Plug Control Relay
XXIWindow lifter relay
XXIIABS fuse
XXIIIAir conditioner fuse
XXIVWindow lifter fuse

General purpose relay

  • 4 or 29 — seat belt alarm relay
  • 13 — air conditioning compressor
  • 15 — PTF
  • 18 – unloading of the X bus
  • 19 or 99 — windshield wipers (99 — with adjustable pause)
  • 21 – Hazard warning lights direction indicators
  • 22 – Trailer direction indicators
  • 30, 32 — Injection and ignition system relay
  • 31 — Additional air valve relay
  • 32 — ECU power supply
  • 33 — headlight washer
  • 36 — buzzer (signalizer of side lights off)
  • 42 – Engine overheating relay (also 43)
  • 43 — coolant level drop indicator (up to 1991)
  • 46 — pre-heating time relay
  • 53 – two-tone signal. (single-tone – jumper)
  • 54 – power failure on forced XX
  • 55 – increase fuel supply to forced idle
  • 61 — heating of the intake manifold
  • 67 or 80 – fuel pump
  • 72 — rear wiper
  • 83 — Freewheel clutch lock relay (only on Syncro model)
  • 90 — fuel purge pump relay
  • 167 — Fuel pump or pre-heater relay (diesel)
    The following can be installed in any order:
  • 220 — after-run relay
  • 13 — electromagnetic clutch of the air intake flap drive
  • 79 — ABS ECU
  • 78 — ABS pump
  • 59 – heated seats
