Passenger compartment

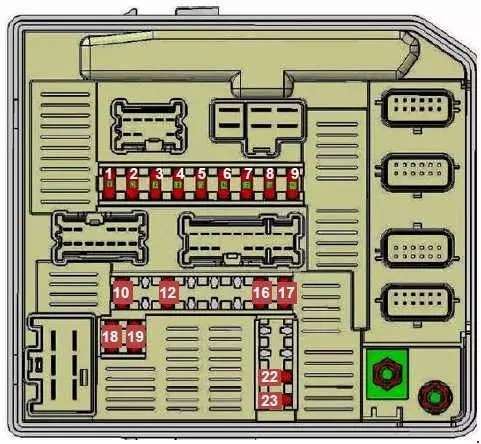

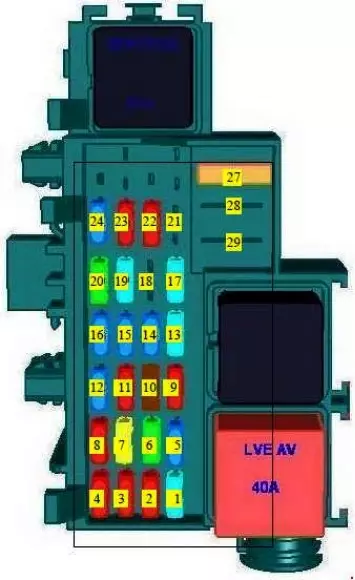

Main box

Description

1	10	Information and entertainment system;Seat heating (service relay 1. engine run relay)
2	15	Power socket 1
3	10	Lighter
4	10	Power socket 2
5	5	Dashboard
6	30	Central locking (UCE Habitacle (CPE, SUPCPE), BFR)
7	25	Turn signals;Rear fog lights;Body control module (ECU Habitacle + Batsecurite).
8	5	Diagnostic connector
9	–	–
10	5	ABS;Electronic stabilization program.
11	10	Interior lights;Brake lights.
12	5	Body Control Module
13	15	Brake lights
14	5	Body Control Module;Electric windows;Air conditioning.
15	20	Heated rear window on the left
16	20	Heated right rear window
17	15	Windscreen washers (steering wheel controls)
18	5	Electronic immobilizer
19	15	Heated seats (BFRH2, ADPCNC, adaptation compendium)
20	–	–
21	10	Corner lights
22	10	Information and entertainment system;Seat heating;Vehicle screen;Audio Links;Attention.
23	five	Hands-free connection
24	10	Tachograph
25	–	– (diode position)
26	–	– (diode position)
27	40	Air conditioning fan
28	10	Additional adaptations (BFRH2, ACC relay right, slave relay 1)
29	40	Electric windows;Body control module.

Additional boxes

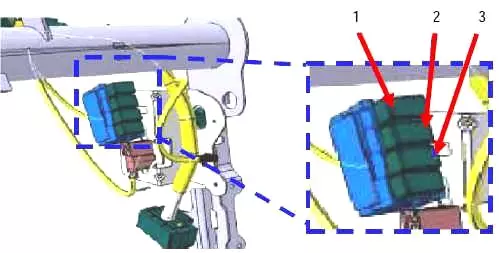

They are located on the right side (left and right steering wheel) under the dashboard and are connected to the right flange of the dashboard bar.

Box 1

Description

1. 20A – Power supply for 12 V quiescent current distribution
2. 20A – Information on engine operation
3. 20A – Heated seat

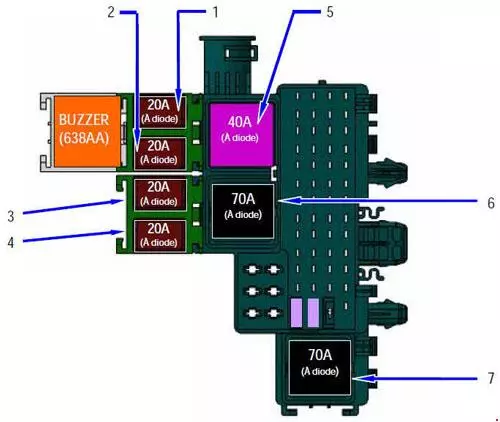

Box 2

Description

1. 20A Sliding door
2. 20A Trunk lid
3. 20А Heated bus seat
4. 20А ESP Bus
5. 40А Information about air conditioning
6. 70А BCM + battery power
7. 70А BCM + charge discharge power supply accessory

Engine compartment

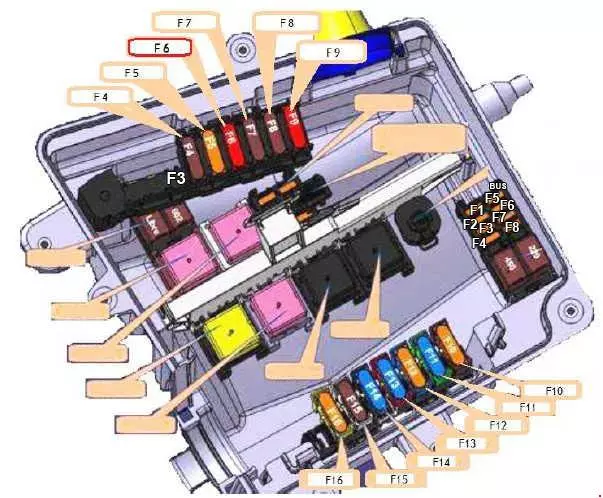

Type 1

Description

F1	–	–
F2	–	–
F3	50	BUS X62
F4	40	ABS CONTROL UNIT
F5	50	Additional heating relay 1
F6	50	Special body conversion, X62 BUS
F7	70	Additional heating relay 2
F8	70	Rear lights;Passenger compartment fuse box;Diesel heater resistance.
F9	70	Cabin fuse and relay box
F10	50	Motorized fan relay 3;Engine fan relay (rating depends on vehicle specifications).
	40
F11	40	Motor fan speed relay 1;Engine fan speed relay 2 (value depends on vehicle specifications).
	50
	60
F12	40	Starting the engine
F13	60	Heating interface unit
F14	60	Heating interface unit
F15	70	Glow Plug Relay Group for Diesel Engines
F 16	40	Transmission Pump Assembly Relay
	50	Fuse box 2
BUS FUSE BOX (260BA)
F1	5	Light control relay (GRUAU) Front and rear lighting
F2	5	Lighting control relay power supply (GRUAU) Individual lighting (X81)
F3	50	Power supply for relay 1155 (70A + auxiliary relay)
F4	25	Power supply for 1155 relay (70A + BCM battery relay)
F5	10	Power supply for multimedia display from GRUAU kit
F6	5	Power supply for electronic threshold control unit
F7	–	–
F8	–	–

Type 2

Description

F1	7.5А Right side light
F2	7.5А Left side lighting
F3	10, low beam lights on the right
F4	10, low beam lights on the left
F5	20А Fog lights
F6	10, left traffic light;
F7	10A Traffic light on the right
F8	25 (ABS power supply)
F9	30А Windshield wiper
F10	10А PIS of the airbag (main ignition source)
F11	–
F12	20A Power supply to transmission control unit (front wheel drive)
F13	–
F14	–
F15	–
F 16	5А PIS Reducer (Primary Ignition Source)
F17	7.5А Passenger compartment PIS (main ignition source)
F18	5A Diesel injection/heating control unit relay
F19	10A Rear running lights PIS (main ignition source).
F20	–
F21	–
F22	10А Air conditioning (compressor) I
F23	5A Defrost (relay control)
