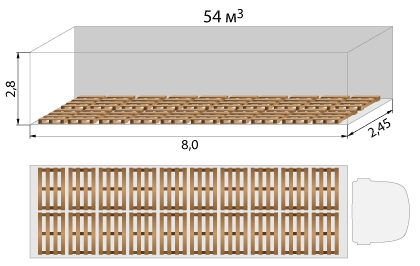

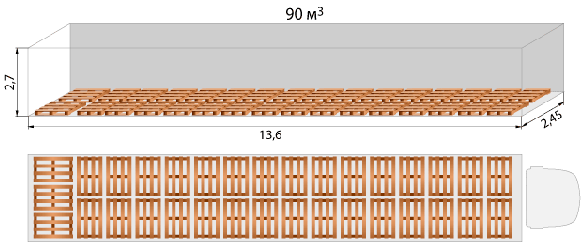

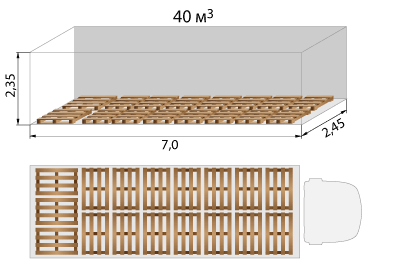

Layout of Euro pallets in lorries
Layout of Euro pallets in containers
“Europallet” is a special pallet on which a certain load is securely fastened. “Europallets” are designed for the fastest possible transportation and convenient storage of products. They provide reliable protection of goods from deformation and other damage that may occur during their delivery. The design of pallets is constantly being improved, which is due to the requirements of the time. Such goods as: building materials, car chemicals, motor oil, fasteners, household chemicals, packaging materials, etc. are transported in “Europallets”.
When using Euro pallets, we recommend paying attention to the following:
The size of the Euro pallet is 800mm x 1,200mm.

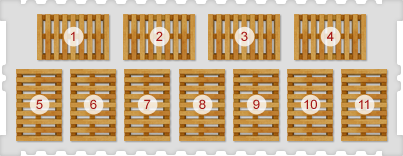

A 20-foot container can hold 11 Euro pallets on the floor (see figure below).

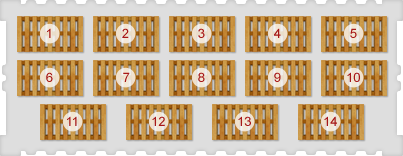

A 20-foot Pallet Wide container can hold 14 Euro pallets on the floor (see the picture below)

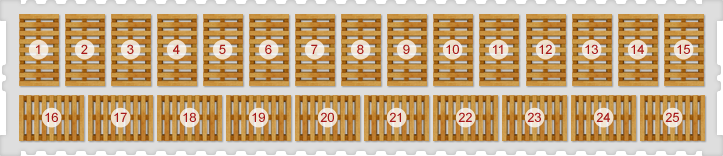

A 40-foot container can hold 23-24 Euro pallets on the floor (see figure below).
A 40-foot HIGH CUBE container can hold 29 “Euro pallets” on the floor (see figure below).

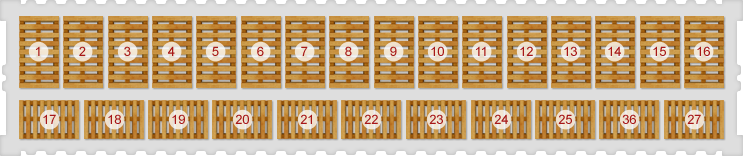

A 45-foot container can hold 27″ Euro pallets on the floor (see figure below).

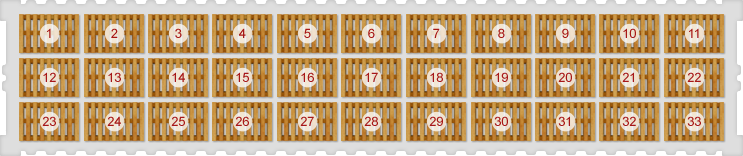

A 45-foot HIGH CUBE container can be loaded with 33 “Euro pallets” on the floor (see figure below).
Wooden pallets must be strong enough to support the weight of three tiers.
Cardboard boxes must not protrude beyond the edges of the pallet.
