Fuse and Relay Box Diagrams – GMC Canyon
Applies to vehicles manufactured in: 2015, 2016, 2017, 2018.

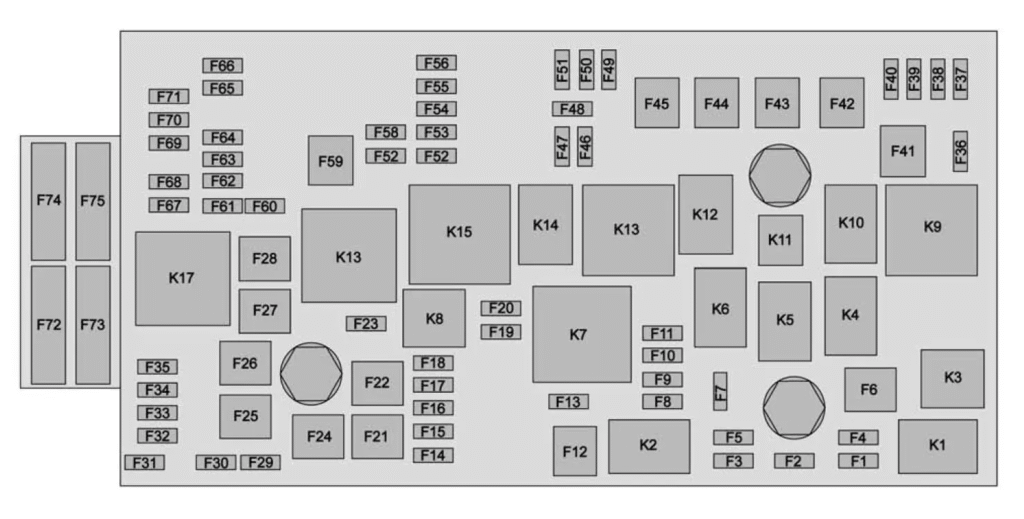

Engine compartment
The engine compartment fuse box is located on the driver’s side in the engine compartment.
| Number | Description |
|---|---|
| Mini fuses (2 pin) | |
| F01 | Traction control module power supply |
| F02 | Engine Control Module Power Supply |
| F03 | Air conditioning compressor clutch |
| F04 | Unused |
| F05 | Fuel module ignition |
| F07 | Cargo area lamp |
| F08 | Fuel injectors – equal |
| F09 | Fuel Injectors – Odd |
| F10 | Engine control module |
| F11 | Miscellaneous 1, Ignition |
| F13 | Traction control module |
| F14 | Unused |
| F15 | Unused |
| F16 | Unused |
| F17 | Front axle actuator |
| F18 | Unused |
| F19 | Shutters |
| F20 | Unused |
| F23 | Unused |
| F29 | Unused |
| F30 | Heated seat power supply 1 |
| F31 | Unused |
| F32 | Heated seat power 2 |
| F33 | Body Control Module 3 |
| F34 | Fuel system control module |
| F35 | Unused |
| F36 | Center high mount stop lamp |
| F37 | Right high beam |
| F38 | Left high beam |
| F39 | Unused |
| F40 | Unused |
| F46 | Unused |
| F47 | Miscellaneous 2, Ignition |
| F48 | Fog lights (if equipped) |
| F49 | Unused |
| F50 | Parle trailer lights |
| F51 | Horn |
| F52 | Unused |
| F53 | Unused |
| F54 | Unused |
| F55 | Unused |
| F56 | Washer pump |
| F57 | Unused |
| F58 | Unused |
| F60 | Mirror defogger |
| F61 | Unused |
| F62 | Canister vent solenoid valve |
| F63 | Unused |
| F64 | Trailer reversing lamp |
| F65 | Left trailer brake/turn lights |
| F66 | Right Trailer Brake/Turn Signal Lights |
| F67 | Electric power steering |
| F68 | Unused |
| F69 | Battery operated voltage control |
| F70 | Unused |
| F71 | Unused |
| J-type fuses (low profile) | |
| F06 | Wipers |
| F12 | Starter |
| F21 | Front blower |
| F22 | Anti-lock brake valves |
| F24 | Trailer |
| F25 | Electronic control of the distribution box |
| F26 | Anti-lock braking system pump |
| F27 | Trailer Brake Control Module |
| F28 | Rear window defogger |
| F41 | Unused |
| F42 | Unused |
| F43 | Cooling fan |
| F44 | Unused |
| F45 | Brake vacuum pump |
| F59 | Unused |
| Midi fuses | |
| F72 | Unused |
| F73 | Unused |
| F74 | Generator |
| F75 | Unused |
| Micro-relays | |
| K01 | Air conditioning compressor clutch |
| K02 | Starter |
| K03 | Unused |
| K04 | Wiper speed |
| K05 | Wiper control |
| K06 | Cargo area lamp |
| K08 | Unused |
| K09 | Unused |
| K10 | Unused |
| K11 | Center high mount stop lamp |
| K12 | Unused |
| K13 | Vacuum pump |
| K14 | Parking lamps |
| Mini relays | |
| K07 | Drive system |
| K15 | Starter |
| K17 | Rear window defogger |
| Solid state relay | |
| K16 | Unused |

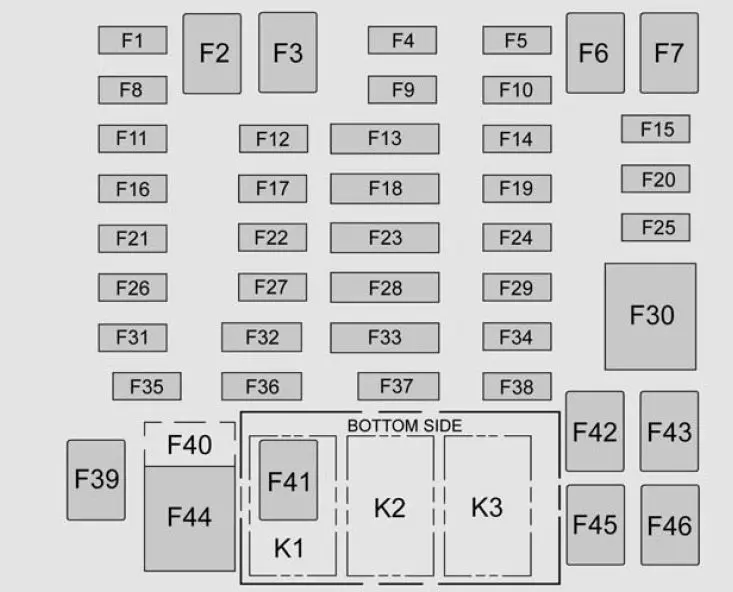

Passenger compartment
The instrument panel fuse box is located behind the passenger side hood trim panel.
| Number | Description |
|---|---|
| Micro fuse (2 pins) | |
| F01 | Body Control Module 1 |
| F04 | Steering wheel controls |
| F05 | Body Control Module 2 |
| F08 | Side mirror module |
| F09 | Instrument cluster |
| F10 | Unused |
| F11 | Body Control Module 8 |
| F12 | Unused |
| F14 | Radio/HMI |
| F15 | Body Control Module 6 |
| F16 | Unused |
| F17 | Body Control Module 4 |
| F19 | Unused |
| F20 | Amplifier (if equipped) |
| F21 | Unused |
| F22 | Unused |
| F24 | Heating, ventilation and air conditioning ignition |
| F25 | Body Control Module 7 |
| F26 | Unused |
| F27 | Unused |
| F29 | Miscellaneous, Ignition |
| F31 | Front camera |
| F32 | Steering wheel control illumination |
| F34 | Unused |
| F35 | Park, Reverse, Neutral, Drive, Low |
| F36 | Discreet ignition sensor |
| F38 | Unused |
| Micro fuse (3 pins) | |
| F13 | OnStar/heating, ventilation and air conditioning |
| F18 | Airbag |
| F23 | Data Link Connector/USDB |
| F28 | Instrument Panel/Detection and Diagnostic Module Ignition |
| F33 | Unused |
| Micro J-Case Fuses | |
| F02 | Unused |
| F03 | Unused |
| F06 | Unused |
| F07 | Unused |
| F39 | Auxiliary Power Socket 2 |
| F41 | Auxiliary Power Socket 1/Cigarette Lighter |
| F42 | Left electric window |
| F43 | Driver’s seat |
| F45 | Right electric window |
| F46 | Passenger seat |
| J-type fuses | |
| F30 | Unused |
| F40 | Auxiliary power socket |
| F44 | Auxiliary power socket |
| Small fuse (2 pins) | |
| F37 | Unused |
| Micro relay | |
| K1 | Accessory/Accessory power stopped |
| K2 | Starter |
