The first generation BMW X5 E53 went into production in 1999. This car was produced in 2000, 2001, 2002, 2003, 2004, 2005 and 2006. We will present the diagrams of the relay blocks and fuses of the BMW E53 with a description, as well as the translation of errors from the instrument panel into Russian and a complete operating manual.
The purpose of fuses and relays may differ from the one shown. Check the current purpose of the elements in the blocks with your diagrams in the specifications (brochures).
Main fuse box in the passenger compartment bmw e53

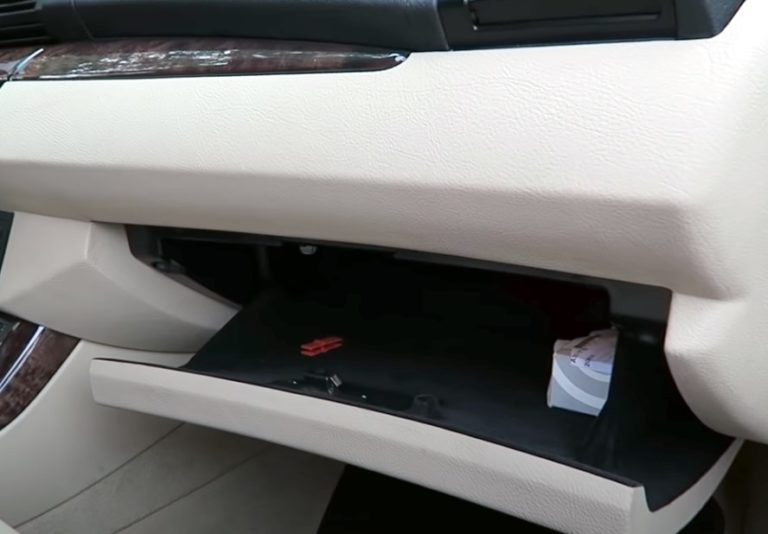

In the passenger compartment, the main fuse box and relay are located in the glove compartment behind a protective cover. To access it, you need to open the glove compartment.

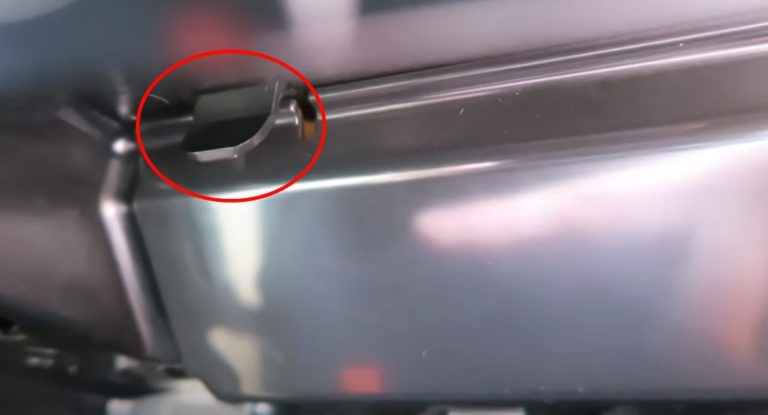

Next, press the 2 clips securing the rear plastic cover (left and right).

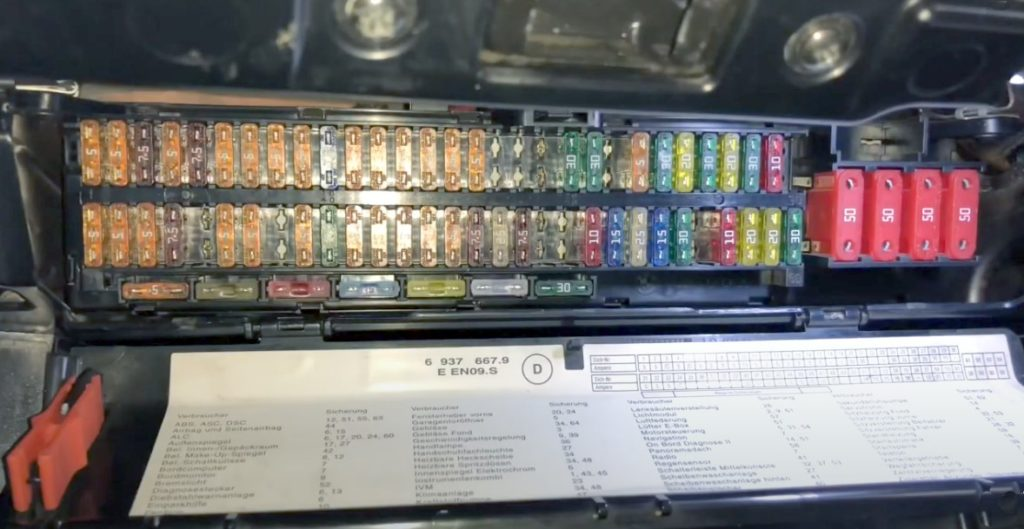

A block like this will appear, where all the fuses are located in 2 rows. The third horizontal row is spare elements.
The cover usually contains fuse tweezers and a brochure with the designation.

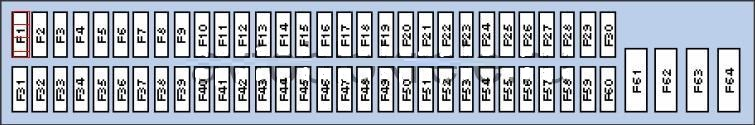

General layout
Table with description
| 1 | 5A Data bus connector, instrument cluster |
| 2 | 5A Lighting Control Unit |
| 3 | 5A Heating/Air Conditioning System(02/01) |
| 4 | 5A Ignition Coil Relay |
| 5 | 7.5A Generator, Engine Oil Level Sensor, Cooling Fan Motor Fuse/Relay Box |
| 6 | 5A Interior rearview mirror, parking system control unit (02/04), tire pressure monitoring system control unit |
| 7 | 5A Ignition Coil Relay |
| 8 | 5A Instrument cluster illumination |
| 9 | 5A SRS system, brake light switch (brake pedal position sensor), lighting control unit |
| 10 | 15A Sound signal |
| 11 | 5A Immobilizer |
| 12 | 5A Instrument cluster illumination, steering wheel position sensor |
| 13 | 5A Anti-theft system, interior rearview mirror |
| 14 | 5A Multifunctional Control Unit 1 |
| 15 | 5A Tire pressure monitoring system control unit (02/04) |
| 16 | 5A Ignition switch |
| 17 | 5A Interior Lighting Control Unit |
| 18 | — |
| 19 | — |
| 20 | 30A Driver’s door electrical equipment control unit |
| 21 | 30A Electric Seat Drive |
| 22 | — |
| 23 | — |
| 24 | 30A Passenger door electrical equipment control unit |
| 25 | 25A Charging socket, cigarette lighter |
| 26 | 30A Main Ignition Circuit Relay |
| 27 | 20A Multifunctional Control Unit 1 |
| 28 | 30A Headlight washers |
| 29 | 10A Airbag |
| 30 | — |
| 31 | 5A Engine Control |
| 32 | 5A Main Circuit Relay, Multi-Function Control Unit 2 |
| 33 | 5A Cigarette Lighter Fuse |
| 34 | 7.5A Rear window defroster, heater/air conditioner |
| 35 | — |
| 36 | 5A Charging Socket |
| 37 | 5A Multifunctional Control Unit 2 |
| 38 | — |
| 39 | 5A Clutch Pedal Position Switch, Immobilizer |
| 40 | 30A Windshield Wiper |
| 41 | 5A Rear window wiper/washer, multifunction control unit 1 |
| 42 | 5A Interior Lighting Lamps |
| 43 | 5A Instrument cluster |
| 44 | 5A SRS system, electric seats |
| 45 | 5A Instrument cluster |
| 46 | 7.5A Transfer Case Control Unit |
| 47 | 25A Fuel Pump Relay |
| 48 | 7.5A Heater/Air Conditioner |
| 49 | — |
| 50 | — |
| 51 | 10A Anti-lock Braking System (ABS), Engine Management System |
| 52 | 15A Diagnostic Link Connector (DLC) (^>09/00) |
| 53 | 25A Multifunctional Control Unit 2 |
| 54 | 15A Electronic control unit of the gearbox |
| 55 | 30A Anti-lock Braking System (ABS) |
| 56 | — |
| 57 | 15A Control unit under the suspension |
| 58 | 20A Luke |
| 59 | 20A Additional heater |
| 60 | 30A Multifunctional Control Unit 1 |
| 61 | 50A Cooling Fan Motor |
| 62 | 50A Air Injection Pump Relay |
| 63 | 50A Anti-lock Braking System (ABS) |
| 64 | 50A Heater/Air Conditioner |
There are 2 fuses 33 and 25 responsible for the cigarette lighter. Be careful.

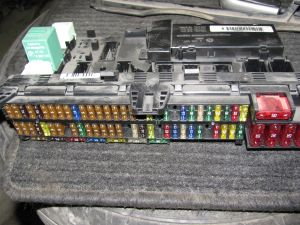

Full block photo

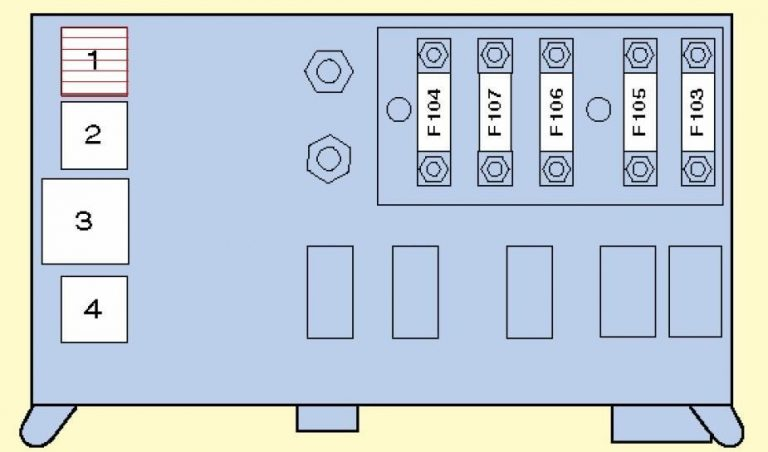

As you can see from the photo, there are relays and additional fuses on top of this block. Here is the general diagram.
| 1 | Fuel Pump Relay – Diesel |
| 2 | — |
| 3 | Interior Lighting Control Unit |
| 4 | Horn relay |
| F103 | — |
| F104 | (10A) Glow plugs |
| F105 | (80A) Immobilizer, ignition switch – 4.4/4.6(02/02) |
| F106 | (50A) Ignition switch, lighting control unit |
| F107 | (50A) Lighting control unit |
Relay and fuse box in the trunk of a BMW X5 E53

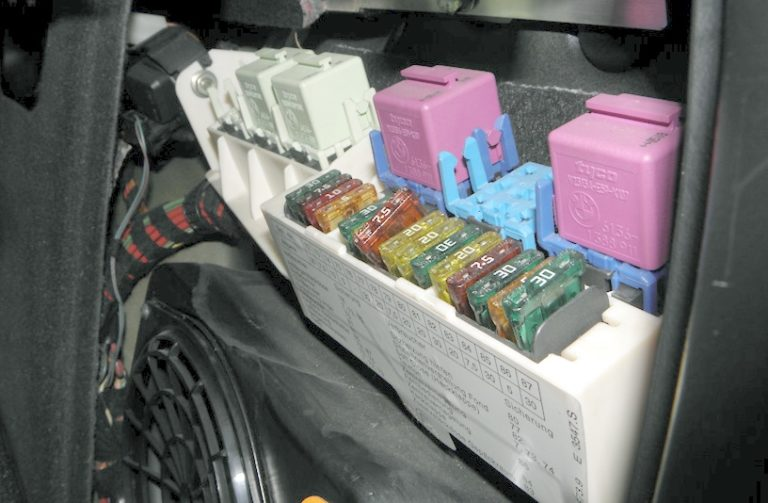

To access them, you need to grab the door handle on the right side panel from above and pull it down. There will also be a specification for the BMW X5 E53 indicating the rated current and protected consumers.

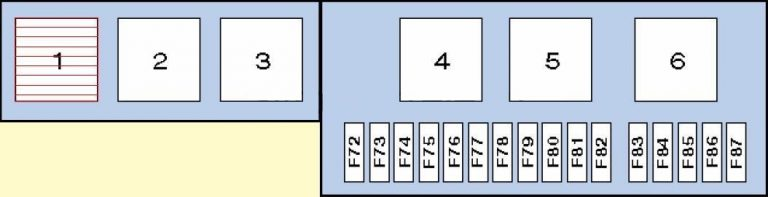

Designation
| 1 | Rear Seat Heater Relay |
| 2 | Rear Window Defogger Relay |
| 3 | Audio system relay |
| 4 | Trunk Lid/Tailgate Opener Relay – Lower |
| 5 | Seat Electric Relay (Rear) |
| 6 | Trunk/Tailgate Opener Relay – Upper |
| F72 | 30A Audio system, navigation system |
| F73 | 7.5A Ignition Coil Relay |
| F74 | 10A Telephone |
| F75 | 5A Audio system, navigation system |
| F76 | — |
| F77 | 30A Electric rear seats |
| F78 | 20A Trailer Electrical Socket |
| F79 | 7.5A Suspension Control Unit |
| F80 | 20A Ignition Coil Relay |
| F81 | 20A Rear Window Wiper/Washer |
| F82 | — |
| F83 | 20A Charging Socket – Rear |
| F84 | 7.5A Trunk/Tailgate Lock |
| F85 | 30A Rear Window Defogger |
| F86 | 5A Additional heater |
| F87 | 30A Active suspension system compressor |
It is also possible to have a single relay arrangement, for example, a compressor pump relay and an air suspension pump compressor.
Block under the hood

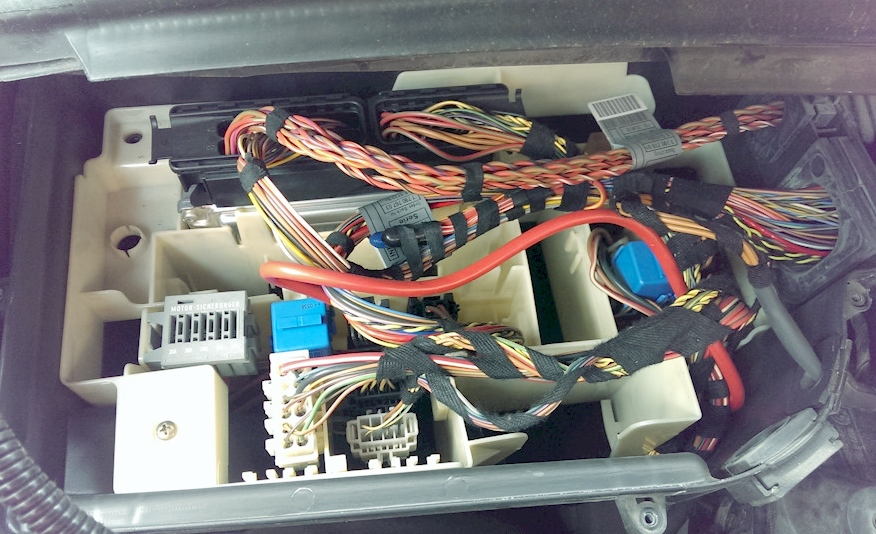

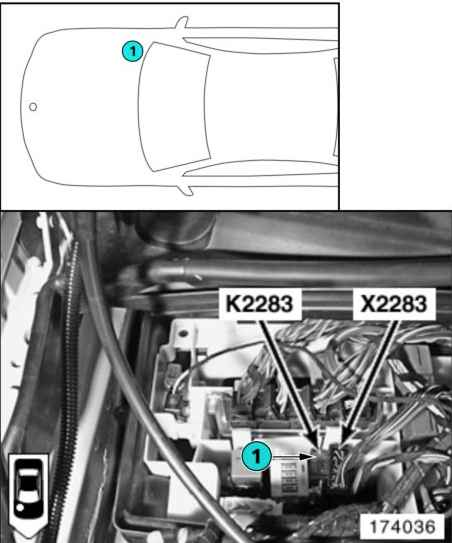

It is located under the hood, on the right side, in the mounting block, behind the protective cover.
Individual relay elements are located in the mounting block, under the hood (horn relay, glow plugs, fuel pump relay, headlight washer relay, etc.). Depending on the configuration, fuses may be located there.

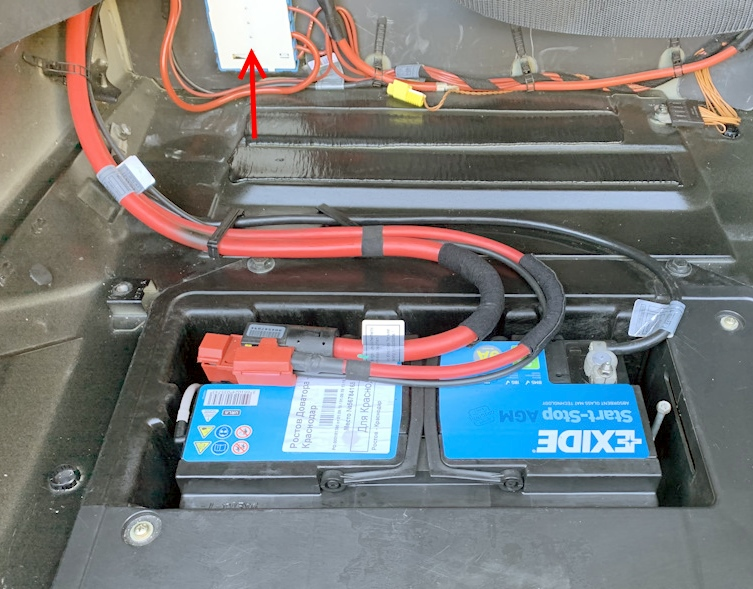

The block is in the trunk near the battery

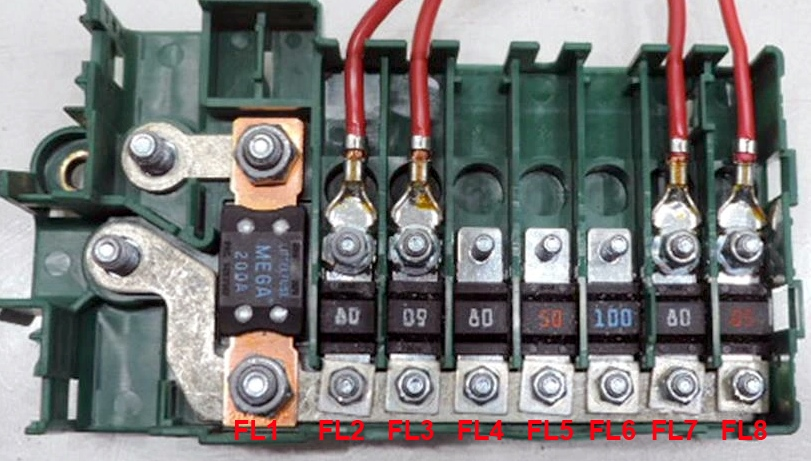

Another high-power fuse block may be attached to the positive terminal of the battery.
| FL1 | 200A Fuse Box #2 in Engine Compartment, Fuses 10-28, 40, 46-50, 52-64, 104-107, Polarity Inversion Relay |
| FL2 | 80A Fuse Box #1 in the Luggage Compartment, Fuses 72 – 75 |
| FL3 | 80A Fuse Box No. 1 in the luggage compartment, fuses 77 – 81 |
| FL4 | 50A Trailer Control Unit or 40A Transfer Case Control Unit |
| FL5 | 50A Compressor, Air Suspension |
| FL6 | 100A DDE Relay |
| FL7 | 80A Fuse Box #1 in the Luggage Compartment, Fuses 83-87 |
| FL8 | 50A Trailer Control Unit |
