In the following entry we present diagrams and locations of fuse boxes and relays for Fiat Panda III from the years: 2011, 2012, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023. Fiat Panda III is the third generation of the city car produced by the Italian brand Fiat.

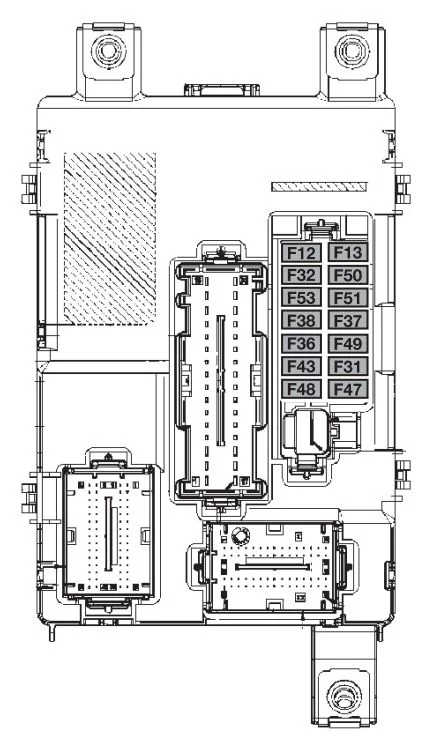

Fuse box on dashboard
The control unit is located near the left side, next to the steering column.
| Description | Number | Amps [A] |
| +15 (*) headlight alignment corrector | F13 | 5 |
| +15 (*) Ignition control with engine starting lock. | F31 | 5 |
| +30 (**) | F36 | 10 |
| +15 (*) brake pedal switch (NA) | F37 | 7.5 |
| Central door locking | F38 | 20 |
| Bi-directional windshield washer pump. | F43 | 20 |
| Electric front window (driver’s side). | F47 | 20 |
| Electric front window (passenger side). | F48 | 20 |
| +15 (*) | F49 | 7.5 |
| +15 (*) | F50 | 7.5 |
| +15 (*) | F51 | 5 |
| +30 (**) | F53 | 7.5 |
(*) + 15 = ignition activated positive terminal
(**) + 30 = direct positive battery terminal (no ignition)

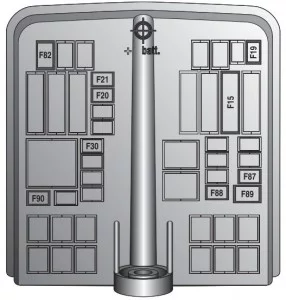

Fuse box in engine compartment
Located next to the battery.
| Description | Number | Amps [A] |
| On-board computer node | F01 | 60 |
| Passenger compartment fan | F08 | 40 |
| Fog lights | F09 | 15 |
| Horn | F10 | 15 |
| Traffic lights | F14 | 15 |
| Heated windscreen | F15 | 70 |
| Air conditioning compressor | F19 | 7.5 |
| Front power socket(with or without cigarette lighter). | F20 | 15 |
| Fuel pump | F21 | 15 |
| Scavenge | F30 | 5 |
| Sunroof motor | F82 | 20 |
| +15 (*) reversing lights | F87 | 5 |
| Heated mirrors | F88 | 7.5 |
| Heated rear window | F89 | 30 |
| Battery charge status sensor | F90 | 5 |
(*) + 15 = positive terminal with ignition
Fiat Panda 3 (2011-2023) fuses and relays. Fiat Panda 3 (2011-2023) fuse diagram.
