In the following post we present the diagrams and locations of the fuse and relay boxes for the Fiat Grande Punto of the years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 The Fiat Grande Punto, produced between 2010 and 2018, is the next generation of the Fiat compact car.
Passenger compartment

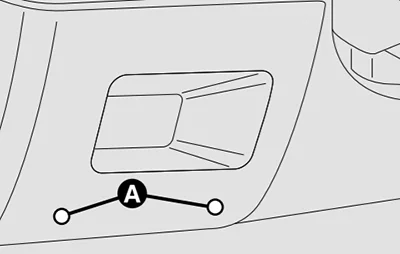

To access the dashboard control unit, loosen screws A and remove the cover.
| Number | Amps [A] | Description |
|---|---|---|
| 1 | 7.5A | right dipped beam |
| 2 | 5A | Front dome light, rear dome light (VAN version) |
| 3 | 5A | Dashboard |
| 4 | 20A | Door Lock/Unlock Motors, Dead Lock Activation Motors, Gate Unlock Motor |
| 5 | 10A | Power supply + battery for EOBD diagnostic socket, alarm sirens, car radio, Blue&Me control unit |
| 6 | 20A | Electric front/rear window washer pump |
| 7 | 20A | Passenger door window motor |
| 8 | 7.5A/10A | Left dipped beam, corrector, headlight alignment corrector |
| 10 | 7.5A | INT power supply for brake pedal switch (NC contact), clutch pedal switch, interior heating, Blue&Me control unit, car radio mounting system, voltage stabilizer control unit, rear bumper reversing light, diesel water filter sensor, glow plug heater, flow meter, brake assist sensor, relay coils in the fuse assembly in the engine compartment |
| 11 | 5A | Power supply for instrument panel INT, brake pedal switch (NO contact), third brake light |
| 12 | 5A | INT power supply for control panel lighting, electric movement of exterior mirrors, electric roof controller, my-port infotelematics port |
| 13 | 5A | INT/A power supply for relay coils in the engine fuse control unit and relay coils in the on-board computer control unit |
| 14 | 20A | Driver side front door window motor |
Engine compartment

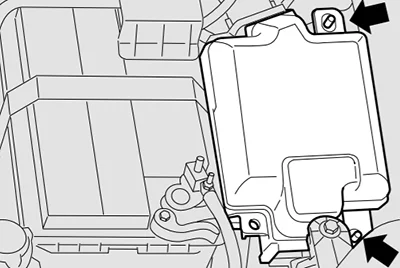

The control unit is located next to the battery: to access the fuses, remove the appropriate protective cover, working in the locations indicated by the arrows

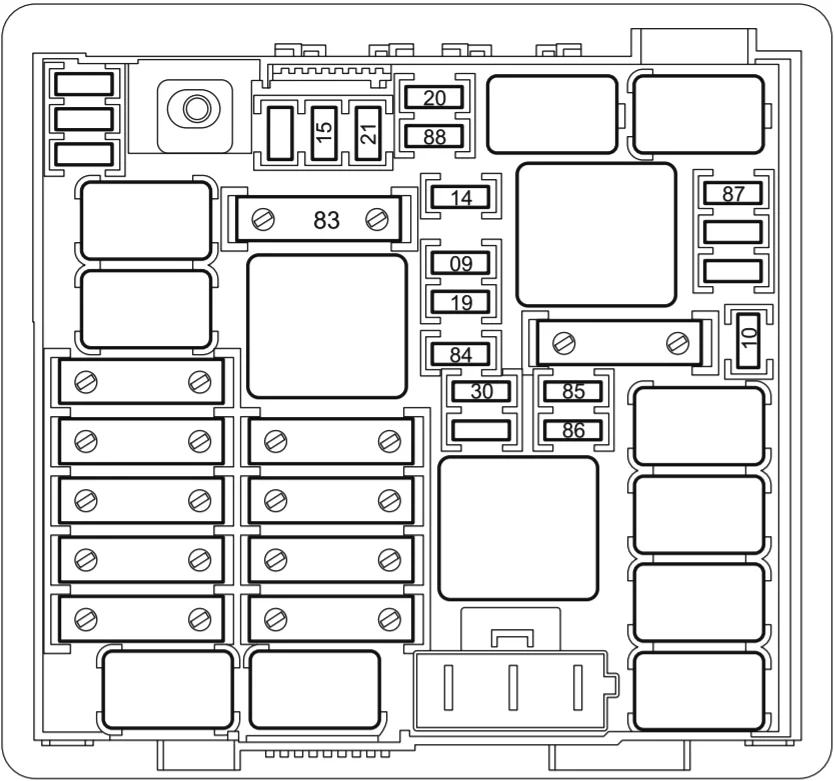

| Number | Amps [A] | Description |
|---|---|---|
| F09 | 20A | Hi-Fi audio system with car radio, control unit and subwoofer |
| F10 | 10A | Buzzer monotonous |
| F14 | 15A | Left high beam, right high beam |
| F15 | 30A | auxiliary heater |
| F19 | 7.5A | air conditioning compressor |
| F20 | 30A | Heated rear window |
| F21 | 15A | Tank fuel pump |
| F30 | 15A | Left fog light, right fog light |
| F84 | 7.5A | Methane system power management solenoid valves |
| F85 | – | Power socket (preparation for installation) |
| F86 | 15A | Socket in passenger compartment, cigarette lighter |
| F87 | 5A | IBS battery charge status sensor |
| F88 | 7.5A | Driver’s side exterior mirror defroster, Passenger’s side exterior mirror defroster |
Trunk

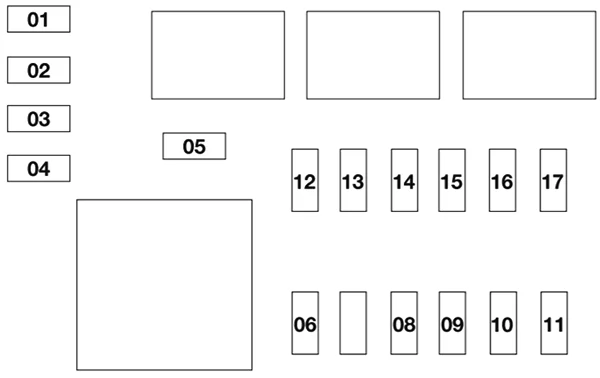

To access the control unit (located on the left side of the trunk), open the appropriate inspection cover.
| Number | Amps [A] | Description |
|---|---|---|
| 01 | – | At your disposal |
| 02 | – | At your disposal |
| 03 | – | At your disposal |
| 04 | 10A | Electric lumbar adjustment for driver’s seat |
| 05 | 15A | Power socket in trunk |
| 06 | – | At your disposal |
| 07 | – | Trailer hitch system (housing prepared for service fuse installation) |
| 08 | 10A | Driver’s seat heating hot water bottle |
| 09 | 10A | Passenger seat heating hot water bottle |
| 10 | 20A | Window system (engine, control unit) on right side door |
| 11 | 20A | Window system (engine, control unit) on left side door |
| 13 | 5A | iTPMS Tire Pressure Detection Control Unit |
| 14 | 7.5A | Alarm system management center |
| 15 | – | At your disposal |
| 16 | – | At your disposal |
| 17 | 20A | Electric opening system for a practical roof |
Fiat Grande Punto (2010-2018) fuses and relays. Fiat Grande Punto (2010-2018) fuse diagram.
