Cupra Ateca (2016-2025) fuses and relays. Cupra Ateca (2016-2025) fuse diagram.

In the following post we present the diagrams and locations of the fuse and relay boxes for the Cupra Ateca of the years: 2016-2025. The Cupra Ateca is a sporty compact crossover designed and manufactured by the Spanish brand Cupra, which is a separate sports division of the SEAT Group.

Fuse colors Cupra Ateca

Color	Amps [A]
black	1
purple	3
light brown	5
brown	7.5
red	10
blue	15
yellow	20
white or transparent	25
green	30
orange	40

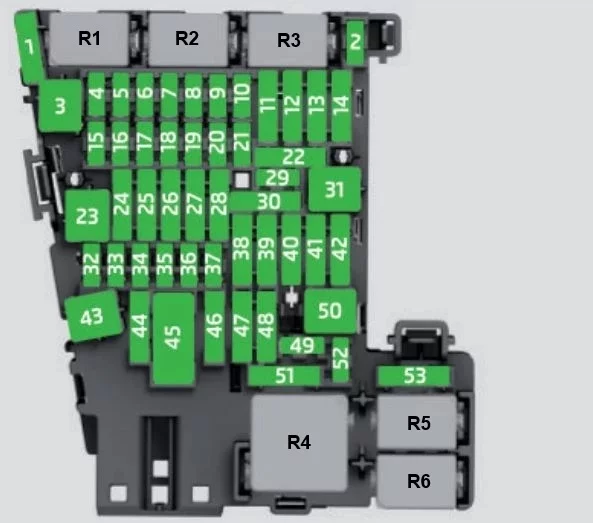

Number	Description and Amps
1	Adblue (SCR)	20
4	Alarm sound signal	7.5
5	Goal	7.5
6	Automatic transmission gear shift lever	7.5
7	Air conditioning and heating control panel;Rear window heating;Additional heater.	10
8	Diagnostics;Electronic parking brake switch;light switch;Reversing light;Interior lighting;Driving mode;Threshold illumination.	7.5
9	Steering column	7.5
10	Radio display	7.5
11	The world on the left	40
12	Radio	20
14	Air conditioning vent	40
15	Steering column lock release	10
16	Connectivity Box	7.5
17	Instrument cluster;Instrument panel.	7.5
18	Reversing camera	7.5
19	Kessy	7.5
20	SCR, engine relay, 1.5	10/15
21	4×4 Haldex clutch control unit	15
22	Trailer	15
23	Electrically operated roof	30
24	Lights on the right side	40
25	Left door	30
26	Heated seats	30
27	Interior lighting	30
28	Trailer	25
31	Trunk Lid Control Module	30
32	Parking assistant control unit, front camera and radar	7.5/10
33	Airbag	7.5
34	Reverse switch, air conditioning sensor;Electrochromic mirror;Rear power ports (USB).	7.5
35	Diagnostics;Headlight control unit;Headlight height adjustment.	7.5
36	Right LED headlight	7.5
37	Left LED headlight	7.5
38	Trailer	25
39	Right door	30
40	12V power socket	20
42	Central locking	40
43	Beats Audio CAN and MOST.	30
44	Trailer	15
45	Electrically adjustable driver’s seat	15
47	Rear window wiper	15
49	Starter;Clutch sensor.	7.5
52	Driving mode.	15
53	Rear window heating	30

Built-in fuse	Amps [A]
Rear Power Sockets	7.5

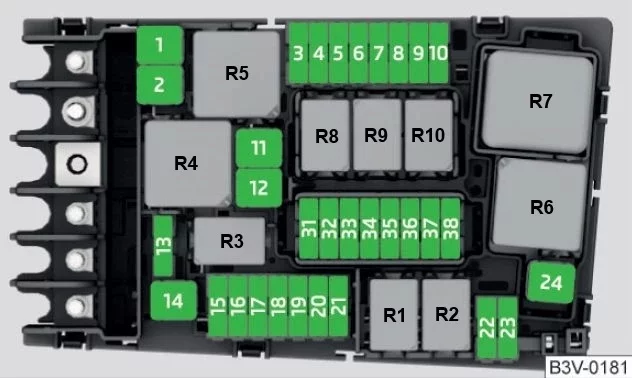

Fuse box in engine compartment Cupra Ateca

Number	Description and Amps
1	ESP control unit	25
2	ESP control unit	40/60
3	Engine control module (diesel/petrol)	30/15
4	Engine sensors	7.5/10
5	Engine sensors	10
6	Brake light sensor	7.5
7	Engine power supply	7.5/10
8	Lambda probe	10/15
9	Engine	10/20
10	Fuel Pump Control Module	15/20
11	PTC	40
12	PTC	40
13	Gearbox pump	15/30
14	Heated windscreen	40
15	Sound signal	15
16	Gasoline pump	20
17	Engine control module	7.5
18	Terminal 30 (positive)	7.5
19	Windshield washer	30
21	Automatic transmission control module	15/30
22	Engine control module	7.5
23	Starter	30
24	PTC	40
31	Pressure pump	15
37	Parking heater	20
