Fuse box diagram (fuse location), location and purpose of fuses Citroen C4 (2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018).
Checking and replacing fuses Citroen C4
The electrical circuits in the car are protected from short circuits by fuses. This greatly reduces the chance of damage due to electrical problems.
To check the fuse, look at the silver strip inside the fuse. If the strip is broken or melted, replace the fuse. Be sure to replace the faulty fuse with a new one of the same size and rating.
Fuses of the same amperage may be temporarily taken from another fuse location if the fuse is blown. Replace the fuse as soon as possible.
Before replacing a fuse:
- the cause of the malfunction must be identified and corrected;
- all electricity consumers must be disconnected;
- the vehicle must be immobilized with the ignition off;
- Identify the faulty fuse using the tables and diagrams on the following pages.
To replace the fuse you need to:
- Use special tweezers to remove the fuse from the housing and check the condition of the filament.
- Always replace a defective fuse with a fuse of the same rating (same colour); Using a fuse of a different rating may cause a malfunction (risk of fire).
- If the fault recurs shortly after replacing the fuse, contact your CITRON dealer or a qualified service center to have the electrical system checked.
Carefully
Replacing a fuse not listed in the tables below may cause serious damage to your vehicle. Contact a CITROËN dealer or a qualified workshop.

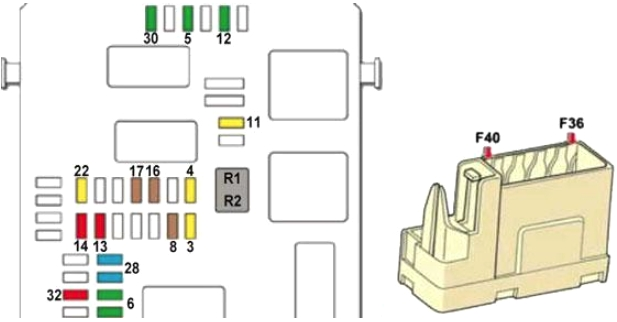

Fuse box on the dashboard Citroen C4

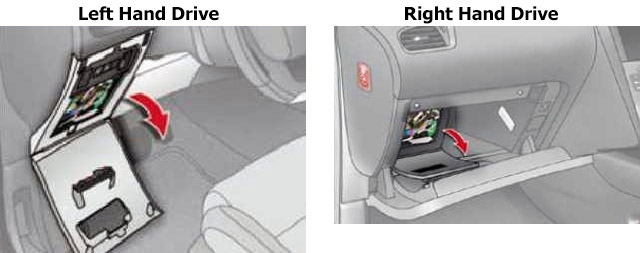

The fuse box is located in the lower instrument panel (on the left side).
| No. | A | Description |
|---|---|---|
| R1 | — | Not used |
| R2 | — | 12V socket in the trunk |
| F3 | 20 | Parking lights, trailer hazard warning lights |
| F4 | 20 | Interior lighting, trailer interface |
| F5 | 30 | One-touch front electric windows |
| F6 | 30 | One-touch rear electric windows |
| F11 | 20 | Trailer socket 12V |
| F12 | 30 | Panoramic sunroof |
| F13 | 30 | Hi-Fi amplifier |
| F22 | 20 | Trailer alarm |
| F8 | 3 | Alarm siren, alarm control unit |
| F13 | 10 | Lighter |
| F14 | 10 | 12V socket in the trunk |
| F16 | 3 | Lighting for large multifunctional storage compartment, rear map reading lamps, glove compartment lighting |
| F17 | 3 | Sun visor illumination, front map reading lamps |
| F28 | 15 | Audio system, radio (after sale) |
| F30 | 20 | Rear wiper |
| F32 | 10 | Hi-Fi amplifier |
| F36 | 15 | Rear 12V socket |
| F37 | — | Not used |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |

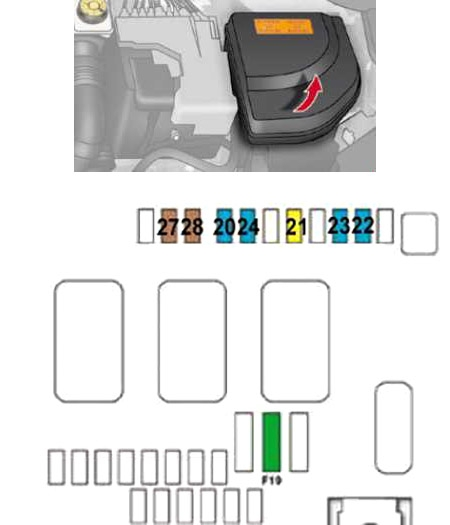

Fuse box in the engine compartment Citroen C4
The fuse box is located in the engine compartment next to the battery (on the left side).
| No. | A | Description |
|---|---|---|
| F19 | 30 | Windscreen wipers slow/high speed |
| F20 | 15 | Front and rear window washer pump |
| F21 | 20 | Headlight washer pump |
| F22 | 15 | Horn |
| F23 | 15 | Right high beam headlight |
| F24 | 15 | Left high beam headlight |
| F27 | 5 | Left low beam headlight |
| F28 | 5 | Right low beam headlight |
