We are considering the second generation of Chevrolet Volt EV 2, the first one was considered here . The article presents diagrams for cars of 2016, 2017, 2018, 2019, 2020, 2021, 2022 release.
Chevrolet Volt EV 2 Cabin Fuses
The mounting block is located at the bottom of the control panel on the driver’s side, below the steering wheel on the left. The block is covered with a protective cover.

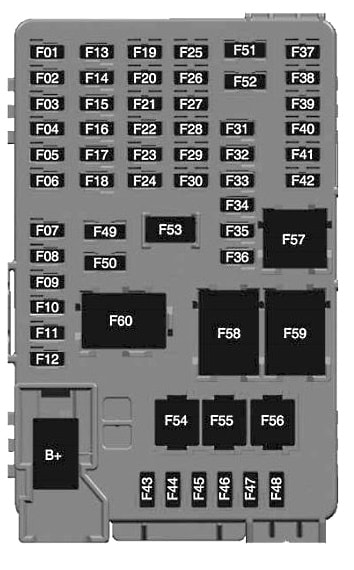

Chevrolet Volt EV 2 Cabin Fuse Box Diagram
Description
| F01 | Video processing module |
| F02 | Solar sensor indicator light |
| F03 | Side Blind Zone Alert |
| F04 | Passive entry, passive start |
| F05 | CGM (Central Gateway Module) |
| F06 | Body control unit 4 |
| F07 | Body Control Module 3 |
| F08 | Body control unit 2 |
| F09 | Body Control Module 1 |
| F10 | 2017-2021: Trailer Interface Module 1 |
| 2022: SSV Police | |
| F11 | Amplifier |
| F12 | Body control unit 8 |
| F13 | Data Channel Connector 1 |
| F14 | Automatic parking assistance |
| F15 | 2017: Data Link Connector 2 |
| 2018-2021: Not used | |
| 2022: Left headlight | |
| F16 | Single Power Inverter Module 1 |
| F17 | Body control unit 6 |
| F18 | Body Control Module 5 |
| F19 | — |
| F20 | — |
| F21 | — |
| F22 | — |
| F23 | USB |
| F24 | Wireless charging module |
| F25 | Reflective LED Alert Display |
| F26 | Heated steering wheel |
| F27 | 2017-2018: Not used |
| 2019-2022: CGM 2 (Central Gateway Module) | |
| F28 | Instrument cluster 2 |
| F29 | 2017-2021: Trailer Interface Module 2 |
| F30 | 2017-2020: Headlight regulator |
| F31 | 2017-2021: OnStar |
| 2022: Telemetry Management Platform (OnStar) | |
| F32 | 2017-2018: Not used |
| 2019-2021: Virtual Access Sensor | |
| F33 | Heating, ventilation and air conditioning module |
| F34 | 2017-2018: Not used |
| 2019-2021: Virtual Access Module | |
| 2022: HVAC display/integrated center console | |
| F35 | Instrument cluster 1 |
| F36 | 2017-2021: Radio |
| 2022: Central Stack Module | |
| F37 | — |
| F38 | — |
| F39 | — |
| F40 | — |
| F41 | — |
| F42 | — |
| F43 | Body Control Module 7 |
| F44 | Sensory and diagnostic module |
| F45 | Front camera module |
| F46 | Vehicle Integration Control Module |
| F47 | One power inverter module 2 |
| F48 | 2017-2020: Electric steering column lock |
| 2022: Right headlight | |
| F49 | Additional jack |
| F50 | Steering wheel controls |
| F51 | 2017-2021: Backlighting of steering wheel buttons |
| F52 | 2017-2020: Smartphone Remote Control Module |
| F53 | Auxiliary socket |
| F54 | — |
| F55 | Logistics |
| F56 | 2022: SSV Police |
| Relay | |
| F57 | 2022: SSV Police |
| F58 | Logistics relay |
| F59 | — |
| F60 | Additional/stored auxiliary power relay |
Fuses and relays under the hood of the Chevrolet Volt EV 2
The mounting block in the underhood space is located on the left side, near the battery. The block is covered with a protective cover, on the inside of the cover there is a diagram with the designation of the elements.

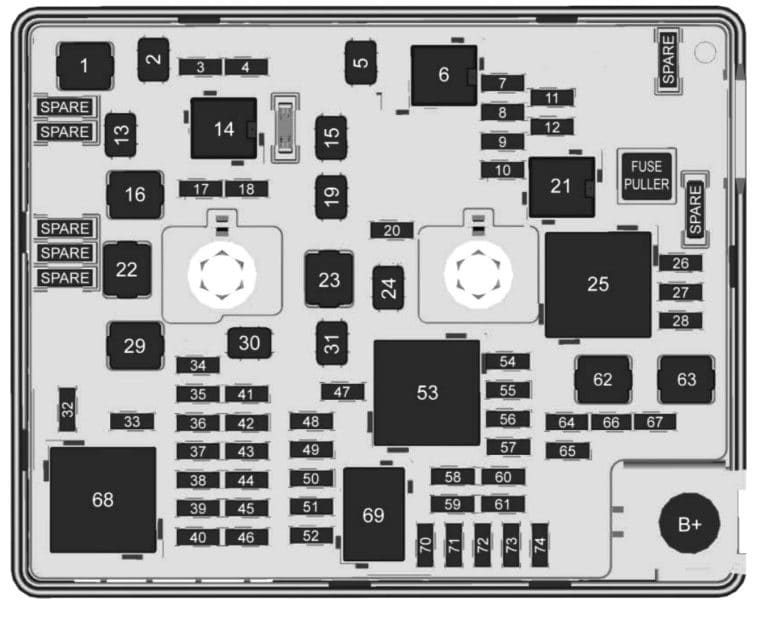

Chevrolet Volt 2 Underhood Fuse and Relay Box Diagram
Description
| 1 | — |
| 2 | Rear window lifter |
| 3 | 2022: Cargo Light |
| 4 | Battery energy storage system 1 |
| 5 | 2022: Driver’s seat with electric adjustment |
| 7 | 2017-2021: Left High Beam Headlight |
| 8 | 2017-2021: Right High Beam Headlight |
| 9 | 2017-2021: Left low beam headlight |
| 10 | 2017-2021: Right low beam headlight |
| 11 | Signal |
| 12 | — |
| 13 | Front wiper motor driver |
| 15 | Second driver of the front wiper motor |
| 16 | Electronic power supply unit of the brake control unit |
| 17 | Rear wiper |
| 18 | Back door |
| 19 | Front seat module |
| 20 | Washer |
| 22 | Linear Power Module |
| 23 | Brake Control Module Power Motor |
| 24 | Rear seat module |
| 26 | Transmission Range Control Module |
| 27 | Aeroseal |
| 28 | Auxiliary oil pump |
| 29 | Electric Brake Booster Source |
| 30 | Front electric windows |
| 31 | In-panel busbar electrical center |
| 32 | Rear window heating |
| 33 | Heated outside rear view mirror |
| 34 | Pedestrian alert function |
| 35 | — |
| 36 | — |
| 37 | Current sensor |
| 38 | 2017-2021: Rain sensor |
| 2022: Humidity sensor | |
| 39 | — |
| 40 | Electric Brake Unit (ECU) |
| 41 | Power Line Communication Module |
| 42 | Automatic (infant) presence detection |
| 43 | Window switch |
| 44 | Battery energy storage system |
| 45 | Vehicle Integration Control Module |
| 46 | 2017-2021: Integrated Chassis Control Module |
| 2022: Gear Shift Interface Board | |
| 47 | 2017-2020: Headlight adjustment |
| 2022: Humidity sensor | |
| 48 | 2017-2021: Integrated Chassis Control Module |
| 2022: Gear Shift Interface Board | |
| 49 | Interior rear view mirror |
| 50 | — |
| 51 | Electric brake booster |
| 52 | 2017-2020: Rear camera |
| 54 | Air Conditioning Control Module |
| 55 | Rechargeable Energy Storage System Coolant Pump |
| 56 | — |
| 57 | Power Electronics Coolant Pump |
| 58 | Engine Control Module |
| 59 | 2017-2020: Electric steering column lock |
| 60 | Electric HVAC Heater |
| 61 | Built-in charging module |
| 62 | Gear Range Control Module 1 |
| 63 | Electric cooling fan |
| 64 | Engine Control Module |
| 65 | Additional heater pump |
| 66 | Power unit |
| 67 | Drive controller |
| 70 | Air Conditioning Control Module |
| 71 | — |
| 72 | Transmission Range Control Module |
| 73 | Single Power Inverter Module |
| 74 | — |
| Relay | |
| 6 | 2017-2019: Not used |
| 2020-2022: Pedestrian Alert Function | |
| 14 | Back door |
| 21 | 2017-2021: gas discharge lamp |
| 25 | Power unit |
| 53 | Start/start |
| 68 | Rear window heating |
| 69 | Second launch |
