Toyota Land Cruiser Prado 150 is a mid-size SUV that has been produced in 4 generations to the present. In this article, we will show a description of the fuses and relays of the Toyota Land Cruiser Prado 150 with block diagrams and their locations for cars manufactured in 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021.
This model has been restyling several times, so the assignment of elements in the blocks may differ from the one presented. Check the assignment of elements with your diagrams on the block cover.
Cabin block Toyota Land Cruiser Prado 150
The main fuse box in the cabin is located under the instrument panel.

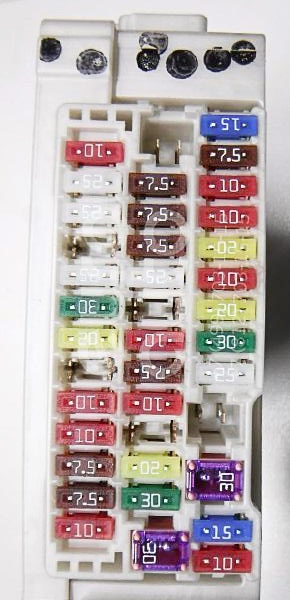

Photo example of execution

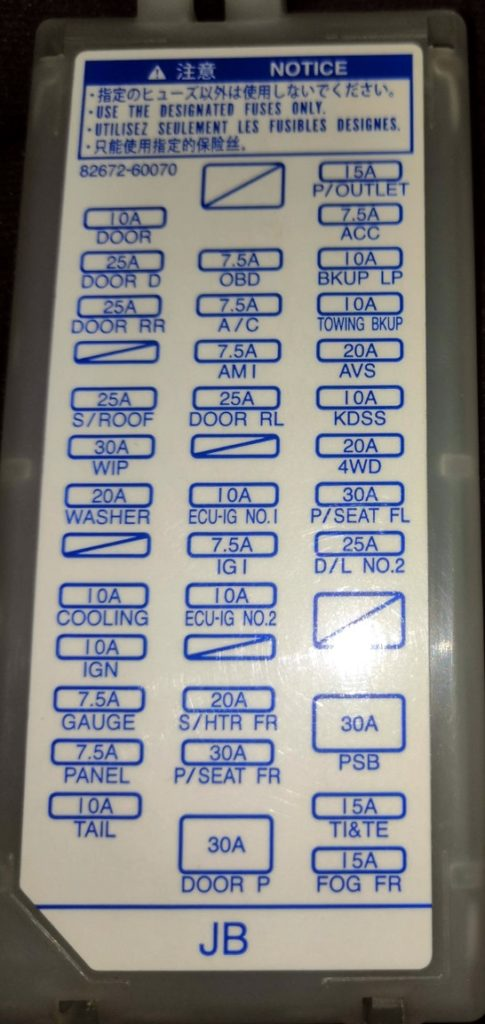

Block cover diagram

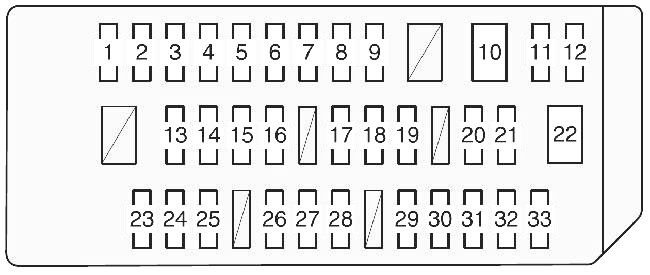

Scheme
Description
| 1 | 15A P/OUTLET – Electrical socket |
| 2 | 7.5A ACC – Exterior mirror motor. BODY ECU, air conditioning system, audio system, navigation system, parking assist system, sequential switch, backup rip, DSS#2 ECU, AT indicator EFI ECU, gear shift lock ECU |
| 3 | 10A BKUP LP – Reverse lights, audio system, multifunction display, DSS#2 ECU, parking assist sensor |
| 4 | 10A TOWING BKLP – Towing |
| 5 | 20A AVS – Air Suspension System |
| 6 | 10A KDSS ECU |
| 7 | 20A 4WD – 4WD system. rear differential lock |
| 8 | 30A P/SEAT FL – Power front seat (left) |
| 9 | 25A – Door lock motor, sunroof opener, BODY ECU |
| 10 | 30A PSB ECU |
| 11 | 15A TI & TE – Steering wheel tilt and reach adjustment |
| 12 | 15A FOG FR – Fog lights |
| 13 | 7.5A OBD – Diagnostic connector |
| 14 | 7.5A A/C – Air conditioning system |
| 15 | 7.5A AM1 – Starting System |
| 16 | 25A DOOR RL – Rear window power windows (left) |
| 17 | 10A ECU-IG NO.1 – Gear shift lock ECU, VSC ECU, steering sensor, yaw rate sensor, sequential switch, automatic wiper ECU, backup relay, heated outside rearview mirror, steering column tilt and reach adjustment, PSB ECU, DSS#1 ECU, front radar sensor, power steering ECU, AFS ECU |
| 18 | 7.5A IG1 – Front turn signal, rear turn signal, side turn signal, turn signal repeater, trailer light, ALT, VSC, C/C switch |
| 19 | 10A ECU-IG NO.2 – Rear window heater, seat heater switch, inverter relay, air conditioning system, EU mirror, BODY ECU, auxiliary heater switch, navigation system, DSS#2 ECU, sunroof ECU, instrument switch, parking assist sensor, auxiliary instruments, folding seat ECU, O/H IG, anti-icing device, AFS ECU, D-module, rain sensor, air suspension P/SEAT IND |
| 20 | 20A S/HTR FR – Seat heater |
| 21 | 30A P/SEAT FR – Power front seat (right) |
| 22 | 30A DOOR P – Front window power window (passenger side) |
| 23 | 10A DOOR – Electric window lifter |
| 24 | 25A DOOR D – Front window power window (driver’s side) |
| 25 | 25A DOOR RR – Rear window power windows (right) |
| 26 | 25A S/ROOF – Roof hatch |
| 27 | 30A WIP – Windshield Wipers and Washers |
| 28 | 20A WASHER – Windshield wipers and washers, rear window wipers and washers |
| 29 | 10A COOLING – Cooled compartment |
| 30 | 10A IGN – EFI ECU, C/OPN RLV, VSC ECU, Airbag ECU, Smart Entry & Start System, Steering Lock ECU. CAN Gateway ECU |
| 31 | 7.5A GAUGE – Instruments |
| 32 | 7.5A PANEL – Switch illumination, glove box illumination, navigation system, audio system, air conditioning system, exterior mirror switch, seat folding switch, multifunction display. P/SEAT IND, SHIFT, COOL BOX |
| 33 | 10A TAIL – Front marker lights, tail lights, license plate lights, EFI ECU, rear fog lights, towing, front fog lights |
Fuse number 1 at 15A is responsible for the cigarette lighter.

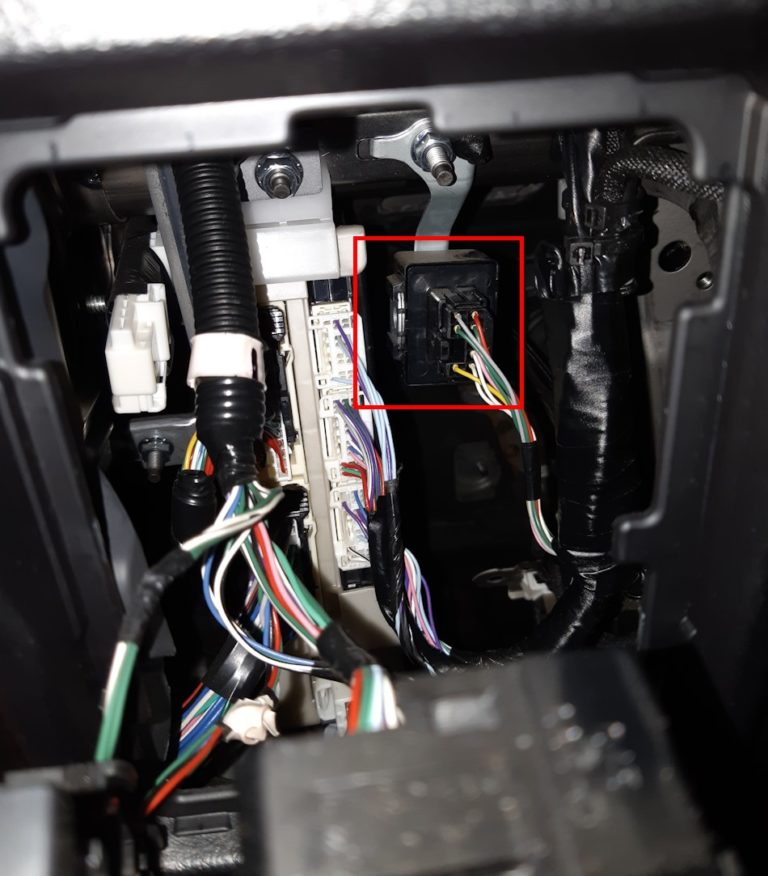

Some relays, such as turn signal relays, may be mounted next to these blocks.

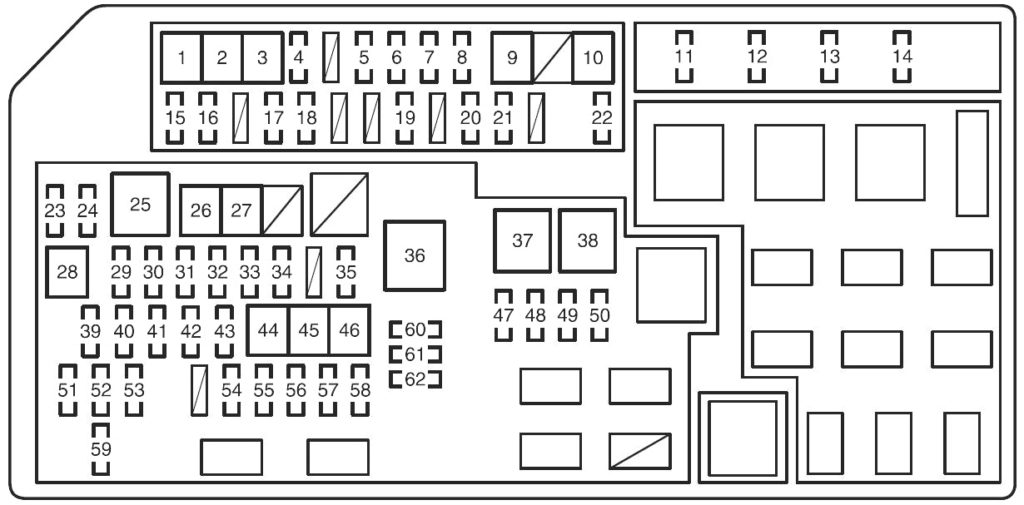

Block under the hood Toyota Land Cruiser Prado 150

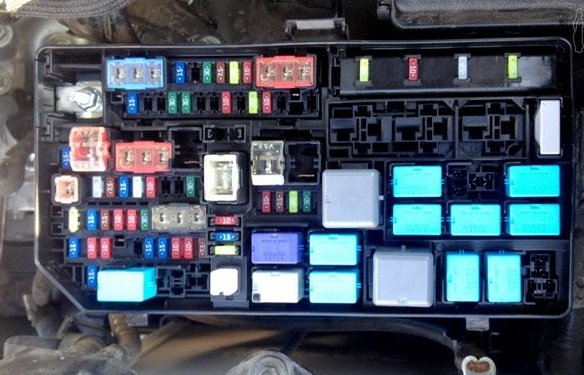

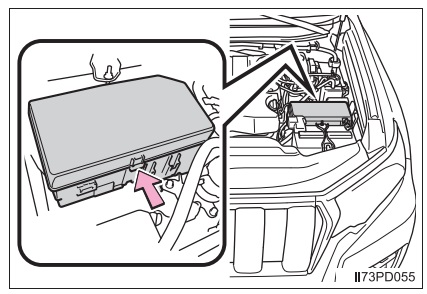

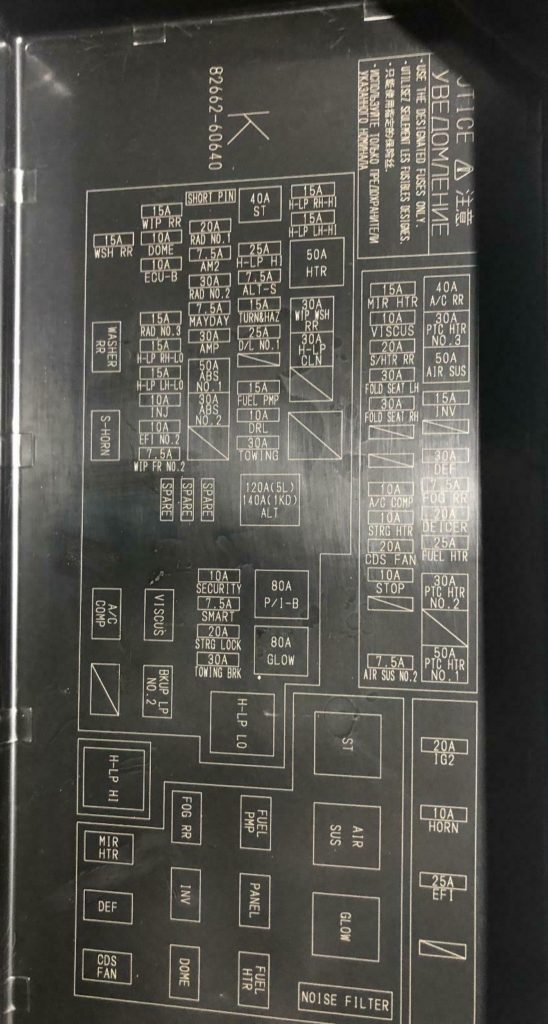

The main fuse and relay block is located next to the battery.
| 1 | 40A A/C RR – Rear air conditioning system |
| 2 | 30A PTC HTR NO.3 – PTC Heater |
| 3 | 50A AIR SUS – Air suspension system, AIR SUS N0.2 |
| 4 | 15A NV – Inverter |
| 5 | 30A DEF – Heated rear window |
| 6 | 7.5A FOG RR – Rear fog lights |
| 7 | 20A DEICER – Wiper deicer |
| 8 | 25A FUEL HTR*1 – Fuel heater |
| 8 | 10A AIR PUMP HTR*2 – Air heater |
| 9 | 30A PTC HTR NO 2 – PTC Heater |
| 10 | 50A PTC HTR NO 1 – PTC Heater |
| 11 | 20A IG2 – Injector, ignition, instruments |
| 12 | 10A HORN – Sound signal |
| 13 | 25A EFI ECU, EDU, EAT, ECU. Fuel pump, A/F heater relay, FPC, EFI N0.2 |
| 14 | 20A A/F*3 – A/F SSR |
| 15 | 15A MIR HTR – Mirror heater |
| 16 | 10A VISCUS*1 – VISC heater |
| 17 | 30A FOLD SEAT LH – Folding seat (left) |
| 18 | 30A FOLD SEAT RH – Folding seat (right) |
| 19 | 10A A/C COMP – Air conditioning system |
| 20 | 20A CDS FAN – Condenser fan |
| 21 | 10A STOP – Emergency stop relay, brake lights, high brake light, brake light switch, VSC/ABS ECU, towing, smart entry and start system, ECT ECU |
| 22 | 7.5A AIR SUS N0.2 – AIR SUS ECU |
| 23 | 15A H-LP RH-HI – High beam headlight (right headlight) |
| 24 | 15A H-LP LH-HI – High beam headlight (left headlight) |
| 25 | 50A HTR – Air conditioning system |
| 26 | 30A WIP WSH RR – Wipers and rear window washer |
| 27 | 30A H-LP CLN – Headlight Cleaner |
| 28 | 30/40A STARTER MTR – Starter |
| 29 | 25A H-LP HI – DIM relay, headlights |
| 30 | 7.5A ALT – Charging system |
| 31 | 15A TURN&HAZ – Front turn signal, rear turn signal, side turn signal, instrument turn signal, trailer signal |
| 32 | 25A D/L N0.1 – Door lock motor, glass hatch opener |
| 33 | 10A ETCS*3 – EFI ECU |
| 34 | 15A FUEL PMP*5 – Fuel pump |
| 35 | 30A TOWING – Towing |
| 36 | 140/120 ALT – Air conditioning system, AIR SUS, headlight cleaner, RTS heater, towing, folding seat, STOP, heated rear window, MIR HTR RR WIP, RR WSH |
| 37 | 80A P/lB – Injector, ignition, instruments. EFI, A/F heater, horn |
| 38 | 80A GLOW*4 – Glow plug |
| 39 | 15A RAD N0.1 – Audio system, navigation system, rear passenger entertainment system |
| 40 | 7.5A AM2 – Starting System |
| 41 | 10A RAD N0.2 – navigation system |
| 42 | 7.5A MAYDAY*8 |
| 43 | 30A AMP – Audio system |
| 44 | 50A ABS, VSC |
| 45 | 30A ABS, VSC |
| 46 | 50A AIR РМP*3 – Air blower |
| 47 | 10A SECURITY – Security system sound signal, self-powered siren, ECU double locking system |
| 48 | 7.5A SMART – Intelligent entry and start system |
| 49 | 20A STRG LOCK – Steering lock system |
| 50 | 30A TOWING ВRK – Towing |
| 51 | 15A WIP RR – Rear Wiper |
| 52 | 10A DOME – Interior lighting, personal lighting, individual mirror lighting, door sill lights, footwell lighting, exterior sill lighting, ceiling module |
| 53 | 10A ECU-B – BODY ECU. instruments, heater, steering wheel sensor, remote control, seat memory, steering column tilt and length adjustment, multi-function display, smart entry and start system, folding seat, cooled compartment, DSS№2 ECU, steering wheel switch -module, ceiling module |
| 54 | 15A H-LP RH-LO – Low beam headlight (right), headlight range adjustment system |
| 55 | 15A H-LP LH-LO – Low beam headlight (left) |
| 56 | 10A INJ – solenoid, injector, ignition, ECU, noise suppression filter |
| 57 | 10A EFI NO.2 – O2 SSR, AFM, ACIS VSV, AL COMB, EYP VSV, Al DRIVER, EGR VRV, SWIRL VSV, SWIRL VSV 2, E/G CUT VSV, EGR COOL BYPASS VSV, D-SLOT ROTARY SOL, Al VSV RLY |
| 58 | 7,5A WIP FR NO.2 – DSS#1 ECU |
| 59 | 15A WSH RR – Rear window washer |
| 60 | Spare fuse |
| 61 | Spare fuse |
| 62 | Spare fuse |
Separately, at the end, some fuses can be installed:
- 20A IG2 – Smart System
- 10A HORN – Signal
- 25A EFI – adaptive cruise control, automatic transmission control system, engine management system
- 20A EFI MAIN – adaptive cruise control, automatic transmission control system, engine control system
Relay designation Toyota Land Cruiser Prado 150
| WASHER RR | rear window washer relay |
| S-HORN | horn relay |
| A/C COMP | air conditioner compressor relay |
| MISTLETOE | viscous heater relay |
| BKUP LP | headlight tail light relay |
| H-LP HI | headlight high beam relay |
| H-LP LO | low beam headlight relay |
| MIR HTR | mirror heating relay |
| DEF | rear window heater relay |
| CDS FAN | condenser fan motor relay |
| FOG RR | rear fog light relay |
| FUEL PUMP | fuel pump relay |
| PANEL | dashboard relay |
| FUEL HTR | fuel heating relay |
| INV | inverter relay |
| DOME | interior lighting relay |
| ST | starter relay |
| AIR SUS | relay systems AHC |
| GLOW | glow plug relay |

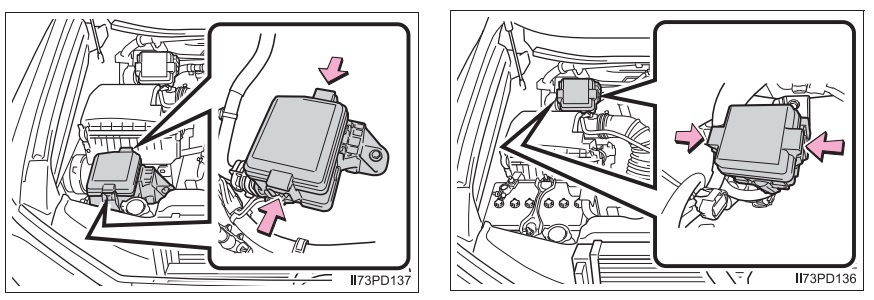

There may be additional fuse blocks in another part of the engine compartment.
Protection elements responsible for the heater and others can be installed there.

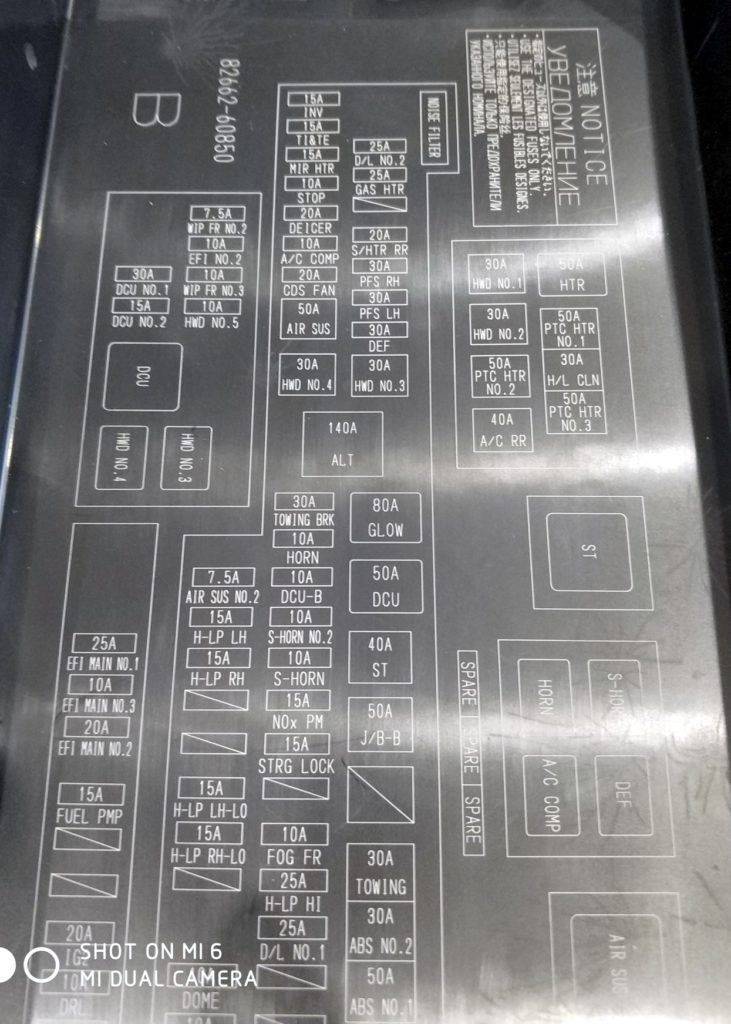

In models from 2018, the block diagram is different.
